Overview

HW-RTOS is a hardware real-time OS. HW-RTOS realizes excellent real-time performance with low overhead compared to conventional software RTOS implementations. It supports semaphore, event flags, and about 30 other standard APIs, and enables fast, consistent execution time and interrupt response. This enables a worst-case execution time to be specified, which facilitates the design of real-time systems.

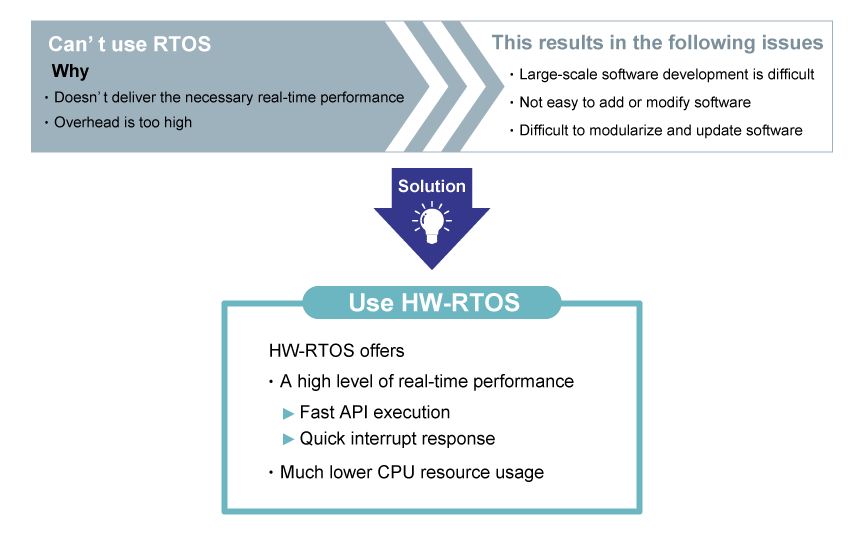

Challenges in Real-time Embedded Systems

Video Tutorials

Learn more about HW-RTOS from these tutorials:

  1. Benefit of Hardware RTOS (1/3) - Introduction
  2. Benefit of Hardware RTOS (2/3) - Functions and performance
  3. Benefit of Hardware RTOS (3/3) - Next Generation

Learn about basics of conventional software-based real-time OS:

  1. Why RTOS is required?
  2. Task, handler and API
  3. Semaphore and event flag
  4. Architecture and Performance of RTOS
  5. RTOS for Multi-core systems

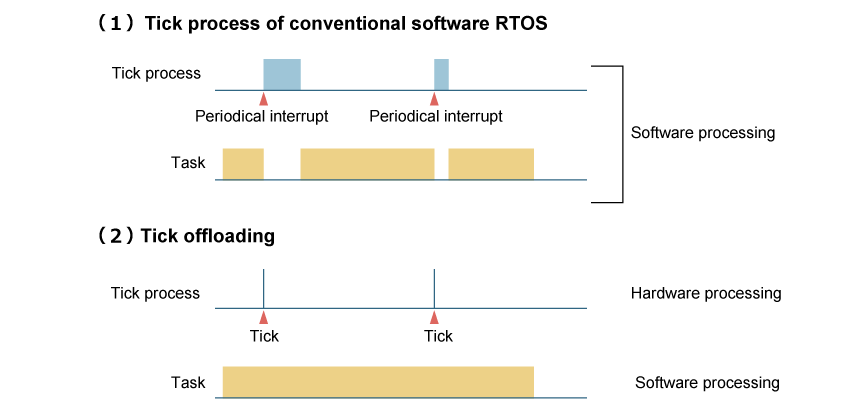

HW-RTOS Tick Offloading
HW-RTOS Tickオフローディング

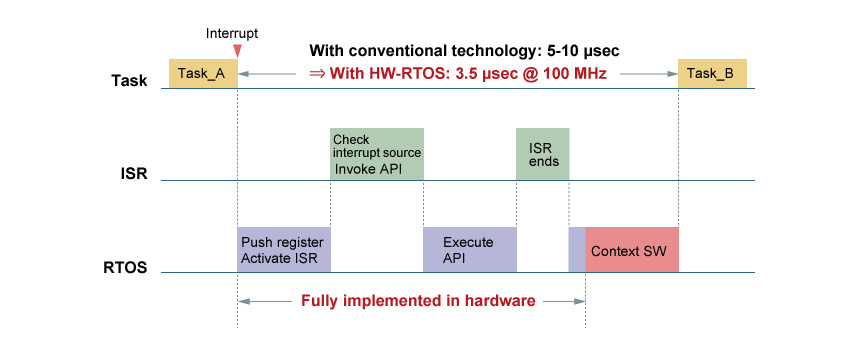

HW-RTOS HW ISR
HW-RTOS HW ISR (ハードウェアISR)
HW-RTOS Tick Offloading
HW-RTOS Tickオフローディング
HW-RTOS HW ISR
HW-RTOS HW ISR (ハードウェアISR)
  • Fast API Execution
  • Quick Interrupt Response
  • Reduced RTOS Overhead
  • World's top RTOS Performance
  • Tick Offloading
  • HW ISR (Hardware Interrupt Service Routine)
  • Small Footprint

Additional Details

Renesas Devices Equipped with HW-RTOS

ProductDescription
RZ/N1DCortex®-A7(Dual) + Cortex®-M3 4p GbE Switch +1 MAC EtherCAT Slave Controller Sercos
RZ/N1SCortex®-A7 + Cortex®-M3 4p GbE Switch +1 MAC EtherCAT Slave Controller Sercos
RZ/N1LCortex®-M3 4p GbE Switch +1 MAC EtherCAT Slave Controller Sercos
RZ/T1Cortex®-R4 Processor with FPU + Cortex®-M3 2p Ether Switch + 1 MAC EtherCAT Slave Controller* (*Option)
R-IN32M3-ECCortex®-M3 2p Ether Switch On chip PHY EtherCAT Slave Controller
R-IN32M3-CLCortex®-M3 2p GbE Switch CC-Link IE Field Controller
R-IN32M3-CL2Cortex®-M4 Processor with FPU 2p GbE Switch On chip GbE PHY CC-Link IE Field Controller
