Overview
Description
The PC7501 emulator has full bus trace and is available for in-circuit emulation in system designed around the M16C Platform of processors. This compact unit is capable of emulation up to 66MHz (i.e., available at over 20MHz) and has many other enhancements of the conventional PC4701U.
Features
- Components [Learn More]
- System Configuration [Learn More]
- Applicable Debugger (Bundled) and Emulation Probe (Sold separately) [Learn More]
- Set Packages [Learn More]
- Latest Version of Emulator Firmware and MCU Files [Learn More]
- Learn More
Release Information
PC7501 Emulator Debugger (Supported IDE: High-performance Embedded Workshop）
PC7501 Emulator Debugger for M32C Series
Latest Ver.: V.1.03 Release 00
Released: Jul 1, 2007
PC7501 Emulator Debugger for M16C/60,30,20,10, M16C/Tiny and R8C/Tiny Series
Latest Ver.: V.1.03 Release 00
Released: Jul 1, 2007
Details of upgrade (See Tool News)
Target Devices
Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Upgrade - IDE | ZIP 14.57 MB 日本語 | |
| Upgrade - IDE | ZIP 66.81 MB 日本語 | |
| Upgrade - Debugger | EXE 78.98 MB 日本語 | |
| Upgrade - Debugger | EXE 77.44 MB 日本語 | |
| Software & Tools - Other | EXE 3.14 MB 日本語 | |
| Upgrade - Debugger | EXE 10.42 MB 日本語 | |
| Upgrade - Debugger | EXE 10.44 MB 日本語 | |
7 items
|
||
Additional Details
Components
- Emulator main unit (PC7501)
- AC adapter (100-240V, 50/60Hz)
- AC power cable (3m)
- LPT parallel interface cable (1.9 m, IEEE 1284-A male to IEEE 1284-C male cable)
- USB interface cable (1.9 m)
- External trigger input/ event output cable (50cm)
- 160-wire flexible cable for connection with emulation probe (M3T-FLX160C)
- Converter board for connection with emulation probe (M3T-FLX160-EPB)
- User's manual
- CD-ROM (Emulator debugger etc.)
Note: An Ethernet cable for LAN is not packaged and is not available as an option.

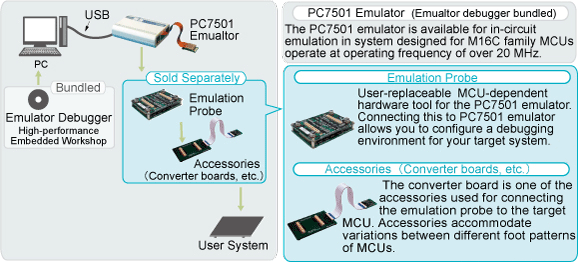

System Configuration
To find out the required emulation probe and accessories for your target device, see "Applicable Debugger and Emulation Probe" below.
Applicable Debugger (Bundled) and Emulation Probe (Sold separately)
The supported MCUs of the PC7501 and the bundled emulator debuggers are as follows.
Support for this product is limited to customers who have already adopted these products.
| Target MCUs | Emulator debugger (Come with PC7501) | Emulation probe (Sold Separately) + Dedicated board (Sold Separately) | Accessories (Converter boards, etc.) (Sold Separately) | |
|---|---|---|---|---|
| Series | Group | |||
| M32C/80 | M32C/81, M32C/82, M32C/83 | M32C PC7501 Emulator DebuggerNote1 | M30830T-EPB (Discontinued product) | See User's Manual |
| M32C/80, M32C/84, M32C/85, M32C/86, M32C/8A | M30850T2-EPB | See User's Manual | ||
| M32C/87 | M30870T-EPB (Discontinued product) | See User's Manual | ||
| M32C/88 | M30880T-EPB | See User's Manual | ||
| M32C/8B** | R0E3308B0EPB00 | See User's Manual | ||
| M16C/60 | M16C/62P | M16C R8C PC7501 Emulator DebuggerNote2 | M3062PT2-EPB | See User's Manual |
| M16C/6V(M306V8) | M306V8T-EPB | - | ||
| M16C/6N (M16C/6N4,M16C/6N5, M16C/6NK,M16C/6NL, M16C/6NM,M16C/6NN) | M306NKT-EPB | See User's Manual | ||
| M16C/6S (M306S0) | M3062PT2-EPB + M306S0T-PRB | See User's Manual | ||
| M16C/30 | M16C/30P | M3062PT2-EPB | See User's Manual | |
| M16C/Tiny | M16C/26 (M30262) | M3062PT2-EPB + M30262T-PTC | See User's Manual | |
| M16C/26A M16C/28 M16C/29 | M3028BT-EPB + Converter board | See User's Manual | ||
| R8C/Tiny | R8C/10 - R8C/17 R8C/18, 19 R8C/1A -R8C/1B R8C/20 - R8C/29 R8C/2A -R8C/2D R8C/2K, R8C/2L | R0E521000EPB00 + Converter board | See User's Manual | |
Notes:
- The successor of M3T-PD308F (Discontinued product).
- The successor of M3T-PD30F (Discontinued product).
Set Packages
*Set packages are no longer available.
M3028BT-EPB
| Supported MCU Group | Package Type | Set Package Name | Components | |
|---|---|---|---|---|
| Emulation probe (Also available alone.) | Converter board Note1 (Also available alone.) | |||
| M16C/26A | 42-pin 0.8mm-pitch SSOP | M3028BT-EPB-1 | M3028BT-EPB Note2 | M30263T-42SSB User's Manual (PDF | English, 日本語) |
| 48-pin 0.5mm-pitch LQFP | M3028BT-EPB-2 | M30260T-48FPD User's Manual (PDF | English, 日本語) | ||
| M16C/28 | 64-pin 0.5mm-pitch LQFP | M3028BT-EPB-3 | M30291T-64FPD User's Manual (PDF | English, 日本語) | |
| 80-pin 0.5mm-pitch LQFP | M3028BT-EPB-4 | M30290T-80FPD User's Manual (PDF | English, 日本語) | ||
| 85-pin 0.65mm-pitchT FLGA | M3028BT-EPB-5 | M30280T-85LGF User's Manual (PDF | English, 日本語) | ||
| M16C/29 | 64-pin 0.5mm-pitch LQFP | M3028BT-EPB-3 | M30291T-64FPD User's Manual (PDF | English, 日本語) | |
| 80-pin 0.5mm-pitch LQFP | M3028BT-EPB-4 | M30290T-80FPD User's Manual (PDF | English, 日本語) | ||
Notes:
- Includes a converter board, connecting sockets, and user's manual.
- User-replaceable MCU board available. M3028BT-EPBM : Maintenance part for M3028BT-EPB for M16C/Tiny Series M16C/26A, M16C/28, M16C/29 Group.
R0E521000EPB00
| Supported MCU | Set Package Name | Components | ||
|---|---|---|---|---|
| Group | Package | Compact emulator (Also available separately.) | Converter board Note1 (Also available separately.) | |
| R8C/10 R8C/11 R8C/12 R8C/13 | PLQP0032GB-A *Previous code : 32P6U-A (32-pin 0.8mm-pitch LQFP) | R0E521134EPB00 | R0E521000EPB00 | R0E521134CFG00 Users Manual (Converter Board for 32-pin 0.8mm pitch LQFP) (PDF | English, 日本語) |
| R8C/14 R8C/15 R8C/16 R8C/17 | PLSP0020JB-A *Previous code : 20P2F-A (20-pin 0.65mm-pitch LSSOP) | R0E521174EPB00 | R0E521174CSJ00 Users Manual (Converter Board for 20-pin 0.65mm pitch LSSOP) (PDF | English, 日本語) | |
| R8C/18 R8C/19 R8C/1A R8C/1B | PLSP0020JB-A *Previous code : 20P2F-A (20-pin 0.65mm-pitch LSSOP) | R0E521174EPB00 | R0E521174CSJ00 Users Manual (Converter Board for 20-pin 0.65mm pitch LSSOP) (PDF | English, 日本語) | |
| PRDP0020BA-A *Previous code : 20P4B (20-pin 1.778mm-pitch SDIP) | R0E521174EPB10 | R0E521174CDB00 Users Manual (Converter Board for 20-pin 1.778mm pitch SDIP) (PDF | English, 日本語) | ||
| R8C/20 R8C/21 R8C/22 R8C/23 | PLQP0048KB-A *Previous code : 48P6Q-A (48-pin 0.5mm-pitch LQFP) | R0E521237EPB00 | R0E521237CFK00 Users Manual (Converter Board for 48-pin 0.5mm pitch LQFP) (PDF | English, 日本語) | |
| R8C/24 R8C/25 | PLQP0052JA-A *Previous code : 52P6A-A (52-pin 0.65mm-pitch LQFP) | R0E521258EPB00 | R0E521258CFJ00 Users Manual (Converter Board for 52-pin 0.65mm pitch LQFP) (PDF | English, 日本語) | |
| R8C/26 R8C/27 | PLQP0032GB-A *Previous code : 32P6U-A (32-pin 0.8mm-pitch LQFP) | R0E521276EPB00 | R0E521276CFG00 Users Manual (Converter Board for 32-pin 0.8mm pitch LQFP) (PDF | English, 日本語) | |
| R8C/28 R8C/29 | PLSP0020JB-A *Previous code : 20P2F-A (20-pin 0.65mm-pitch LSSOP) | R0E521174EPB00 | R0E521174CSJ00 Users Manual (Converter Board for 20-pin 0.65mm pitch LSSOP) (PDF | English, 日本語) | |
| R8C/2A R8C/2B | PLQP0064GA-A *Previous code : 64P6U-A (64-pin 0.8mm-pitch LQFP) | R0E5212BAEPB00 | R0E5212BACFG00 Users Manual (Converter Board for 64-pin 0.8mm pitch LQFP) (PDF | English, 日本語) | |
| PLQP0064KB-A *Previous code : 64P6Q-A (64-pin 0.5mm-pitch LQFP) | R0E5212BAEPB10 | R0E5212BACFK00 Users Manual (Converter Board for 64-pin 0.5mm pitch LQFP) (PDF | English, 日本語) | ||
| R8C/2C R8C/2D | PLQP0080KB-A *Previous code : 80P6Q-A (80-pin 0.5mm-pitch LQFP) | R0E5212DAEPB00 | R0E5212DACFK00 Users Manual (Converter Board for 80-pin 0.5mm pitch LQFP) (PDF | English, 日本語) | |
| R8C/2K R8C/2L | PLQP0032GB-A *Previous code : 32P6U-A (32-pin 0.8mm-pitch LQFP) | R0E5212L4EPB00 | R0E5212L4CFG00 Use's Manual (Converter Board for 32-pin 0.8mm pitch LQFP) (PDF | English, 日本語) | |
Note:
- Includes a converter board, connecting sockets, and user's manual.
Latest Version of Emulator Firmware and MCU Files
Download and execute the firmware file and MCU file.
| Emulation probe | Target MCU | MCU files / Firmware files | Released date | Notes |
|---|---|---|---|---|
| M30870T-EPB (Discontinued product) | M32C/87 | Download | Aug. 1, 2007 | Download file is differ between "PC7501 Emulator Debugger for M32C Series" and " M3T-PD308F" |
| M30850T2-EPB | M32C/80 M32C/84 M32C/85 M32C/86 M32C/8A | Download | ||
| In case using emulation probe other than those above: Upgrading a debugger of your emulator to the latest version also upgrades the firmware file. | ||||
