Overview
Description
This product is a C compiler package for 740 Family MCU. The powerful optimizations offer the ultimate in execution speed and code efficiency, and the utilities increase productivity.
Future functional extension or problem fixes are not planned.
Features
- ISO/ANSI standard C compiler.
- Built-in advanced 740 Family-specific optimizer and C extensions.
- Various pseudo-instructions and operators
- Supports a wide range of industry-standard object formats (e.g., IEEE695) making it compatible with the M38000T2-CPE compact emulator.
- The librarian creates and maintains libraries and library modules.
- Renesas simulator debugger included.
- Learn More
Release Information
Latest Ver.: V.1.01 Release 02
Released: Jun 16, 2007
Details of upgrade (See Tool News)
Standard life cycle of Compilers (PDF | English, 日本語)
Target Devices
Downloads
|
|
|
---|---|---|
Type | Title | Date |
Upgrade - IDE | ZIP 14.57 MB 日本語 | |
Upgrade - IDE | ZIP 66.81 MB 日本語 | |
Upgrade - Compiler | ZIP 96.91 MB 日本語 | |
Upgrade - Debugger | EXE 5.08 MB 日本語 | |
Upgrade - IDE | EXE 4.15 MB 日本語 | |
5 items
|
Additional Details
Components
- C compiler for Renesas 740 Family: ICC740
- ICC740 IAR ANSI C Compiler
- A740 IAR Assembler
- CLIB IAR C runtime library
- XLINK IAR Linker
- XLIB IAR Librarian
- PDF manual
- Help file
- Integrated development environment (IDE): High-performance Embedded Workshop

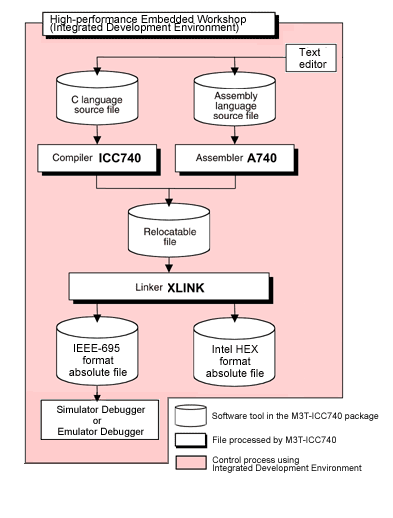

Processing Flow
- C compiler : ICC740
- Optimizing ANSI C compiler with extensions for embedded systems. ICC740 includes the A740 assembler.
[Note] The ICC740 is NOT compatible with the assembler package M3T-SRA74. (Source files for M3T-SRA74 cannot be assembled by the assembler A740 of the M3T-ICC740 package. And M3T-ICC740 cannot link M3T-SRA74-generated relocatable files.) - Simulator debugger
- Provides source level debugging capability in targetless system-level.
- IDE (Integrated development environment): High-performance Embedded Workshop and TM
- Provides seamless integration and easy access to all tools for coding, compiling, linking, and debugging. It greatly increases productivity.
