Overview
Description

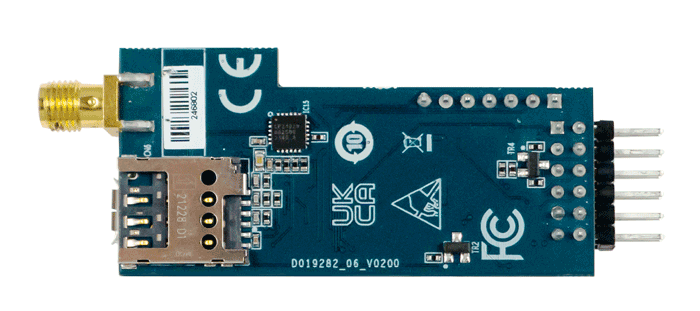

The PMOD Expansion Board for RYZ024A provides an entry point for the evaluation and development of the RYZ024A. The PMOD Expansion Board is an easy connection to Renesas MCU kits via the PMOD interface. And the PMOD Expansion Board can be controlled through the UART interface.
Product Contents
The following components are included.
- PMOD™ Expansion Board for RYZ024A
- LTE Antenna (Taoglas: GSA.8830.A.201111) (SMA Male termination)
- MVNO SIM Card
Features
- Wireless module
- o LTE Cat-M1 Cellular IoT Module RYZ024A (RYZ024A000FZ00#HD0)
- PMOD™ interface
- Easy connection to Renesas MCU kits via PMOD (UART)
- USB interface
- Can be used for various interfaces
- Antenna interface
- Can be used for various external antennas
- Control software
- Supported by the RA MCU family’s Flexible Software Package (FSP)
- Driver for RX MCUs available
Applications
Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Application Note | PDF 4.48 MB 日本語 | |
| Application Note | PDF 2.41 MB 日本語 | |
| Application Note | PDF 3.25 MB 日本語 | |
| Quick Start Guide | PDF 3.06 MB | |
| Quick Start Guide | PDF 2.98 MB | |
| Manual - Hardware | PDF 4.33 MB | |
| Quick Start Guide | PDF 720 KB | |
| Quick Start Guide | PDF 801 KB | |
| Application Note | PDF 1.45 MB | |
9 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RA Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
2 items
|
||
Sample Code
Processing table
RTKYZ024A0B00000BE NRND |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
RL78 Family LTE CAT-M1 MQTT Communication Solution
This video will show the steps to operate MQTT communication for send and receive (Publish/Subscribe) via MQTT Broker in an LTE CAT-M1 cellular communication with sample software in the application note.
The evaluation environment uses Renesas' RL78/G22 Fast Prototyping Board and PMOD Expansion Board for RYZ024A.
