Evaluation Kit for RA2A1 MCU Group
The EK-RA2A1 evaluation kit enables users to effortlessly evaluate the features of the RA2A1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Overview
Description
download Download Latest FSP (v5.6.0):
FSP Platform Installer (Includes e² studio IDE, toolchain, and FSP packs):
RA Smart Configurator (RASC) Installer (FSP packages to use with 3rd party IDEs with IAR Embedded Workbench, Arm Keil MDK):
FSP Standalone Installer (FSP packs for the users who only update the FSP and no e² studio update):
- Download from the Assets section of the GitHub
The installation instructions can be found here. All the FSP Releases and Patches can be found on GitHub.

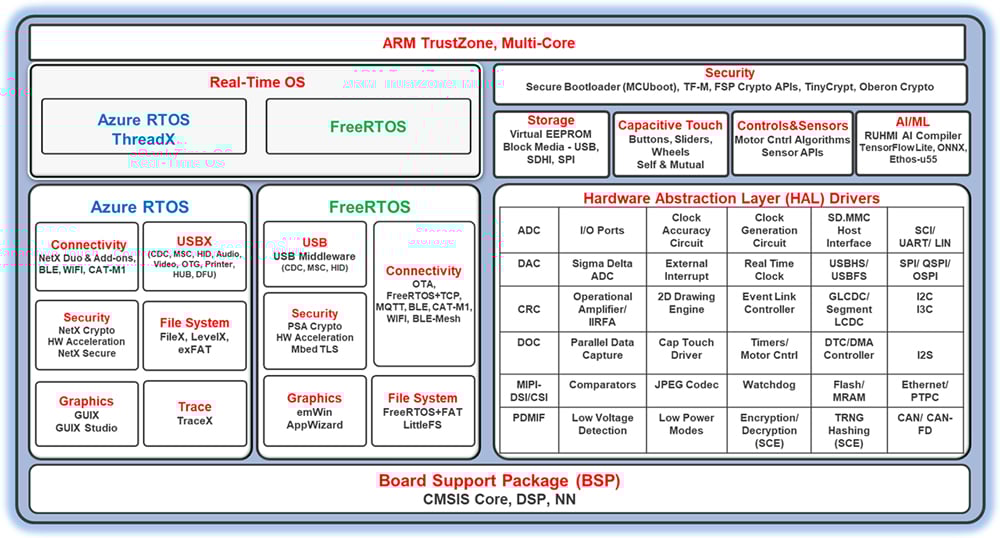

The Renesas Flexible Software Package (FSP) is an enhanced software package designed to deliver user-friendly, scalable, high-quality software for embedded system designs using the Renesas RA family of Arm Microcontrollers, ensuring software compatibility across the RA family, from entry-level to high-performance microcontrollers. With the support of new Arm® TrustZone® and other advanced security features, FSP provides a quick and versatile way to build secure, connected IoT devices using production-ready drivers, Azure® RTOS, FreeRTOS™, and other middleware stacks.
FSP includes best-in-class HAL drivers with high performance and low memory footprint. Middleware stacks with Azure RTOS and FreeRTOS integration are included to ease the implementation of complex modules like communication and security. The e² studio IDE provides support with intuitive configurators and intelligent code generation to make programming and debugging easier and faster.
FSP uses an open software ecosystem and provides flexibility in using bare-metal programming, including Azure RTOS or FreeRTOS, your preferred RTOS, legacy code, and third-party ecosystem solutions. FSP and e² studio can be used free of charge on any Renesas device.
Features
- Small memory footprint HAL drivers
- Intuitive configurator and code generator
- Static and dynamic analysis using industry-standard tools
- Application support using RTOS and non-RTOS environments
- Azure RTOS and its middleware stacks with Flexible Software Package
- Azure RTOS ThreadX, NetX Duo & Add-ons, USBX, GUIX & GUIX Studio, FileX, TraceX, exFAT, LevelX, NetX Duo Secure & NetX Crypto (HW acceleration)
- FreeRTOS support – Includes Kernel and set of software libraries
- FreeRTOS Kernel, FreeRTOS-Plus-TCP, Core MQTT, Core HTTP/HTTPS, Task pool, Secure Sockets, Cellular Interface
- Tool configurable RTOS resources (Threads, mutexes, etc.)
- Middleware stacks from Renesas and third parties.
- TCP/IP and other connectivity protocol stacks including MQTT
- USB middleware support for CDC, HID, and MSC
- Wireless connectivity through Cellular (Cat-M1), Wi-Fi, and Bluetooth Low Energy LE 5.0 (BLE Mesh)
- File System support with FreeRTOS+FAT and LittleFS
- Storage (Block Media) support for SDMMC, SPI, and USB.
- Virtual EEPROM on Flash
- Capacitive touch middleware to implement widgets like Button, Slider, and Wheels.
- Motor control algorithms
- Secure Bootloader through MCUboot
- Sensor Module APIs
- TrustZone support (for applications on CM33-based MCUs)
- TrustZone enabled drivers and middleware
- Easy-to-use tool support for TrustZone configuration
- PSA Level 2 Certified
- AWS qualified for FreeRTOS
- Easy connectivity options to major cloud providers
- Secure connections through NetX Duo Secure and Mbed TLS
- Cryptographic APIs and integrated Hardware Acceleration support
- Arm PSA Cryptographic APIs
- Azure RTOS NetX Crypto APIs
- Ultimate security with FSP Crypto APIs (SCE9 protected mode)
- TinyCrypt targeting constrained devices
- Graphics interface support and tools
- Segger emWin (RA customers can use Segger emWin graphic tools and libraries for free from Downloads below)
- Azure RTOS GUIX and GUIX Studio (available free on Microsoft Apps Store)
- Secure debugging capabilities
- Extensive tool support from Renesas and leading third-party solutions
- Integrated package with all required components for easy setup and starting development (single installer with e2 studio, CMSIS packs, toolchain, and Segger J-Link drivers)
- Complete source code available through GitHub
Release Information
For additional information and links go to GitHub.
v5.6.0
Release Notes
Flexible Software Package (FSP) for Renesas RA MCU Family, version 5.6.0.
Minimum e2 studio version for FSP 5.6.0 is e2 studio 2024-10
- Download the FSP with e2 studio Windows installer for this release: FSP Windows Platform Installer
- Download the FSP with e2 studio Linux AppImage for this release: FSP Linux Platform Installer
- Download the FSP with e2 studio MacOS (Apple Silicon) installer for this release: FSP MacOS Platform Installer
Refer to Installing e² studio in a Linux PC | Renesas Customer Hub for information on installing e2 studio and related software components on a Linux PC.
If using IAR or Keil MDK, download the Renesas Advanced Smart Configurator (RASC) for this release,
- For Windows download: FSP RASC Windows Installer
- For Linux download: FSP RASC Linux Installer
- For macOS (Apple Silicon) download: FSP RASC macOS Installer
All installers are available in the Assets section of this release.
Refer to the README.md in the FSP root folder for setup instructions, hardware details, and related links.
New Features
- Added support for RA8E1 MCU and FPB-RA8E1 development board
- ECDH with prime field, Koblitz and Brainpool curves is now supported in Protected Mode on the RA8x1 family
- RSIP-E51A support new Key Injection features in compatible mode on the RA8x1 family
- HMAC
- AES-XTS
- ECC secp521r1
- ECC brainpool P512r1
- Ed25519
- MCUBoot now supports curve SECP-384
- Added Flash HP Anti-Rollback Counter Support
- DA14531/DA14535: Added support for secure connections
- Added link to FSP coding standard in countributing.md file on Github repository.
- Added support for Memory Mirror Function
- Added support for RRH62000 Sensor
- Added CTSU SW JMM support
- Added TFM AROT service support
- Added DA16XXX HTTP Server Support
- Added USB HCDC-ECM support with FreeRTOS+TCP
- CAVP edition of RA6M4 (SCE9) PM driver update
Fixes and Improvements
- J-Link updated to version 7.98g
- emWin updated to version 6.44b
- IAR compiler updated to version9.60.2
- CMSIS-NN updated to version 6.0.0
- E2 and E2 Lite version updated to 2.3.2
- Added configuration option for display orientation to emWin
- rm_comms_smbus:
- Fixed open error when GPT interrupt is disabled
- Timeout interrupts now have separate event codes
- Updated SMBus usage notes
- FreeRTOS plus TCP updated to use PSA instead of rand() for random numbers
- Add OSPI DOTF runtime enable/disable
- Fixed temperature sensor module issue in trust zone secure project of EK-RA8M1
- Fixed Azure EWF GM module build failure with LLVM compiler
- Fixed linkage failure when build FreeRTOS with LLVM compiler with LTO enabled
- Fixed interface index issue in rm_netxduo_ether module
- Lightweight TCP/IP:
- Fixed stack warning and build error in generated code in rm_lwip_ether module
- Fixed build error when lwIP DNS property is enabled in rm_lwip_ether module
- BSP SDRAM documentation is now placed correctly and contains function information
Deprecations
- FS2012 and OB1203 sensor modules
- RYZ cellular modules
- ZMOD4410 Odor mode
- ZMOD4510 OAQ 1st Gen mode
Known Issues
- RA0E1:
- e2 studio projects automatically reset compiler optimization to a Size setting on every generate or build operation
- Add optimization flags (e.g. -O0) manually to 'Other optimization flags' to override the -Oz setting
- HS400x, ZMOD4xxx, and OB1203 sensors cannot be used on RA0E1
- FS1015 and FS3000 sensors do not support SAU-I2C driver
- Selecting 'Safely Remove Hardware and Eject Media' on Windows and eject the mass storage (PMSC), when using USBX composite device (PCDC+PMSC), the Windows Explorer for PMSC does not disappear.
- PMSC may not work properly when USBX Composite Device (PCDC+PMSC) is connected to a specific Linux OS (USB Host).
- EWARM support for RA8E1
- EWARM version 9.60.2 does not contain support for RA8E1. To develop with IAR for this device, it is necessary to install support patch files (arm_Renesas_R7FA8xx_patch_20240812_1.zip) which can be downloaded by EWARM v9.60.2 users from the IAR MyPages system.
Target Devices

Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | 简体中文 | |
| Software & Tools - Software | 简体中文 | |
| Software & Tools - Software | 简体中文 | |
| Software & Tools - Software | 简体中文 | |
| Software & Tools - Software | 简体中文 | |
| Software & Tools - Software | 简体中文 | |
6 items
|
||
Design & Development
Sample Code
Related Boards & Kits
Capacitive Touch Evaluation System for RA2L1
The RA2L1 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box...
Featured Documents:
Evaluation Kit for RA2L1 MCU Group
The EK-RA2L1 evaluation kit enables users to effortlessly evaluate the features of the RA2L1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA2E1 MCU Group
The EK-RA2E1 evaluation kit enables users to effortlessly evaluate the features of the RA2E1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Fast Prototyping Board for RA2E1 MCU Group
The RA2E1 Fast Prototyping Board comes equipped with an R7FA2E1A93CFM microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Evaluation Kit for RA2E2 MCU Group
The EK-RA2E2 evaluation kit enables users to effortlessly evaluate the features of the RA2E2 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA4M1 MCU Group
The EK-RA4M1 evaluation kit enables users to effortlessly evaluate the features of the RA4M1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA4M2 MCU Group
The EK-RA4M2 evaluation kit enables users to effortlessly evaluate the features of the RA4M2 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA4M3 MCU Group
The EK-RA4M3 evaluation kit enables users to effortlessly evaluate the features of the RA4M3 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA4W1 MCU Group
The EK-RA4W1 evaluation kit enables users to effortlessly evaluate the features of the RA4W1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Fast Prototyping Board for RA4E1 MCU Group
The RA4E1 Fast Prototyping Board comes equipped with an R7FA4E10D2CFM microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
Evaluation Kit for RA6M1 MCU Group
The EK-RA6M1 evaluation kit enables users to effortlessly evaluate the features of the RA6M1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA6M2 MCU Group
The EK-RA6M2 evaluation kit enables users to effortlessly evaluate the features of the RA6M2 MCU Group and develop embedded systems applications using the Flexible...
Featured Documents:
Capacitive Touch Evaluation System for RA6M2
The RA6M2 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box...
Featured Documents:
Evaluation Kit for RA6M3 MCU Group
The EK-RA6M3 evaluation kit enables users to seamlessly evaluate the features of the RA6M3 MCU Group and develop embedded systems applications using the Flexible...
Featured Documents:
Evaluation Kit for RA6M3 MCU Group with Graphics Expansion Boards
The EK-RA6M3G evaluation kit enables users to seamlessly evaluate the features of the RA6M3 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Evaluation Kit for RA6M4 MCU Group
The EK-RA6M4 evaluation kit enables users to effortlessly evaluate the features of the RA6M4 MCU Group and develop embedded systems applications using the Flexible...
Featured Documents:
Evaluation Kit for RA6M5 MCU Group
The EK-RA6M5 evaluation kit enables users to effortlessly evaluate the features of the RA6M5 MCU Group and develop embedded systems applications using the Flexible...
Featured Documents:
Motor Control Evaluation System for RA Family - RA6T1 Group
The Motor Control Evaluation System for RA Family - RA6T1 Group is a low-voltage permanent magnet synchronous motor (brushless DC motor) solution that allows anyone to...
Fast Prototyping Board for RA6E1 MCU Group
The RA6E1 Fast Prototyping Board comes equipped with an R7FA6E10F2CFP microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
MCK-RA6T2 Renesas Flexible Motor Control Kit for RA6T2 MCU Group
The MCK-RA6T2 is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors). With this product and...
Featured Documents:
Videos & Training
e² studio Tips - How to Import Example Project in e² studio for RA
This video shows how to import the Renesas RA Flat project and TrustZone project in e² studio.
e² studio Tips - How to Import Example Project in e² studio for RA
0:00:00 Opening
0:00:14 Flat Project and TrustZone Project
0:00:34 Set up IDE
0:00:54 Download Example Project
0:01:07 Import Flat Project
0:02:44 Import TrustZone Project
0:04:30 e² studio User Guide
Video List
Events & Webinars
News & Blog Posts
| Blog Post | Nov 15, 2022 | ||
| Blog Post | Apr 28, 2022 | ||
| Blog Post | Sep 25, 2021 | ||
| Blog Post | Jun 29, 2021 | ||
| News | Jun 15, 2021 |
Additional Details
Components
- CMSIS compliant pack files for e2 studio integrated development environment
- BSPs for RA MCUs and boards
- HAL drivers to access peripherals
- Real Time Operating Systems (RTOS)
- Middleware stacks and protocols
- Module configurators and code generators
- Source files to integrate with any development environment and third-party tools
Supported Toolchains
Software components in the FSP support following toolchains:
- e2 studio Integrated Development Environment, with toolchain supports of GCC Arm Embedded and LLVM Embedded Toolchain for Arm
- IAR Embedded Workbench
- Arm Keil MDK
Software Installation Instructions
Refer to the FSP GitHub page for installation and usage instructions: FSP GitHub Instructions
e2 studio Integrated Development Environment
The FSP provides a host of efficiency-enhancing tools for developing projects targeting the Renesas RA series of MCU devices. The e2 studio Integrated Development Environment provides a familiar development cockpit from which the key steps of project creation, module selection and configuration, code development, code generation, and debugging are all managed. FSP uses a Graphical User Interface (GUI) to simplify the selection, configuration, code generation and code development of high level modules and their associated Application Program Interfaces (APIs) to dramatically accelerate the development process.
e2 studio is equipped with set of options to configure various aspects of your application project. Some of these options include:
BSP configuration
Configure or change MCU and board-specific parameters from the initial project selection.
Clock Configuration
Configure the MCU clock settings for your project. The Clock Configuration presents a graphical view of the MCU's clock tree, allowing the various clock dividers and sources to be modified.
Pin Configuration
The Pin Configuration provides flexible configuration of the MCU's pins. This configures the electrical characteristics and functions of each port pin. As many pins are able to provide multiple functions, the pin configurator makes it easy to configure the pins on a peripheral basis. The Pin Configuration tool simplifies the configuration of large packages with highly multiplexed pins by highlighting errors and presenting the options for each pin or for each peripheral.
Module Configuration
The Module Configuration provides options to add FSP modules (HAL drivers, Middleware stacks and RTOS) for RTOS and non-RTOS based applications and configure various parameters of the modules. For each module selected, the Properties window provides access to the configuration parameters, interrupt priorities, pin selections etc.
Interrupt Configuration
Interrupt Configuration allows to add new user interrupts or events and set interrupt priorities. This will also allow the user to bypass a peripheral interrupt and have user-defined ISRs for the peripheral interrupts.
Components Configuration
The Components configuration enables the individual modules required by the application to be included or excluded. All modules that are necessary for the modules added to the application are included automatically. You can easily include or exclude additional modules by ticking the box next to the required component.
QE Tools
QE for Capacitive Touch is an assistance tool for applications which operate under the e2 studio. For the development of embedded systems that work with capacitive touch sensors, this tool simplifies the initial settings of the touch user interface and the tuning of the sensitivity, thus shortening developing times.
The QE for BLE is a dedicated tool for developing embedded software in systems which support the Bluetooth®low energy protocol stack. This solution toolkit runs in the e2 studio integrated development environment. The combination of the e2 studio and QE for BLE makes it easy to test the communications features of Bluetooth®low energy.
Other Tool Features
- Context-sensitive Autocomplete feature that provides intelligent options for completing a programming element
- Developer Assistance tool for selection of and drag and drop placement of API functions directly in application code
- Smart Manual that provides driver and device documentation in the form of tooltips right in the code
- Edit Hover feature to show detailed descriptions of code elements while editing
- Welcome Window with links to example projects, application notes and a variety of other self-help support resources
- Information Icon for each module is provided in the graphic configuration viewer that links to specific design resources for that module in the user manual.
Third Party Tool Support
In addition to the Renesas e2 studio IDE, FSP supports third party tools and IDEs as well. This support is provided through RA Smart configurators (RASC) application. The Renesas RA Smart Configurator is a desktop application that allows you to configure the software system (BSP, drivers, RTOS and middleware) for a Renesas RA microcontroller when using a 3rd-party IDE and toolchain. The RA Smart Configurator can currently be used with IAR Embedded Workbench, Keil MDK and the Arm compiler 6 toolchains.
