Overview

The RA2E2 Group is RA Family’s entry-line single-chip microcontroller based on the 48-MHz Arm® Cortex®-M23 core with Renesas' innovative on-chip peripheral functions. RA2E2 Group offers ultra-low power operation and high-speed serial communication with the smallest package options of 20-pin and 24-pin QFN and 16-pin wafer-level CSP package, satisfying the needs of cost-sensitive and space-constrained applications. These RA2E2 Group microcontrollers enable extremely cost-effective designs for IoT sensor nodes, portable devices, industrial control, and any battery-operated application that requires developers to cut power consumption, cost, and space.

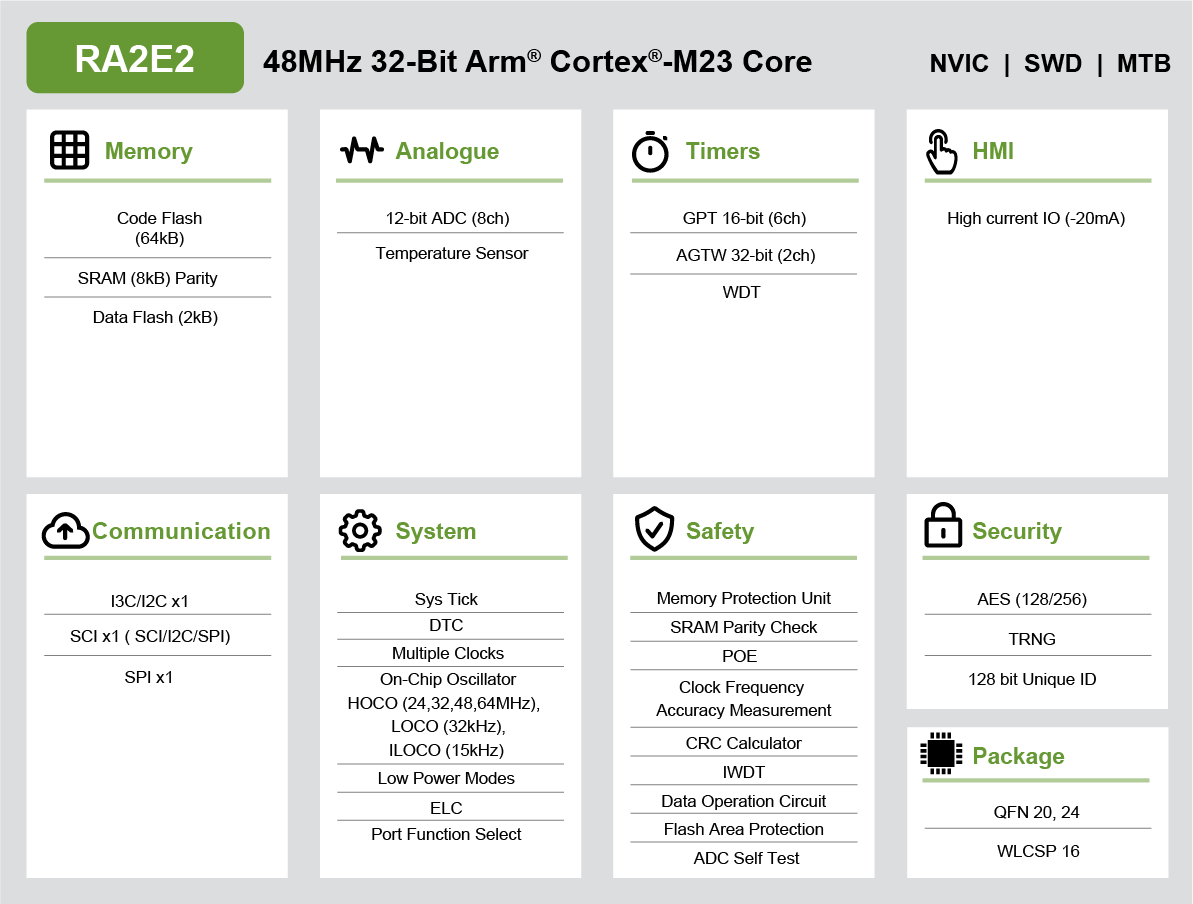

RA2E2 Block Diagram
RA2E2 Block Diagram
  • 48MHz Arm Cortex-M23
  • Up to 64kB Flash memory and 8kB SRAM
  • 2kB Data Flash to store data as in EEPROM
  • Scalable from 16-pin to 24-pin packages
  • Wide operating voltage range of 1.6V to 5.5V
  • Best-in-class Active/Standby power consumption in Arm Cortex-M23 microcontroller
  • 12-bit ADC, temperature sensor
  • 16-bit general PWM timer, 32-bit low power asynchronous general-purpose timer
  • I3C bus interface
  • SCI (UART, Simple SPI, Simple I2C)
  • SPI interface
  • Safety
  • Security and encryption
  • 125 °C operating temperature support
  • Smallest package options (16-pin WLCSP, 20 and 24-pin HWQFN)

Applications

  • General purpose
  • IoT devices
  • Industrial automation, industrial sensors
  • Portable consumer devices
  • Home appliances
  • Building automation
  • Medical and healthcare
  • Wearable devices



Documentation

Design & Development

Software & Tools
RA Flexible Software Package (FSP)
FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
Downloads
Securing Data at Rest Utilizing the Renesas Security MPUSecuring your IP and Protecting Sensitive DataSecurity for the Connected WorldEK-RA2E2 Example Project BundleLow Power Application (Use of ADC, DTC and ELC at Snooze mode) for FPB-RA2E1 and FPB-RA2E2
Secure Bootloader for RA2 MCU Series – Application ProjectConverting Applications from e² studio to IAR or Keil for RA – Application NoteEK-RA2E2 Example Project BundleRA2E2 HS3001 Sensor Device Example – Application ProjectRA2E2 HS3001 Sensor Device Example – Application ProjectRA2E2 ZMOD4410 Sensor Device Example – Application ProjectRA2E2 ZMOD4410 Sensor Device Example – Application ProjectSecuring Data at Rest Utilizing the Renesas Security MPU
 Software Package Renesas
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator Renesas
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
 Emulator Renesas
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
 Solution Toolkit Renesas
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) Renesas
Renesas Flash Programmer (Programming GUI)
Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
 Programmer (Unit/SW) Renesas
e² studio - information for RA Family
Eclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
IDE and Coding Tool Renesas
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
 Imaging SEGGER
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
 Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
 IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
 IDE and Coding Tool Arm® Keil® MDK Arm®
Add 2 hidden items
11 items
EK-RA2E2 Kit

EK-RA2E2

Evaluation
Learn More

Evaluation Kit for RA2E2 MCU Group

The EK-RA2E2 evaluation kit enables users to effortlessly evaluate the features of the RA2E2 MCU Group and develop embedded systems applications using Renesas' Flexible...

Featured Documents:
EK-RA2E2-Quick Start Guide
EK-RA2E2 v1-User's Manual
EK-RA2E2 v1 - Design Package
RA2E2 Fast Prototyping Board

FPB-RA2E2

Evaluation
Learn More

Fast Prototyping Board for RA2E2 MCU Group

RA2E2 Fast Prototyping Board is an evaluation board specialized for prototype development for a variety of applications. It has a built-in emulator circuit equivalent...

Featured Documents:
FPB-RA2E2-Quick Start Guide
Evaluation Kit for RA2E1 and ZSSC3240 with Network board

RA2E1-IO-LINK-PRESSURE-SENSOR

Demonstration
Learn More

RA2E1 IO-Link Pressure Sensor Solution Demonstration Kit

This solution is a combination of the ultra-small and low-power consumption 32-bit RA2E1 MCU and the ZSSC3240 sensor signal conditioner (SCC) kit. It realizes pressure...

Featured Documents:
RA2E1 IO-Link Pressure Sensor Solution

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    PLP
    Carrier Type
    CPU
    Operating Freq (Max) (MHz)
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    ECC SRAM
    Lead Count (#)
    Pkg. Type
    Pkg. Dimensions (mm)
    Pitch (mm)
    I/O Ports
    Supply Voltage (V)
    Temp. Range
    External Memory Bus (bit)
    Floating Point Unit
    DMAC or DTC
    External Interrupt Pins (#)
    USB FS (host ch/device ch)
    USB HS (host ch/device ch)
    Ethernet
    CAN (ch)
    CAN-FD (ch)
    SCI or UART (ch)
    SPI (ch)
    I2C (#)
    I3C (ch)
    LIN (#)
    SSI (ch)
    QSPI Interface (#)
    OSPI (ch)
    SDHI (ch)
    Capacitive Touch Sensing Unit (ch)
    Graphics LCD Controller
    Camera I/F (Parallel)
    Segment LCD Controller
    Wireless
    IrDA
    PWM Output (pin#)
    32-Bit Timer (ch)
    16-bit High Res Timer (ch)
    16-bit Enhanced Timer (ch)
    16-Bit Timer (ch) (#)
    8-Bit Timer (ch)
    Asynchronous General Purpose Timer (ch)
    Watchdog Timer (ch)
    24-Bit Sigma-Delta A/D Converter (ch)
    16-Bit A/D Converter (ch)
    14-Bit A/D Converter (ch)
    12-Bit A/D Converter (ch)
    10-Bit A/D Converter (ch)
    12-Bit D/A Converter (ch)
    8-Bit D/A Converter (ch)
    High-Speed Analog Comparator (ch)
    Low-Power Analog Comparator (ch)
    PGA (ch)
    OPAMP (ch) (#)
    Temperature Sensor (ch) (#)
    RTC
    LVD or PVD
    Security & Encryption
    Power-On Reset
    Sub-clock (32.768 kHz)
    On-chip Oscillator
    Debug Interface
    Replacement Product
    Replacement Remark
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    R7FA2E2A32DBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 16 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 0.8004 Get Samples,
    R7FA2E2A32DNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A32DNJ#BA1 Switch to full carton products 3 0.821 Get Samples,
    R7FA2E2A32DNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A32DNK#BA1 Switch to full carton products 3 0.8458 Get Samples,
    R7FA2E2A33CBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 16 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 Get Samples,
    R7FA2E2A33CNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A33CNJ#BA1 Switch to full carton products 3 0.861 Get Samples,
    R7FA2E2A33CNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A33CNK#BA1 Switch to full carton products 3 0.8876 Get Samples,
    R7FA2E2A34CBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 16 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 Get Samples,
    R7FA2E2A34CNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A34CNJ#BA1 Switch to full carton products 3 0.75 Get Samples,
    R7FA2E2A34CNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A34CNK#BA1 Switch to full carton products 3 0.9537 Get Samples,
    R7FA2E2A52DBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 32 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 0.8544 Get Samples,
    R7FA2E2A52DNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A52DNJ#BA1 Switch to full carton products 3 0.8863 Get Samples,
    R7FA2E2A52DNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A52DNK#BA1 Switch to full carton products 3 0.9009 Get Samples,
    R7FA2E2A53CBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 32 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 0.9879 Get Samples,
    R7FA2E2A53CNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A53CNJ#BA1 Switch to full carton products 3 0.9274 Get Samples,
    R7FA2E2A54CBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 32 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 1.067 Get Samples,
    R7FA2E2A54CNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A54CNJ#BA1 Switch to full carton products 3 0.8125 Get Samples,
    R7FA2E2A54CNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A54CNK#BA1 Switch to full carton products 3 1.006 Get Samples,
    R7FA2E2A72DBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 64 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 0.9123 Get Samples,
    R7FA2E2A72DNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) Arm Cortex-M23 48 64 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A72DNJ#BA1 Switch to full carton products 3 0.8818 Get Samples,
    R7FA2E2A72DNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) Arm Cortex-M23 48 64 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A72DNK#BA1 Switch to full carton products 3 0.9428 Get Samples,
    R7FA2E2A73CBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 64 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 1.067 Get Samples,
    R7FA2E2A73CNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 64 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A73CNJ#BA1 Switch to full carton products 3 0.98 Get Samples,
    R7FA2E2A73CNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 64 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A73CNK#BA1 Switch to full carton products 3 1.006 Get Samples,
    R7FA2E2A74CBY#HC1
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tape & Reel Arm Cortex-M23 48 64 2 8 No 16 WLCSP 1.87 x 1.84 x 0.55 0.4 12 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 10 0 0 0 6 0 2 2 0 0 0 4 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 1 1.041 Get Samples,
    R7FA2E2A74CNJ#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Bulk (Tray) Arm Cortex-M23 48 64 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A74CNJ#BA1 Switch to full carton products 3 0.8875 Get Samples,
    R7FA2E2A74CNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) Arm Cortex-M23 48 64 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A74CNK#BA1 Switch to full carton products 3 Get Samples,
    R7FA2E2A32DNJ#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A32DNJ#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A32DNK#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A32DNK#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A33CNJ#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A33CNJ#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A33CNK#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A33CNK#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A34CNJ#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A34CNJ#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 16 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A34CNK#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A34CNK#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 16 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A52DNJ#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A52DNJ#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A52DNK#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A52DNK#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 85°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A53CNJ#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A53CNJ#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A53CNK#AA1
    circleActive
    Repl. Product
    memory
    view_in_ar
    Samples Available
    Buy Now
    		N/A Tray Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD R7FA2E2A53CNK#BA1 3 0.9537 Get Samples,
    R7FA2E2A53CNK#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A53CNK#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 105°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A54CNJ#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A54CNJ#HA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Tape & Reel Arm Cortex-M23 48 32 2 8 No 20 QFN 4 x 4 x 0.8 0.5 16 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 11 0 0 0 6 0 2 2 0 0 0 7 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    R7FA2E2A54CNK#BA1
    circleActive
    memory
    view_in_ar
    		2037 Dec Full Carton (Tray) Arm Cortex-M23 48 32 2 8 No 24 HWQFN 4 x 4 x 0.8 0.5 20 1.6 - 5.5 Ta=-40 to 125°C No No DTC 8 ( 0 / 0 ) ( 0 / 0 ) 0 0 1 1 0 1 0 0 0 0 0 0 No No No No No 12 0 0 0 6 0 2 2 0 0 0 8 0 0 0 0 0 0 0 1 No Yes 128-bit Unique ID, AES(128/256), TRNG Yes No Yes SWD 3
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Videos & Training

    RA2E2 48MHz Arm® Cortex®-M23 MCUs with Ultra-Low Power Consumption

    Watch an overview of the tiny, ultra-low power RA2E2 MCUs and see the innovative peripheral functions optimized for cost-sensitive and space-constrained IoT endpoint, wearable, medical, industrial automation and other consumer and home appliance applications. Visit renesas.com/RA2E2 for more details including documentation, samples and evaluation kits.

    Video List
    RA2E2 48MHz Arm® Cortex®-M23 MCUs with Ultra-Low Power Consumption
    Introducing the Renesas RA Family of 32-Bit Microcontrollers
    Evaluation Kits for Renesas Advanced (RA) Microcontrollers
    Renesas RA Family Partner Ecosystem Overview
    Security in the Connected World
    Accelerate IO-Link Proximity Sensor Design with RA2E2 Solution
    Getting Started with Fast Prototyping Board for RA Family (E2 Lite)

    Events & Webinars

    News & Blog Posts

    Blog Post Nov 29, 2023
    Blog Post May 17, 2023
    Blog Post Oct 6, 2022
    Blog Post Jun 8, 2022
