Overview
Description

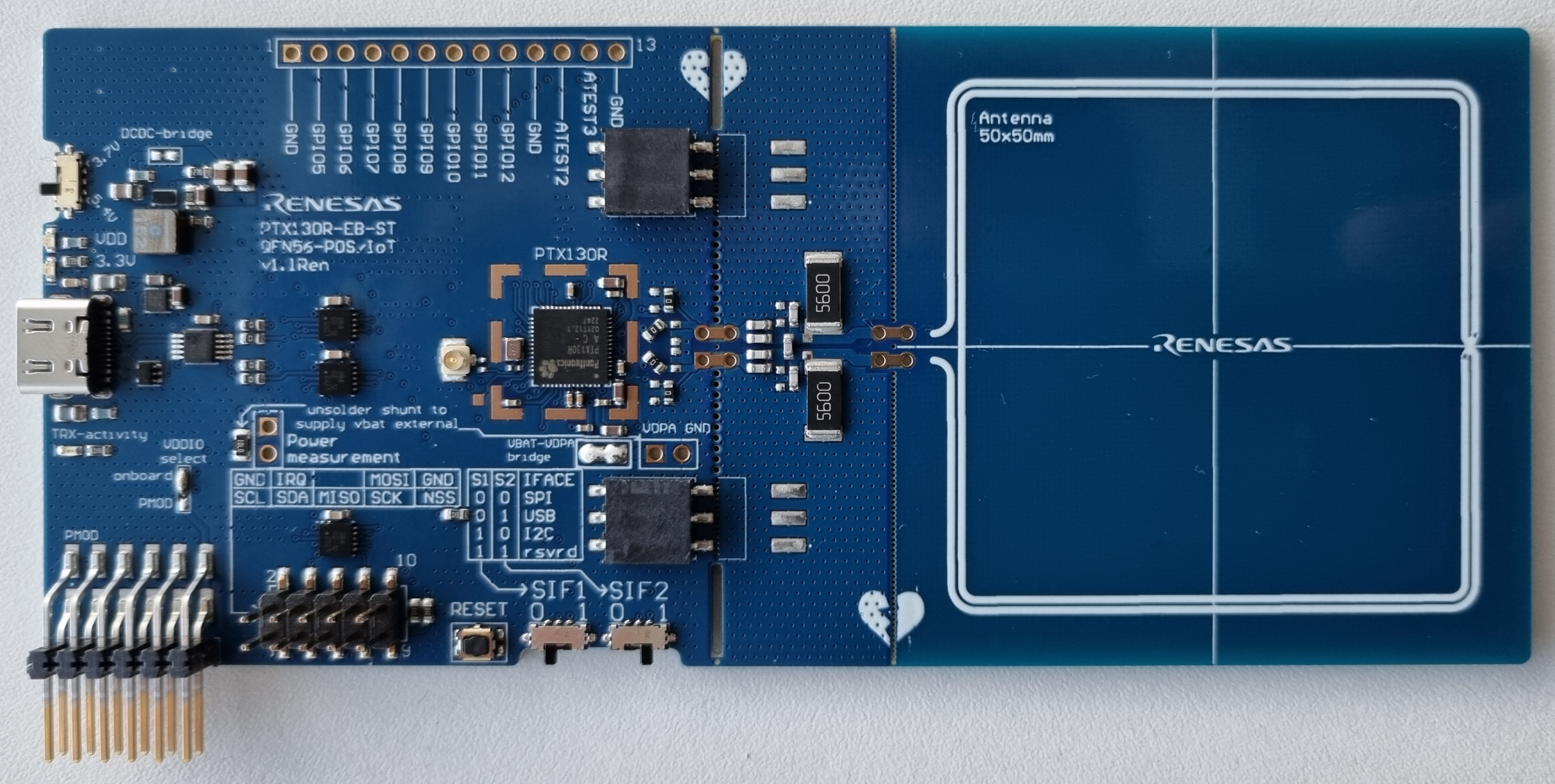

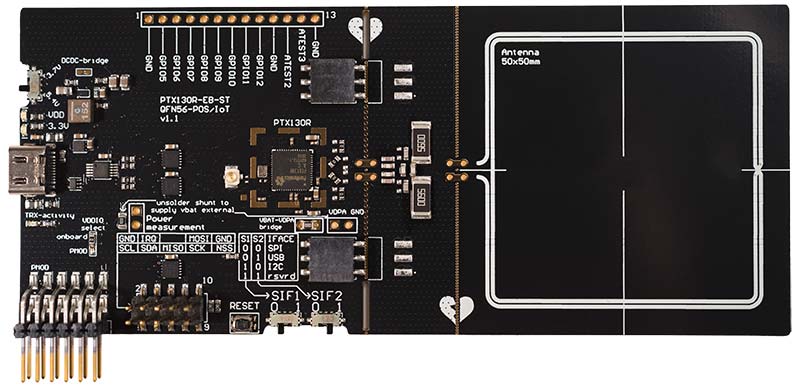

The PTX130R demo kit enables quick evaluation of the PTX130R NFC reader IC for Android-based reader applications.
Features
- High-efficiency, high-power (2W), high-performance NFC reader kit for universal reader hardware platform IC PTX130R. EMVCo L1 with antenna behind display.
- Android Integration Stack (AIS) for Android 12 based on NCI specification.
- Easy-to-use, ready-to-go SW integration into any terminal/device host MCU architecture.
- NFC P2P (initiator) and Card Emulation (HCE).
- EMI filter-less solution with DiRAC® for high-performance application with optimized interoperability.
- RF-design supported with Config Tool and SDKs.
Applications
Applications
- EMVCo 3.0/3.1 Point-of-Sale (PoS) systems
- Android™ devices
- High-performance IoT applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 1.57 MB | |
| Application Note | PDF 2.02 MB | |
2 items
|
||
10009130-PTX130REK Active Samples Available
