The USB target device class drivers consist of USB basic firmware and firmware for the appropriate USB class. You can use these drivers and firmware with our MCU USB IP to jump start your development.

Renesas offers a wide network of partners to help support your development process. Please contact a Renesas sales office if necessary. Please check the USB overview for more details.

Features

  • USB sample firmware is available for various USB applications. [Learn More]
    • USB Device Class Firmware (Host/Peripheral)
    • USB Basic Firmware (Host/Peripheral)
    • For non-OS/For Real-time OS

Target Devices

Documentation

Design & Development

Sample Code

Additional Details

System Configuration and Functions

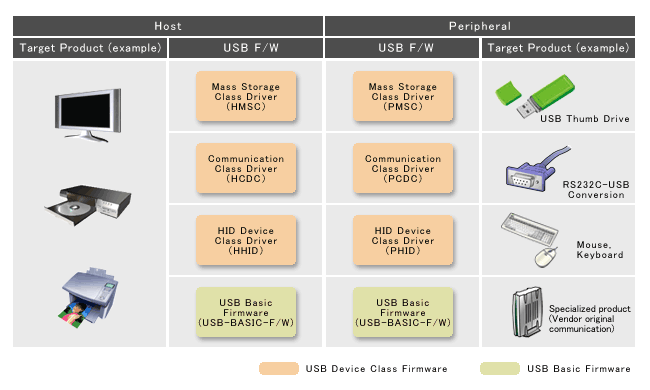

Layer configuration of USB Driver

Layer configuration of USB Driver

Firmware and Application Notes

Download: Refer to the Target Devices (MCU/MPU) and Product Lineup. Please contact a Renesas sales office if you need any other USB sample drivers.

Target Devices (MCU/MPU) and Product Lineup

Target integrated development environments (IDE) are as follows.

Renesas Electronics

ide-e2s

 : e2 studio


ide-qsp

 : CS+


High-performance Embedded Workshop

 : High-performance Embedded Workshop


PM+

 : PM+

Partners

IAR Embedded Workbench

 : IAR Embedded Workbench


Green Hills Software MULTI

 : Green Hills Software MULTI


Arm DS-5 Development Studio

 : Arm DS-5 Development Studio



USB MCU

For non-OS
Host
Target USB MCU/IDE *Host
USB Basic Firmware (USB-BASIC-F/W)USB Device Class FirmwareUSB F/W Updater
Mass Storage (HMSC)Comm. (HCDC)HID (HHID)
RL78

RL78/G1C

ide-qsp
ide-e2s
IAR Embedded Workbench
lenslenslens
RX

RX111, RX113, RX231, RX23W, RX261

ide-e2s
(Note8)lens (Note4) (Note8)lens (Note8)lens (Note8)lens

RX62x, RX63T, RX63N/RX631

ide-e2s
(Note2)lens (Note4)lenslenslens

RX64M, RX65N/RX651, RX66N, RX66T, RX71M, RX72M, RX72N, RX72T

ide-e2s
(Note8)lens (Note4) (Note8)lens (Note8)lens (Note8)lens
RZ

RZ/T1

ide-e2s
IAR Embedded Workbench
Arm DS-5 Development Studio
(Note2)lenslenslens

RZ/A1H

ide-e2s
IAR Embedded Workbench
Arm DS-5 Development Studio
(Note2)lenslenslens

RZ/A2M

ide-e2s
(Note2)lens (Note9)lens (Note9)
R8C

R8C/3xU

High-performance Embedded Workshop
lenslenslenslens
V850

V850E2/ML4

ide-qsp
lens (Note7)lens (Note4)lens
SuperH

SH7700

High-performance Embedded Workshop
lens

lensSample (free of charge) | — Not Available

* We offer a USB Driver with an application program on our website. Refer to Firmware Integration Technology (FIT) for details of FIT module.

Peripheral
Target USB MCU/IDE *Peripheral
USB Basic Firmware
(USB-BASIC-F/W)
USB Device Class FirmwareLibUSBUSB F/W Updater
Mass Storage (PMSC)Comm. (PCDC)HID (PHID)Printer
RL78

RL78/G1C, RL78/L1C

ide-qsp
ide-e2s
IAR Embedded Workbench
lenslenslenslenslens (Note3)
RX

RX111, RX113, RX231, RX23W, RX261

ide-e2s
(Note8)lens (Note8)lens (Note8)lens (Note8)lens

RX62x, RX630/63T, RX63N/RX631

ide-e2s
(Note2)lenslenslenslenslens

RX64M, RX65N/RX651, RX66N, RX66T, RX71M, RX72M, RX72N, RX72T

ide-e2s
(Note8)lens (Note8)lens (Note8)lens (Note8)lens
RZ

RZ/T1

ide-e2s
IAR Embedded Workbench
Arm DS-5 Development Studio
(Note2)lenslens

RZ/A1H

ide-e2s
IAR Embedded Workbench
Arm DS-5 Development Studio
(Note2)lenslenslens

RZ/A2M

ide-e2s
(Note2)lens (Note9)
R8C

R8C/3xU,R8C/3xK

High-performance Embedded Workshop
lenslenslenslens
V850

V850ES/Jx3-H/U

PM+
lens (Note2)lenslenslenslens lens

V850ES/Jx3-E/L

PM+
lens (Note2)lenslenslenslens

V850E2/MN4

ide-qsp
IAR Embedded Workbench
Green Hills Software MULTI
lens (Note2)lenslenslens

V850E/Ix4-H

PM+
lens (Note2)lens

V850E2/ML4

ide-qsp
lens (Note2)lens (Note5) lens (Note6)lens (Note5)lens
SuperH

SH7280

High-performance Embedded Workshop
lens (Note2)lenslens

SH7216

High-performance Embedded Workshop
lens (Note2)lenslenslenslenslenslens

SH7700

High-performance Embedded Workshop
lens (Note2)lenslenslens
H8SX

H8SX/1600

High-performance Embedded Workshop
lens (Note2)lenslenslens
H8S

H8S/2200,H8S/2400

High-performance Embedded Workshop
lens (Note2)lenslenslenslens

lensSample (free of charge) | — Not Available

* We offer a USB Driver with an application program on our website. Refer to Firmware Integration Technology (FIT) for details of FIT module.

For Real-time OS
Target USB MCU/IDE *HostPeripheral
USB Basic Firmware (USB-BASIC-F/W)USB Device Class FirmwareUSB Basic Firmware (USB-BASIC-F/W)USB Device Class Firmware
Mass Storage (HMSC)Comm. (HCDC)HID (HHID)Mass Storage (PMSC)Comm. (PCDC)HID (PHID)
RX (Note1)

RX64M, RX65N/RX651, RX66N, RX66T, RX71M, RX72M, RX72N, RX72T

ide-e2s

(Note8)

lens (Note4) (Note8)lens (Note8)lens (Note8)lens (Note8)lens (Note8)lens (Note8)

RX111, RX113, RX231, RX23W, RX261

ide-e2s
(Note8)lens (Note4) (Note8)lens (Note8)lens (Note8)(Note8)lens (Note8)lens (Note8)lens (Note8)

lensSample (free of charge) | — Not Available

* We offer a USB Driver with application program on our website. Refer to Firmware Integration Technology (FIT) for details of FIT module.

NOTES

  1. The supported Real-time OS are FreeRTOS and µITRON (RI600V4).
  2. USB Basic Firmware is included in each USB Device Class Firmware.
  3. Refer to RL78 microcontroller USB Peripheral Firmware Updater GNU/IAR Ver. Rev.1.10 (PDF) when using IAR / GCC compiler.
  4. Bundled simplified FAT file system.
  5. V850E2/ML4 Example of USB Multifunction Operation
  6. V850E2/ML4 MultiMediaCard Control Over USB Sample Program
  7. V850E2/ML4 USB Host Software (Support USB Hub)
  8. The FIT module compatible versions are available. Refer to Firmware Integration Technology (FIT) for details of FIT module.
  9. Bundled in the RZ/A2M Simple Applications Package

Partners

Renesas offers a wide network of partners to help support your development process. Please contact a Renesas sales office if necessary.
