High-Performance 16-bit Dual DAC (Low Common Mode) Evaluation Board
IDT's DAC demo board is suitable for dynamic performance evaluations from low to high output frequency configurations. A data-generation board can be used during design...
Overview
Description

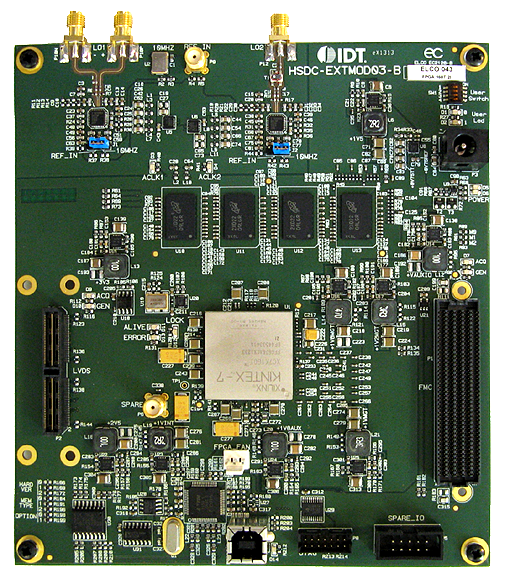

HSDC-EXTMOD03B-DB is an FPGA-based digital pattern generation board for IDT’s JESD204B serial interface DACs.
Features
- JESD204B serial speed rate up to 10Gbps
- Up to 8 JESD204B high-speed lanes for quad DAC’s
(DAC1658Q and DAC1653Q) - Compatible with IDT JESD204B dual DAC’s
(DAC1658D and DAC1653D) - Allows generation of single tone or elaborated patterns
(WCDMA, multi-carrier, etc.) - LO generation for RF mixing
- Connection to DAC boards through an FMC connector
