Overview
Description

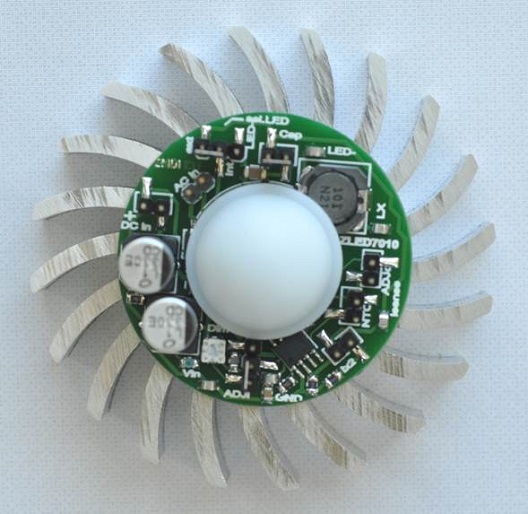

The ZLED7010 Demo Kit demonstrates the functionality of IDT's ZLED7010 LED Driver. This demo board includes an on-board LED, a decorative cool body, and a diffuser for eye protection. It operates with a 12 VAC or VDC supply with a 300mA or 600mA LED current. Jumpers allow configuration of the application circuit. An on-board trimmer enables dimming. The board's driver circuit is intrinsically safe against an open LED circuit. The board can be cascaded via a two pin connector for the ADJi pin of the follower driver board.
Features
- ZLED7010-D1 Demo Board
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 663 KB | |
1 item
|
||
Processing table
ZLED7010KITD1 Obsolete |
