Single General Purpose Micropower, RRIO Op Amp Evaluation Board
The ISL28113SOT23EVAL1Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28113...
Overview
Description
The ISL28114, ISL28214, and ISL28414 are single, dual, and quad channel general purpose micropower, rail-to-rail input and output operational amplifiers with supply voltage range of 1. 8V to 5. 5V. Key features are a low supply current of 390μA maximum per channel at room temperature, a low bias current, and a wide input voltage range, which enables the ISL28x14 devices to be excellent general purpose op amps for a wide range of applications. The ISL28114 is available in the SC70-5 and SOT23-5 packages, the ISL28214 is in the MSOP8, SO8, and SOT23-8 packages, and the ISL28414 is in the TSSOP14 and SOIC14 packages. All devices operate across the extended temperature range of -40°C to +125°C.
Features
- Low current consumption: 390μA
- Wide supply range: 1.8V to 5.5V
- Gain-bandwidth product: 5MHz
- Input bias current: 20pA, Max.
- Operating temperature range: -40°C to +125°C
- Packages
- ISL28114 (single): SC70-5, SOT23-5
- ISL28214 (dual): MSOP8, SO8, SOT23-8
- ISL28414 (quad): SOIC14, TSSOP14
Comparison
Applications
Applications
- Power Supply Control/Regulation
- Process Control
- Signal Ban/Buffers
- Active Filters

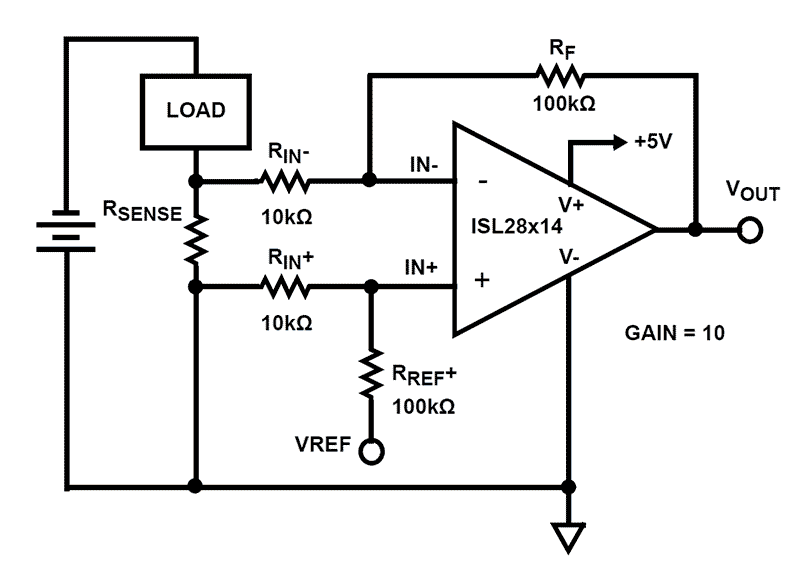

- Current Shunt Sensing
- Trans-impedance Amp
