Overview
Description

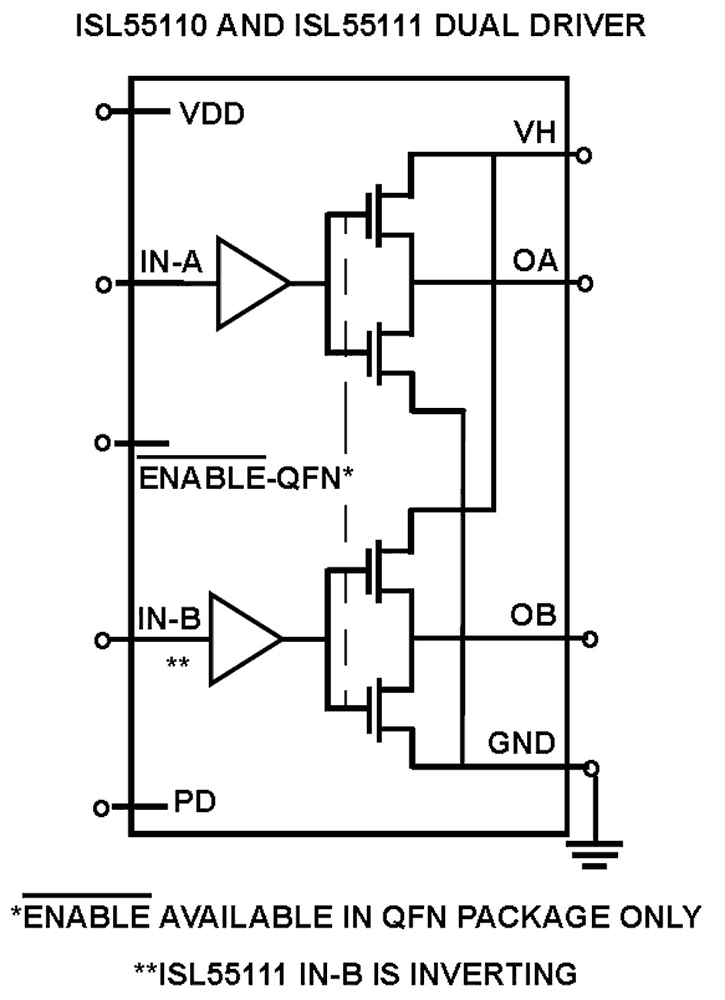

The ISL55110 is a dual high-speed MOSFET driver intended for applications requiring accurate pulse generation and buffering. Target applications include ultrasound, charge-coupled device (CCD) imaging, piezoelectric distance sensing, and clock generation circuits. With a wide output voltage range and low ON-resistance, these devices can drive a variety of resistive and capacitive loads with fast rise and fall times, allowing high-speed operation with low skew, as required in large CCD array imaging applications. The ISL55110 is compatible with 3.3V and 5V logic families and incorporates tightly controlled input thresholds to minimize the effect of input rise time on output pulse width. The device has a pair of in-phase drivers. And, it has a power-down mode for low power consumption during equipment standby times, making it ideal for portable products. The ISL55110 is available in 16 Ld exposed pad QFN packaging and an 8 Ld TSSOP and is specified for operation over the full -40 °C to +85 °C temperature range.
Features
- 5V to 12V pulse amplitude
- High current drive 3.5A
- 6ns minimum pulse width
- 1.5ns rise and fall times, 100pF load
- Low skew
- 3.3V and 5V logic compatible
- Small QFN and TSSOP packaging
- Low quiescent current
- Pb-free (RoHS compliant)
Comparison
Applications
- Ultrasound MOSFET drivers
- CCD array horizontal drivers
- Automotive piezo driver applications
- Clock driver circuits
Design & Development
Boards & Kits
Dual, High-Speed MOSFET Driver Evaluation Board
The ISL55110EVAL2Z evaluation board is used to evaluate the ISL55110 dual, high-speed MOSFET drivers.
The ISL55110 is intended for applications requiring accurate...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
ISL55110IRZ Active Samples Available
Buy Now
|
QFN | Tube | 1 | 1.436 | Get Samples, |
| QFN | Reel | 1 | 1.555 | ||
| QFN | Reel | 1 | 2.225 | ||
ISL55110IVZ Active Samples Available
Buy Now
|
TSSOP | Tube | 1 | Get Samples, | |
| TSSOP | Reel | 1 | |||
| TSSOP | Reel | 1 | 2.225 |
