12-Bit, 130MSPS, High-Speed D/A Converter Evaluation Board
The HI5860SOICEVAL1 evaluation board provides a quick and easy method for evaluating the HI5860 12-bit, 130MSPS high-speed DACs. The board is configured so that the...
Featured Documents:
Overview

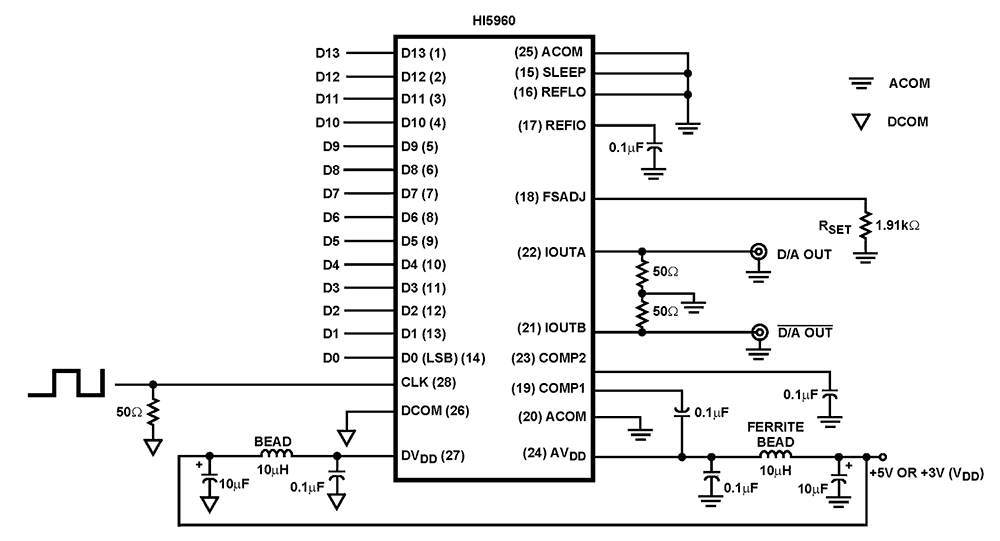

Description
The HI5960 is a 14-bit, 130MSPS (Mega Samples Per Second), High-Speed, low power, D/A converter which is implemented in an advanced CMOS process. Operating from a single +3V to +5V supply, the converter provides 20mA of full scale output current and includes edge-triggered CMOS input data latches. Low glitch energy and excellent frequency domain performance are achieved using a segmented current source architecture. This device complements the CommLink HI5x60 and HI5x28 family of High-Speed converters, which includes 8, 10, 12, and 14-bit devices.
Features
- Throughput Rate 130MSPS
- Low Power (at 100MSPS) at 5V 175mW, at 3V 32mW
- Adjustable Full Scale Output Current 2mA to 20mA
- Internal 1.2V Bandgap Voltage Reference
- Single Power Supply from +5V to +3V
- Power Down Mode
- CMOS Compatible Inputs
- Excellent Spurious Free Dynamic Range (77dBc, fS = 50MSPS, fOUT = 2.51MHz)
- Excellent Multitone Intermodulation Distortion
- Pb-Free Available (RoHS Compliant)
Comparison
Applications
- Cellular Basestations
- WLL, Basestation and Subscriber Units
- Medical/Test Instrumentation
- Wireless Communications Systems
- Direct Digital Frequency Synthesis
- High Resolution Imaging Systems
- Arbitrary Waveform Generators
Design & Development
Boards & Kits
14-Bit, 130MSPS, High-Speed D/A Converter Evaluation Board
The HI5960SOICEVAL1 evaluation board provides a quick and easy method for evaluating the HI5960 14-bit, 130MSPS high-speed DACs. The board is configured so that the...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| TSSOP | Tube | 200 | ||
| TSSOP | Reel | 2500 | ||
| SOICW | Tube | 130 |
