Overview
Description

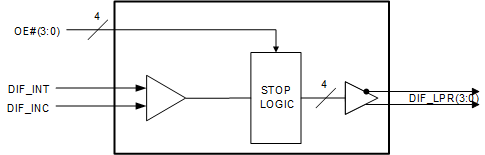

The 9DBL411 is a four-output lower power differential buffer. Each output has its own OE# pin. The device has a maximum operating frequency of 150MHz.
Features
- Four low-power differential output pairs
- Individual OE# control of each output pair
- Output cycle-cycle jitter < 25ps additive
- Output-to-output skew: < 50ps
- Low-power differential fanout buffer for PCI Express and CPU clocks
- Available in commercial (0 °C to +70 °C) and industrial (-40 °C to +85 °C) temperature ranges

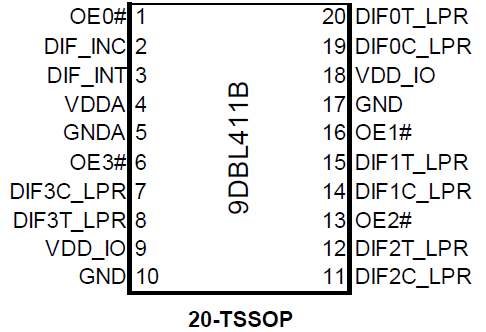

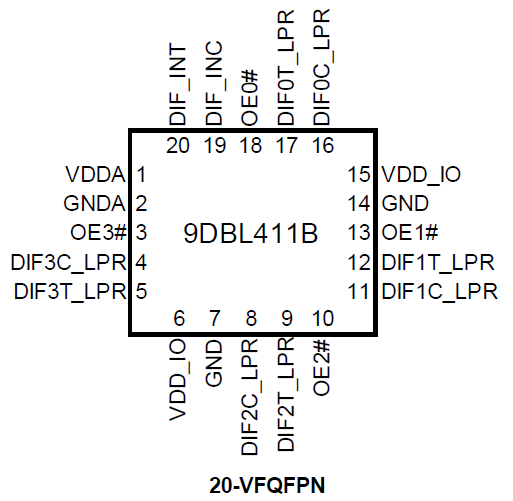

- Available in 20-VFQFPN or 20-TSSOP packages
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| TSSOP | 20 | -40 to 85°C | I | Yes | Tube | 1 | Get Samples, | ||
| TSSOP | 20 | -40 to 85°C | I | Yes | Reel | 1 | |||
| TSSOP | 20 | 0 to 70°C | C | Yes | Tube | 1 | 1.813 | Get Samples, | |
| TSSOP | 20 | 0 to 70°C | C | Yes | Reel | 1 | 2.05 |
