542

Obsolete

Clock Divider

542 Datasheet

Overview

The 542 is cost effective way to produce a high-quality clock output divided from a clock input. The chip accepts a clock input up to 156 MHz at 3.3 V and produces a divide by 2, 4, 6, 8, 12, or 16 of the input clock. There are two outputs on the chip, one being a low-skew divide by two of the other. For instance, if an 100 MHz input clock is used, the 542 can produce low-skew 50 MHz and 25 MHz clocks, or low skew 25 MHz and 12.5 MHz clocks. The chip has an all-chip power-down mode that stops the outputs low, and an OE pin that tri-states the outputs. See the 501, 502, 511, 512, and 525 for clock multipliers.

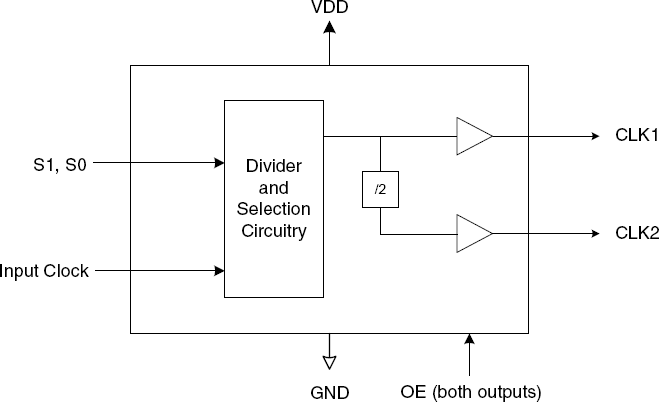

542 - Block Diagram
542 - Pinout
542 - Block Diagram
542 - Pinout
  • 8-pin SOIC package, Pb free
  • Available in RoHS compliant package
  • IDT's lowest cost clock divider
  • Low skew (500 ps) outputs. One is /2 of the other
  • Easy to use with other generators and buffers
  • Input clock frequency up to 156 MHz
  • Output clock duty cycle of 45/55
  • Power-down turns off chip
  • Output Enable
  • Advanced, low-power CMOS process
  • Operating voltage of 3.3 V or 5 V
  • Does not degrade phase noise - no PLL
  • Available in industrial and commercial temperature ranges
