Overview
Description
The 5PB1108 is a high-performance 1:8 LVCMOS clock buffer that offers a best-in-class additive phase jitter of 50fs RMS. This clock buffer also supports an Output Enable function. It is available in 16-pin QFN and TSSOP packages and can operate from a 1.8V to 3.3V supply.
Features
- High-performance 1:8 LVCMOS clock buffer
- Very low pin-to-pin skew: < 50ps
- Very low additive jitter: < 50fs
- Supply voltage: 1.8V to 3.3V
- fMAX = 200MHz
- Integrated serial termination for 50Ω channel

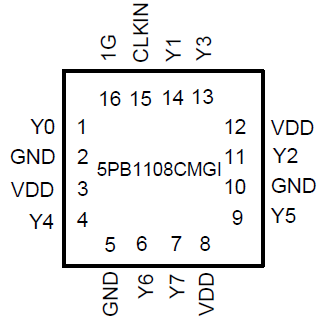

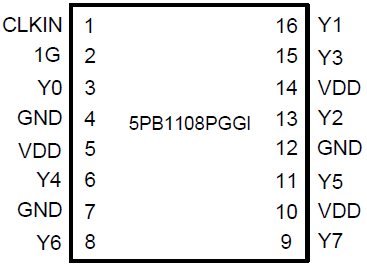

- Packaged in 16-pin TSSOP and small QFN packages
- Extended (-40 °C to +105 °C) temperature range
Comparison
Applications
- Industrial applications
- Automotive
- Radar, LiDAR, and other applications
