Overview

The 853S006I is a low skew, high performance 1-to-6 Differential-to-2.5V/3.3V LVPECL/ECL Fanout Buffer. The 853S006I is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 853S006I ideal for those clock distribution applications demanding well defined performance and repeatability.

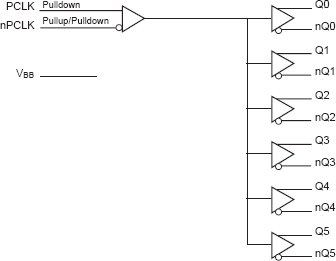

853S006I - Block Diagram
853S006I - Pinout
853S006I - Block Diagram
853S006I - Pinout
  • Six differential 2.5V, 3.3V LVPECL/ECL outputs
  • One differential PCLK, nPCLK input pair
  • PCLK, nPCLK pair can accept the following differential input levels: LVPECL, LVDS, CML
  • Maximum output frequency: 2GHz
  • Output skew: 50ps (max)
  • Part-to-part skew: 230ps (max)
  • Propagation delay: 550ps (max)
  • LVPECL mode operating voltage supply range: VCC = 2.375V to 3.465V, VEE = 0V
  • ECL mode operating voltage supply range: VCC = 0V, VEE = -2.375V to -3.465V
  • -40°C to 85°C ambient operating temperature
  • Available lead-free (RoHS 6) package
