Overview

This is the evaluation kit for the Renesas 8A34044 ClockMatrix Multichannel DPLL / DCO. The 8A34044 provides eight independent timing channels. Four of the channels can be configured as Digital PLLs (DPLLs) or as Digitally Controlled Oscillators (DCOs); and four of the channels are dedicated DCOs. The DPLL channels can be used for jitter attenuation and frequency translation. The DCOs can be programmed to synthesize the desired frequency and they can be steered by external software with resolution of  1.11E-16. The DPLLs can lock to virtually any frequency from 1kHz to 1GHz and the DPLLs and DCOs can generate virtually any frequency from 0.5Hz to 1GHz with typical jitter below 150fs RMS from 12kHz to 20MHz.

8A34xxx - 72QFN Evaluation Board (top)

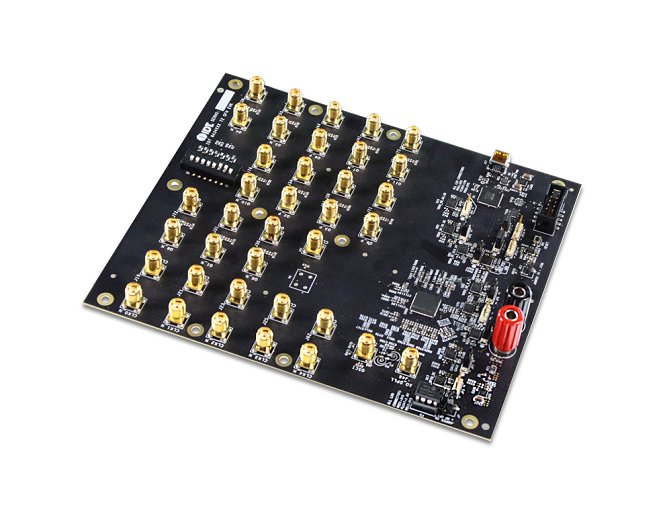

8A34xxx - 72QFN Evaluation Board (perspective)
8A34xxx - 72QFN Evaluation Board (top)
8A34xxx - 72QFN Evaluation Board (perspective)
  • 2 differential clock inputs
  • 4 differential outputs
  • 1 serial port channel
  • On-board EEPROM
  • 7 GPIO controls
  • Selectable voltage controls

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
8A34xxx 72QFN EVK User Manual
PDF 3.20 MB
1 item

Product Options

    Processing table
    Buy / Sample
    Part Number
    8A34044-EVK
    circleActive
    Samples Available
    Buy Now
    		Get Samples,
