Overview

The EVK-UFT285-6-7 is designed to help the customer evaluate the 8T49N285, 8T49N286, and 8T49N287 devices. When the board is connected to a PC running Renesas Timing CommanderTM software through USB, the device can be configured and programmed to generate frequencies with best-in-class performances.

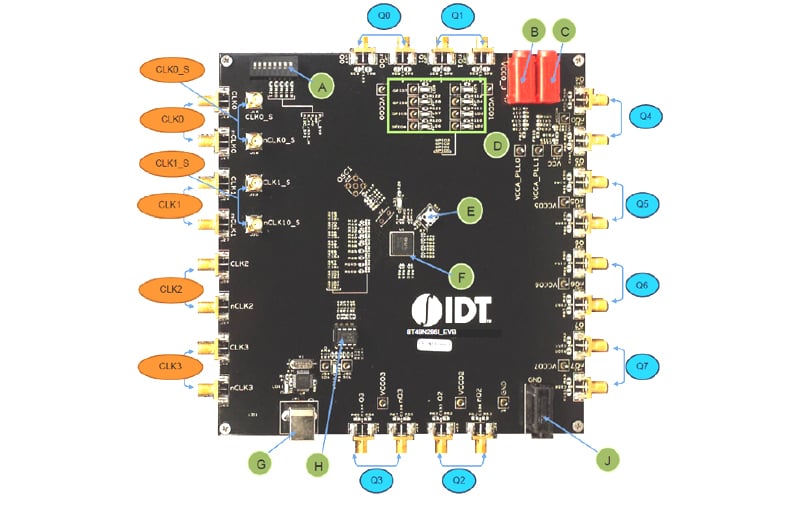

Evaluation Board EVK-UFT285-6-7-top view

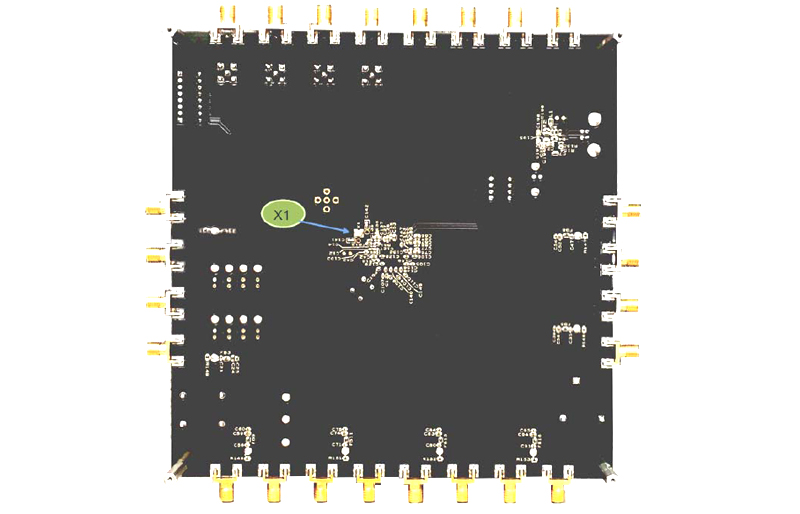

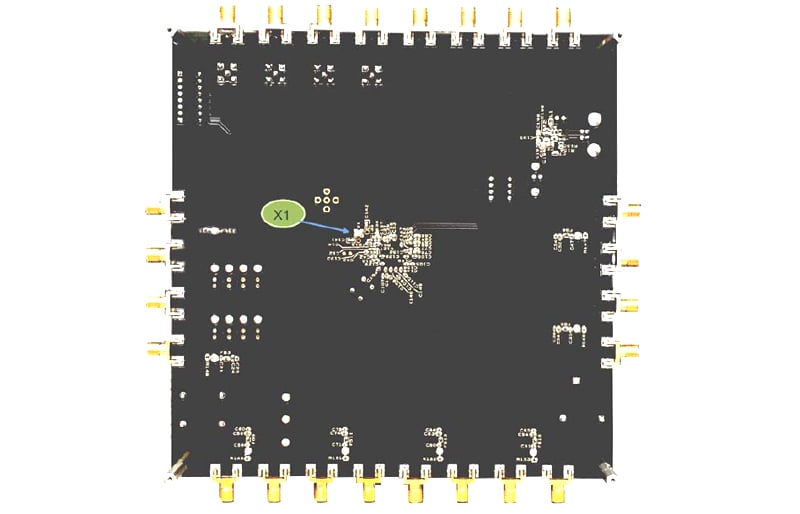

Evaluation Board EVK-UFT285-6-7-bottom view
Evaluation Board EVK-UFT285-6-7-top view
Evaluation Board EVK-UFT285-6-7-bottom view
  • Board comes pre-populated with the 8T49N286
  • Eight (8) LVPECL Outputs capable of generating any output frequency using Renesas Timing CommanderTM software
  • SMA connectors for each output pair
  • Outputs terminate to 50 ohms on a scope

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
EVK-UFT285-6-7 Evaluation Board User Guide
PDF 992 KB
Application Note
AN-871 Generating SyncE Line Cards Using IDT UFT3G
Log in to Download PDF 777 KB
2 items
