GR-SAKURA

Overview

The GR-SAKURA board features the RX63N MCU and offers an Arduino compatible board footprint and a C++ template and libraries. The GR-SAKURA board is available in a standard version and full-featured version.

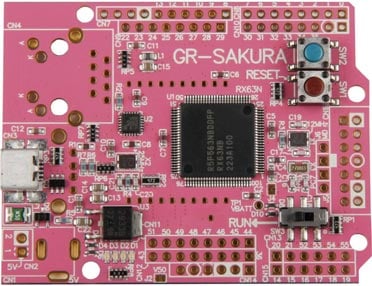

GR-SAKURA

Renesas' 32-bit RX63N Group MCU (R5F563NBDDFP) is on-board and Arduino UNO compatible pin-headers are ready for shields.

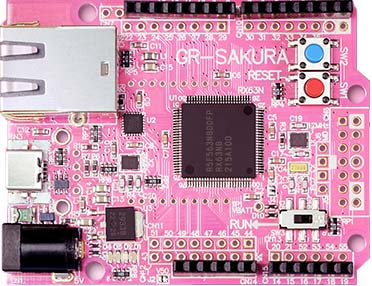

GR-SAKURA-FULL

Full version board has a LAN connector (RJ-45), USB host connector, DC power supply jack, and memory card shell.

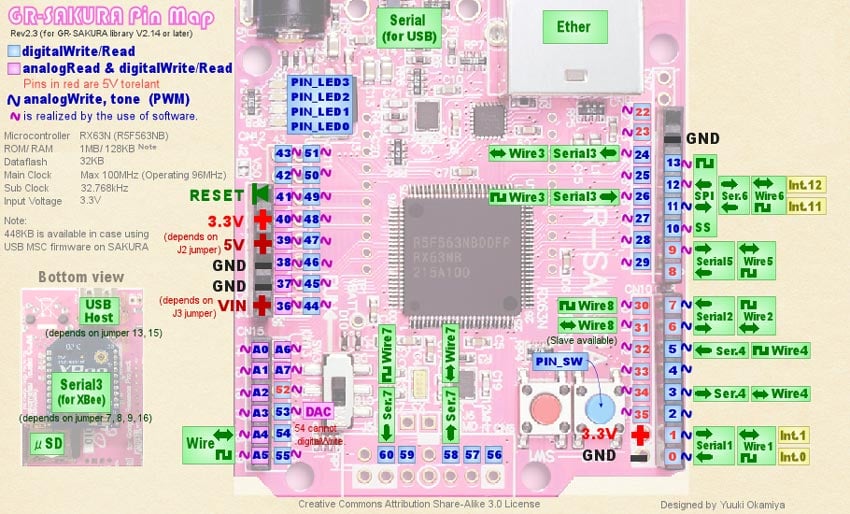

GR-SAKURA Pin Map

Detailed Specification

Microcontroller: RX63N (R5F563NBDDF P 100-pin QFP)
ROM/RAM: 1MB/128KB
Data Flash: 32KB
Frequency: 96MHz (using external 12MHz XO)
Sub Clock: 32.768kHz
Operating Voltage: 3.3V
Board Function: USB host/peripheral (exclusion), Ethernet, Micro SD jacket, XBee I/F, JTAG I/F, DC power jack (5V), user switch, reset switch, Arduino shield I/F, user LED, programmable like USB mass storage

Resources

Schematic/Design

gr-sakura-schematic-notes-20190917 (PDF)
BOM List
Layout

Sketch Reference

GR-SAKURA Sketch Reference

How to Program

Project File for e² studio

Project file for sketching in Eclipse-based development environment e² studio. For downloading and installing e² studio, please refer to the e² studio product page.

Click to download. Import the archive file (zip) as an existing workspace from the menu 'File' -> 'Import' in e² studio.
GR-SAKURA Sketch v223a Project File (ZIP)

Note: This is a project exported in e² studio version 7.6.

Technical Support

Technical Information

Let's Get Started with GR-SAKURA
This is a “getting started with” guide website for when you purchase the GR-SAKURA board. The kickstart guide for the GR-SAKURA board will direct you to this website.
GR-SAKURA User Forum
This is the Gadget Renesas User Forum on Renesas Engineering Community. In this forum space, you can find many showpiece applications using GR boards, as well as sample applications and programs. Post your query and let's discuss GR-SAKURA.
