Overview

This solution kit is for evaluation of TPS-1 PROFINET communication. This kit is certified by the PROFINET official conformance test.

How to Get

Product name: TPS-1 Evaluation Board
This kit is for rental in limited areas only. For details, please contact a Renesas sales channel.

TPS-1 Solution Kit Main Board

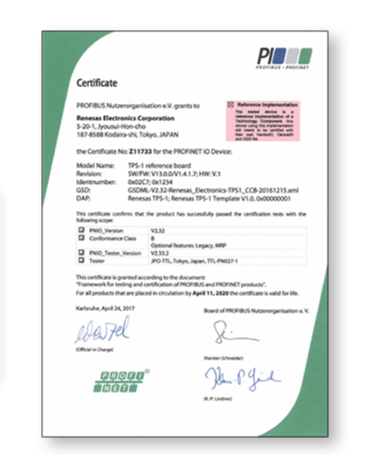

TPS-1 Solution Kit Certification
TPS-1 Solution Kit Contents
TPS-1 Solution Kit Main Board
TPS-1 Solution Kit Certification
TPS-1 Solution Kit Contents
  • Evaluation Boards (each board is 74 mm x 74 mm)
    • TPS-1 Main Board
    • I/O Board
    • CPU Board (RX231)
  • Sample Software
    • PROFINET Stack
    • CPU Host Program Interface for RX231
    • GSDML file for PROFINET communication
  • Documentation and Circuit Diagrams
    • TPS-1 Solution Board Startup Manual
    • OrCAD Data
    • Layout Data (PDF file and Altium)
