Overview
Description

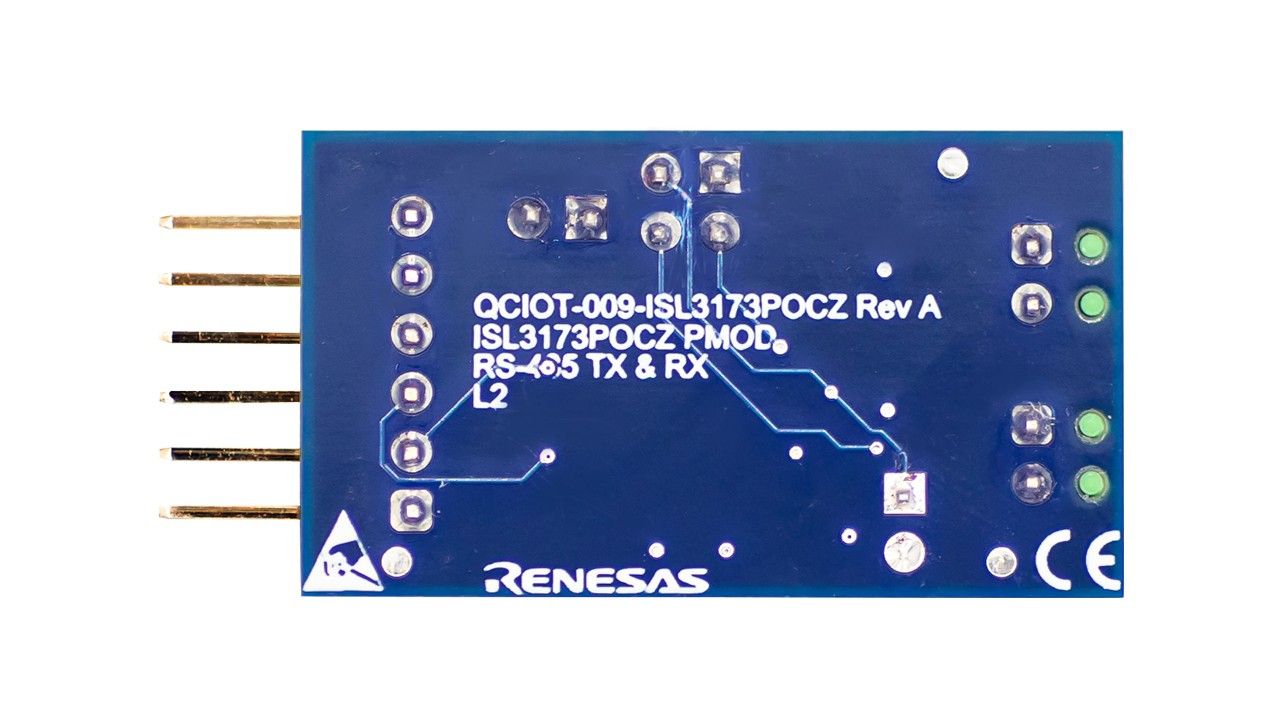

The QCIOT-ISL3173POCZ board enables the usage of the ISL3173 for RS485 communications. The board provides a standard PMOD™ Type 3 connection to plug into the MCU evaluation kit.
The QCIOT-ISL3173POCZ features a configurable interface that can be used in Half or Full Duplex mode. With its standard connector and software support, the QCIOT ISL3173POCZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
Features
- Configurable half and full duplex modes with
jumpers - Flow control support
- Configurable termination resistors
- High speed RS485 enables long distance
communications - Differential interface for noise immunity
- PMOD type 3 interface for easy connectivity
Applications
Applications
- Quick-Connect-IoT
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 2.12 MB | |
| Schematic | PDF 317 KB | |
2 items
|
||
