Partner device: Digital MIC PMOD TDK_ICS43434: Digital audio sensor
Overview
Description
The QuickConnect beginner's kit aims to provide an easy starter experience for the QuickConnect Platform. You can find support for all the boards included in the kit on QuickConnect Studio. The boards are modular and can be connected using standard Pmod™ connectors. It includes an MCU board, a Wi-Fi + Bluetooth® Low Energy (LE) connectivity board, and an assortment of sensors to enable rapid prototyping. It enables rapid software development and customization along with hardware prototyping. The QuickConnect beginner's kit can be used to build projects using AWS MQTT example applications and sensor data from sensors like humidity and temperature, air quality, and audio.

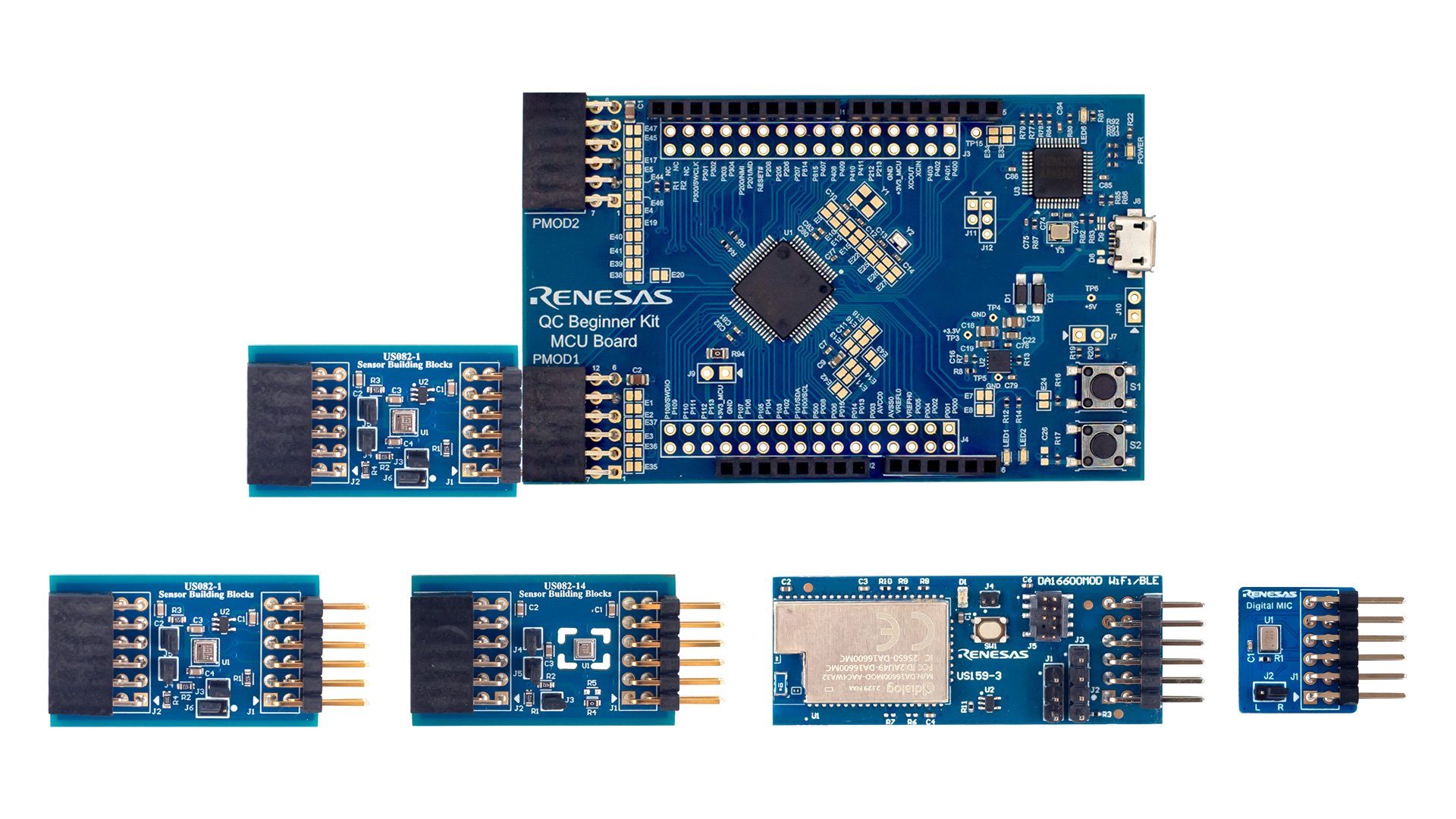

Boards included in the kit:
- RA6E2 Board: 200MHz Arm® Cortex®-M33 general-purpose MCU board
- DA16600 Pmod: Wi-Fi+Bluetooth LE board for cloud connectivity
- ZMOD4410 Pmod: TVOC gas sensor board
- ZMOD4510 Pmod: Ozone and NO2 gas sensor board
- HS4001 Pmod: Humidity and temperature sensor board
- Digital MIC Pmod TDK_ICS43434: Digital audio sensor board
Features
- Rapid prototyping using MCU, connectivity and sensors
- All boards are supported on QuickConnect Studio for system software development and customization
- Samples use cases for AWS connectivity and Renesas AI applications
- Mobile app available for Wi-Fi provisioning on Android and iOS
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 1.47 MB | |
| Application Note | PDF 1.15 MB | |
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
1 item
|
||
Related Boards & Kits
Ultra-Low-Power Wi-Fi + Bluetooth Low Energy Combo Pmod Board
The US159-DA16600EVZ is a highly integrated ultra-low-power Wi-Fi + Bluetooth® Low Energy (LE) combo Pmod™ module that provides a convenient way to add both low-power...
Featured Documents:
TVOC and Indoor Air Quality Sensor Pmod™ Board (Renesas QuickConnect IoT)
The US082-ZMOD4410EVZ board enables quick prototyping of the ZMOD4410 gas sensor module for indoor air quality (IAQ) in a custom system design. The board provides a...
Featured Documents:
Outdoor Air Quality Sensor Pmod™ Board (Renesas QuickConnect IoT)
The US082-ZMOD4510EVZ board enables quick prototyping of the ZMOD4510 gas sensor module for outdoor air quality (OAQ) in a custom system design. The board provides a...
Featured Documents:
Relative Humidity Sensor Pmod™ Board
The QCIOT-HS4001POCZ board enables quick prototyping of the HS4001 High-Performance Relative Humidity and Temperature Sensor in a custom system design. The board...
Featured Documents:
Lab on the Cloud
Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Sensor Mode Operation with Indoor Air Quality Sensor
This kit is a prototyping solution for AWS and Reality AI. It measures temperature, humidity, and air quality, and publishes sampled data via AWS MQTT to a subscribed client.
Sensor Mode Operation with Outdoor Air Quality Sensor
This kit is a prototyping solution for AWS connectivity and Reality AI. It measures temperature, humidity, and outdoor air quality, and publishes sampled data via AWS MQTT to a subscribed client.
Reality AI for Microphone
This board allows users to develop and test Reality AI for microphone demos using RA6E2 and Reality AI Tools. In voice recognition mode, it collects voice data via a digital microphone to identify 1KHz using Reality AI.
Processing table
QC-BEKITPOCZ Active Samples Available
