Evaluation Kit for RA6M4 MCU Group
The EK-RA6M4 evaluation kit enables users to effortlessly evaluate the features of the RA6M4 MCU Group and develop embedded systems applications using the Flexible...
Featured Documents:
Overview
Description

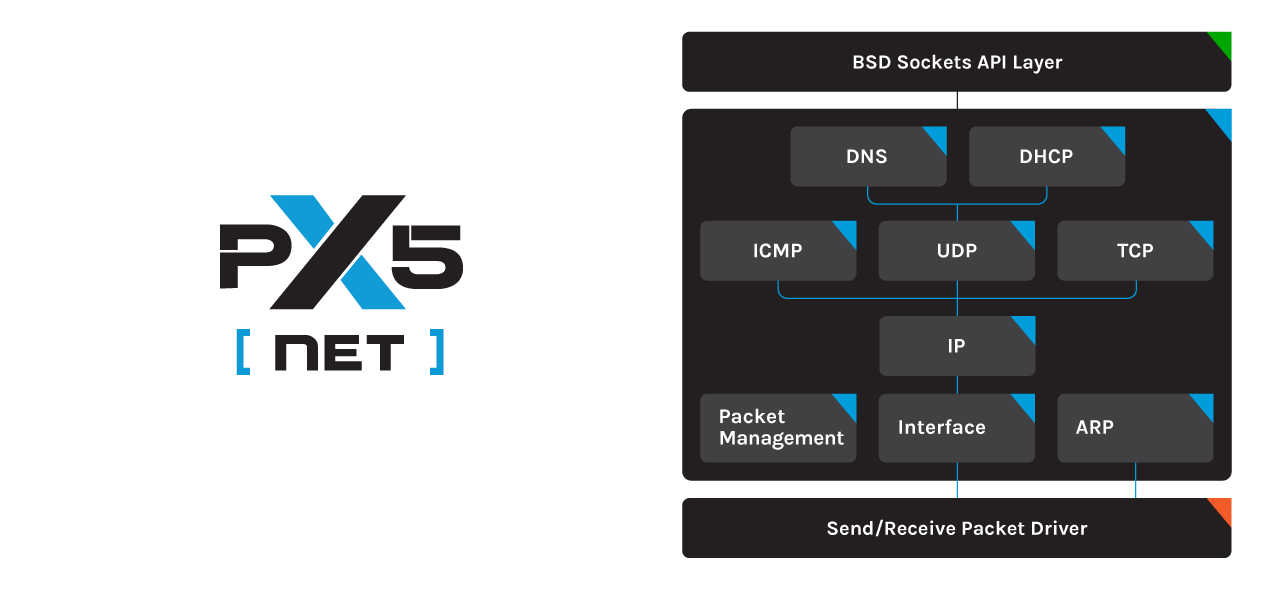

PX5 NET is an ultrasmall dual IPv4 and IPv6 TCP/IP networking stack featuring a native implementation of the BSD Sockets API. PX5 NET also provides high performance achieving near-wire-speed throughput using minimal processing cycles, and is ideal for the most demanding real-time networking needs for embedded systems. As for safety and security, it offers optional run-time buffer overflow detection and packet structure, function pointer, socket, and stack verification. PX5 NET is available today for the full range of RA Family MCUs, RX Family of MCUs, and RZ Family of MPUs. The example code can be downloaded from here free of charge.
Features
- IPv4 and IPv6 support
- Ultrasmall (less than 6KB Flash and 2KB RAM for minimal use)
- Ultra-high performance (near wire speed)
- Implementation of the industry standard BSD Sockets API
- Run-time buffer overflow detection for enhanced safety and security (optional)
- Dynamic verification of data packet integrity, function pointers, sockets, and stacks (optional)
- Royalty-free
Comparison
Applications
- Automotive
- Industrial IoT
- Smart cities
- Smart homes
- Smart sensors
- Consumer electronics
