Overview
Description

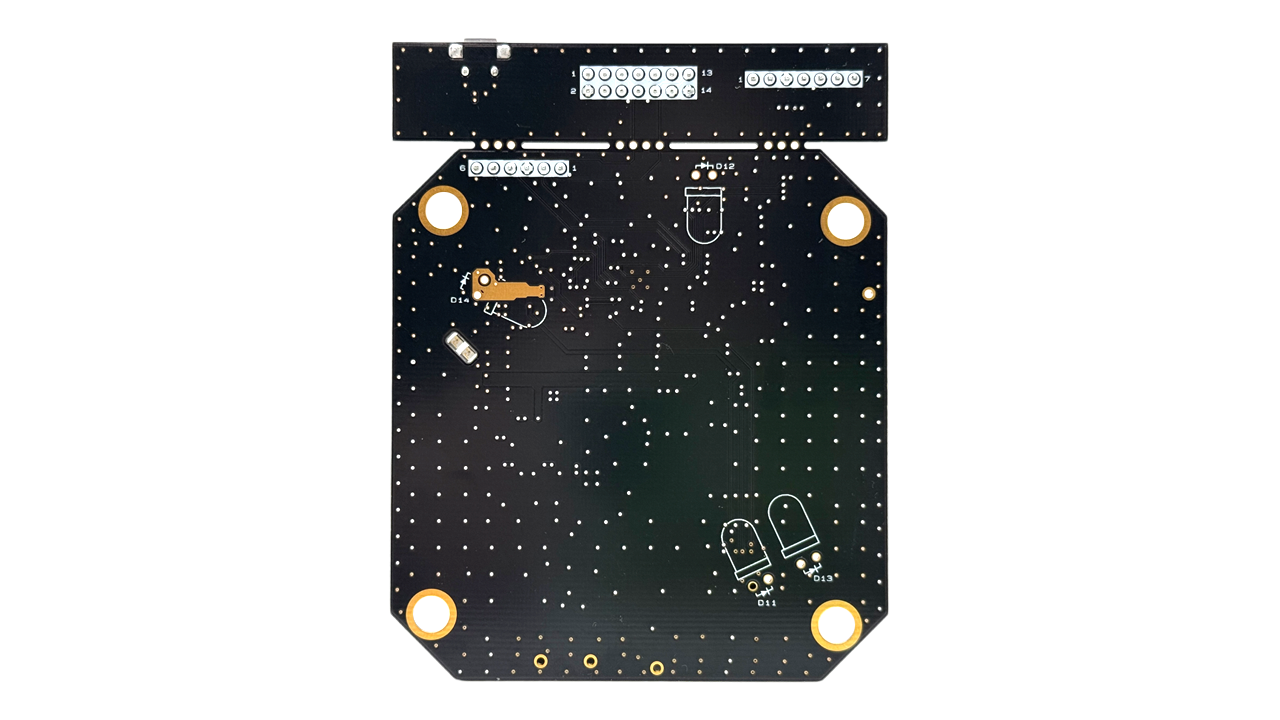

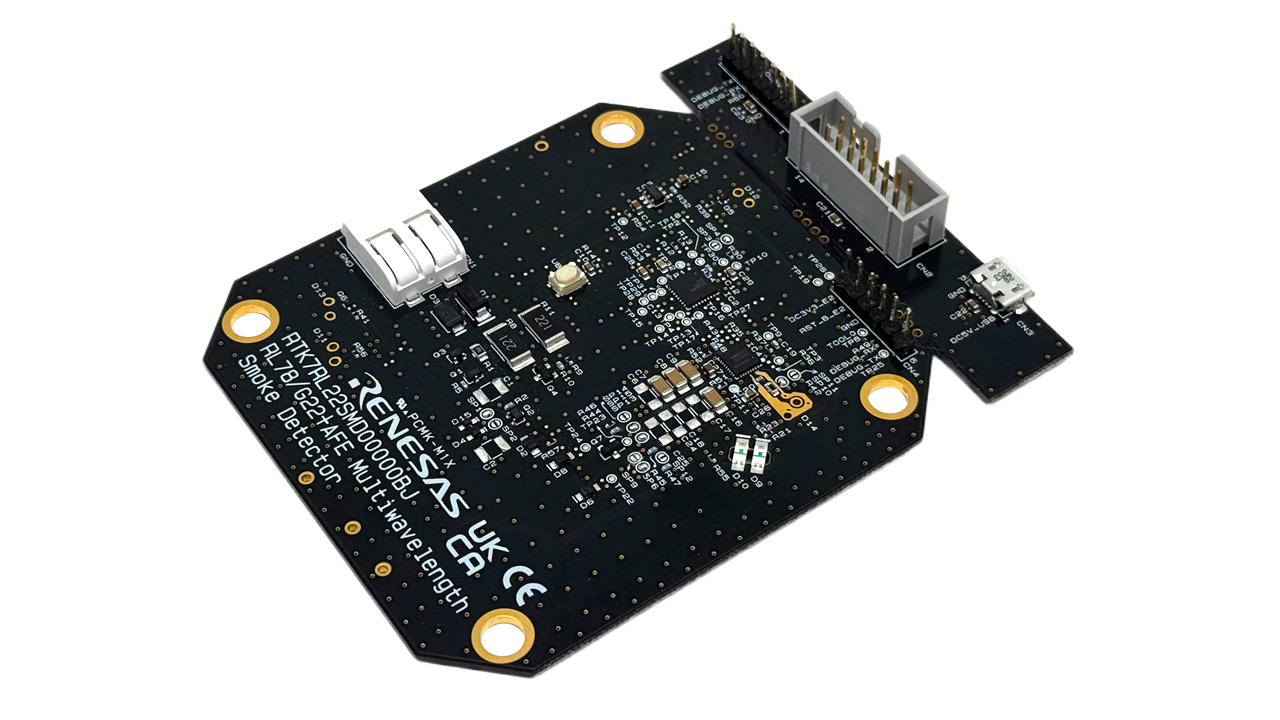

This reference design offers a multiwavelength smoke detector for commercial buildings. The board consists only of the RL78/G22 microcontroller, an analog front-end (AFE), LEDs, photodiodes, and several external components. Additionally, by utilizing the SNOOZE mode sequencer (SMS) of the RL78/G22, it enables ultra-low power consumption and high-precision smoke detection, allowing for a compact multi-wavelength smoke detector design.
Features
- Compact, low-power, high-performance MCU
- Integrated low-power AFE for photoelectric smoke detection that contains all necessary peripherals
- Minimal external components, achieving the lowest BOM and a smaller size
Applications
- Commercial and household smoke detector
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 1.26 MB | |
| Manual - Software | PDF 1.19 MB | |
| Application Note | PDF 840 KB | |
3 items
|
||
Design & Development
Videos & Training
Ultra-Low Power Smoke Detector Solution
This video introduces a highly sensitive, ultra-low power smoke detector solution. It covers the types of smoke detectors, various detection methods, and a multi-LED smoke detector solution designed to meet the updated UL standards. For more information, visit the Smoke Detector for Commercial Buildings page.
