Overview

Description

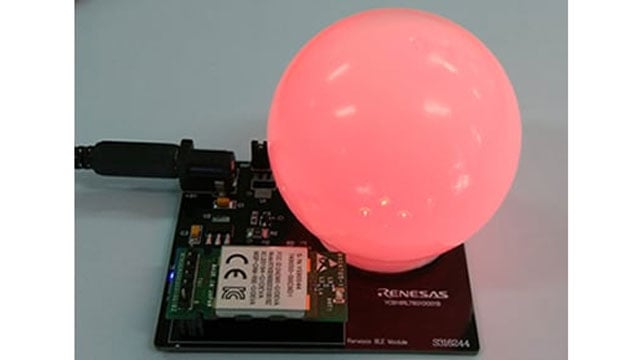

The luminescence of LED lighting can be easily adjusted by an application on your smartphone. This can be achieved in this reference design by using the RL78/G1D Bluetooth® low energy (BLE) microcontroller to connect to your smartphone.

Features

  • Main control board includes the RL78/G1D BLE module
  • The Flash ROM size of RL78/G1D is 256KB and the RAM size is 20KB
  • Peripheral board includes the power supply circuit, RGB LED and RGB LED driver circuit
  • RGB LED driver circuit is achieved through 3 channel transistors with 4 sets of RGB LEDs connected in parallel to increase the brightness
  • Connects to a smartphone application

Applications

Applications

  • Building Automation
  • Lighting
