Overview
Description
Renesas' Air Conditioner Outdoor Unit (ODU) reference design is a total solution for controlling outdoor air conditioning units. It is used in combination with the MCI-HV-AC which is AC200V high-voltage inverter board, communication board, and peripheral devices. It is capable of evaluating and developing dual motor control with the provided permanent magnet (PM) sensorless vector control sample code.
Features
- Reference design integrating the RX26T microcontroller and a 3-phase inverter circuit
- Dual motor control function (compressor and fan)
- Open-loop start (current pull-in control) during stop and low-speed operation
- PM sensorless vector control using induced voltage observer during medium to high-speed operation (1-shunt and 3-shunt)
- Flux weakening control for high-speed operation and maximum torque per ampere (MTPA) control for IPMSM
- Torque vibration suppression function, step-out detection, and flying start (catching control)
- Single-phase and interleaved PFC control (power factor correction and boost function)

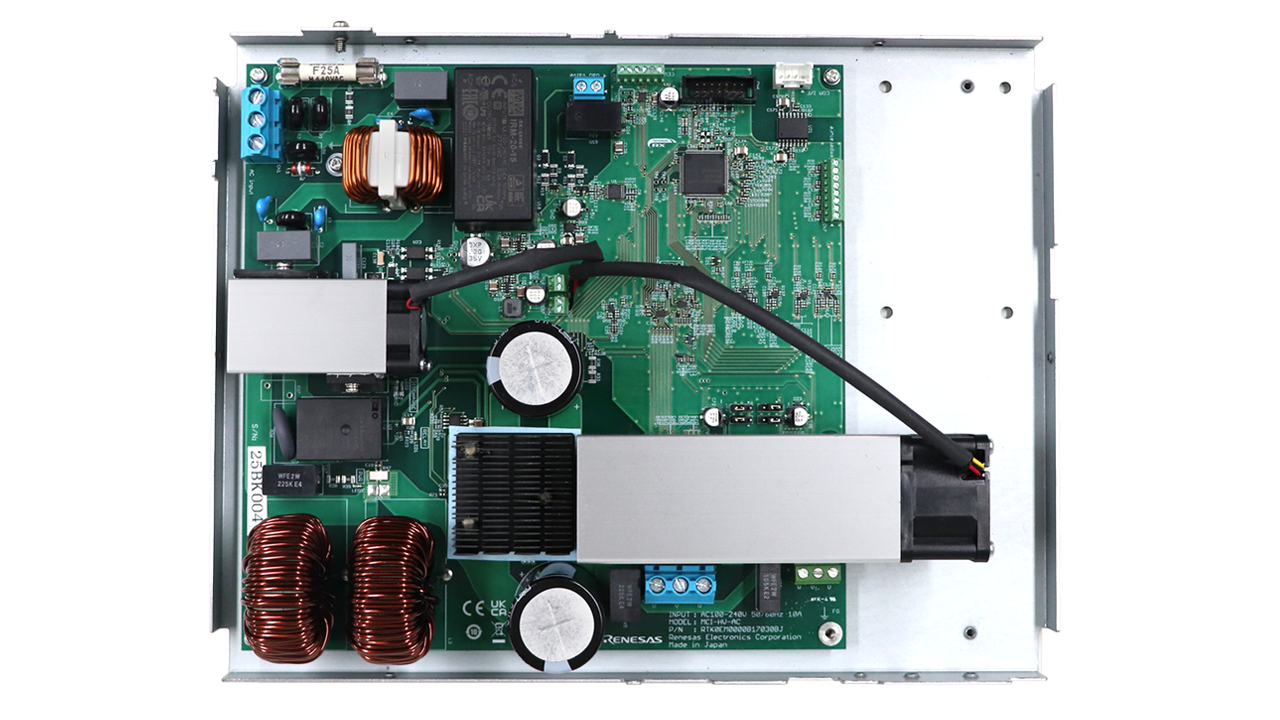

- MCI-HV-AC inverter board features
- Supports single-phase AC input (AC100V ~ 240V, 50Hz/60Hz)
- Supports 2-motor (compressor, fan) control
- Equipped with overcurrent detection, overvoltage protection, and overheat detection functions
- Equipped with a four-way valve and expansion valve control interface
- Equipped with temperature control sensor interface
- Equipped with air conditioner indoor unit communication interface
Applications
Air conditioner outdoor units
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 1.27 MB 日本語 | |
| Application Note | PDF 4.23 MB | |
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | Renesas |
| e² studio Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
4 items
|
||
