Overview
Description
Stream It! - RZ is a development kit for developing and evaluating applications such as camera input, LCD display, and Ethernet connection with the RZ/A1LU MPU. In addition, we have included an executable file for a streaming and web server demo so you can quickly evaluate the RZ/A1LU.
Get Started Using Stream It! (RZ/A Start-up page)
Contents
- STREAM IT! RZ V2 main board
- Touch/TFT module (4.3-inch)
- Camera module
- JTAG on-chip debugger
- Quick Start Guide
- User manual, demo applications, and more.
Features
- RZ/A1LU (R7S72103) CPU: Max. 400MHz, internal RAM 3MB, 208-pin 0.5mm-pitch QFP
- SDRAM 32MB, Serial Flash memory 64MB x 2
- JPEG compression in hardware
- Dual DDR QSPI interface for fast serial NOR flash memory
- Ethernet AVB for high-speed audio and video transfer
- Connectors
- SD Card Slot 1 pcs.
- LAN connector (RJ-45) 1 pcs.
- USB Series-A Receptacle: 1 pcs.
- User debug interface connector（Arm® JTAG 20）1 pcs.
- 4 pole mini-jack for audio (φ3.5) 3 pcs.
- CMOS camera connector 1 pcs.
- Serial port connector (USB Micro-B: Power source input) 1 pcs.
- LED: For power indication 1 pcs., User LED 1 pcs.
Applications
- Amusement equipment
- Building management systems
- DSC
- IoT
- Network cameras
- Video cameras
- Surveillance cameras
- STB
- Security systems
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 202 KB | |
| Application Note | PDF 319 KB | |
| Application Note | PDF 1.33 MB | |
| Application Note | PDF 1.17 MB | |
| Application Note | PDF 699 KB | |
| Application Note | PDF 637 KB | |
| Application Note | PDF 614 KB | |
7 items
|
||
Design & Development
Processing table
YSTREAM-IT-RZ-V2 Active
Buy Now
|
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training

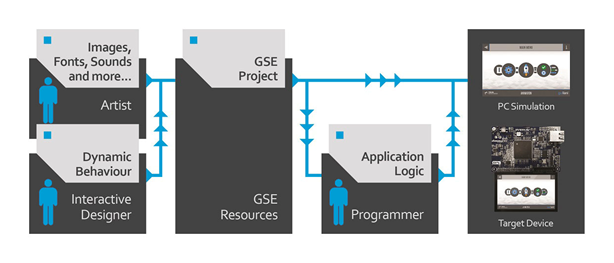

TES Guiliani Graphical User Interface on RZ/A Stream it! - RZ - V2.0!
