Overview

The RZ/T1-M group has the Arm® Cortex®-R4 Processor with FPU designed for real-time processing, capable of high-speed operation at up to 450 MHz. And by equipped with the MDIO interface, The RZ/T1-M group is ideal for applications such as optical modules. 6 x 6mm small package contributes to space saving.

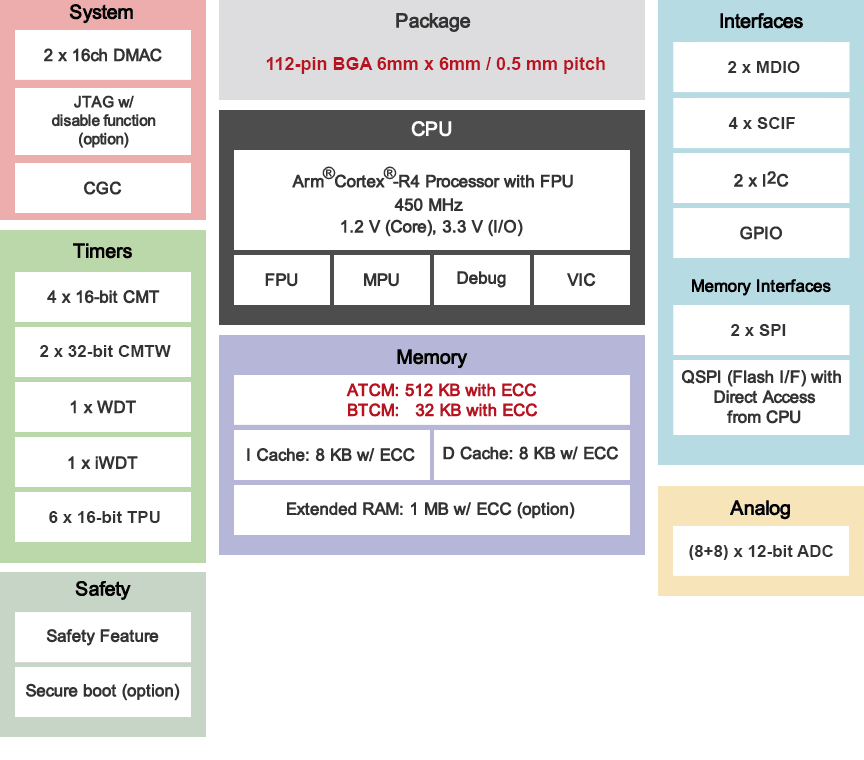

RZ/T1-M Block Diagram
RZ/T1-M Block Diagram
  • CPU: Arm® Cortex®-R4 Processor with FPU, 450MHz
  • Management data input / output interface(Slave/Master)
  • Memory: Tightly Coupled Memory 544KB(with ECC), Extended SRAM 1MB(with ECC, option)
  • Analog function: 12-bit A/D Converter Unit0 : 8ch,Unit1 : 8ch
  • Package: 112-pin FBGA
  • Voltage: Core 1.2V, I/O 3.3V

Applications

Optical modules

Documentation

Design & Development

Software & Tools
e² studio - information for RZ Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool Renesas
1 item

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Series Name
    Main CPU
    Operating Freq (Max) (MHz)
    Bit Size
    Sub CPU
    RAM (KB)
    DRAM I/F
    3D GPU
    Accelerator
    PCI Express (generation and ch)
    CAN (ch)
    Ethernet
    USB
    I/O Ports
    Pkg. Type
    Lead Count (#)
    Temp. Range
    PLP
    Data Flash (KB)
    RTC
    DMA
    Timer
    ADC
    Human Machine Interface
    Supply Voltage (V)
    CPU
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    R7S910023CBG#AC0
    circleNRND
    memory
    view_in_ar
    		RZ/T Cortex-R4F 450 32 - 1568 - - - - 0 - - 51 LFBGA 112 -40 to 110°C N/A 0 No Yes 16-bit x 10-ch, 32-bit x 2-ch 12-bit x 16-ch - 3 - 3.6 Cortex-R4F x 1 3
    R7S910022CBG#AC0
    circleNRND
    memory
    view_in_ar
    		RZ/T Cortex-R4F 450 32 - 544 - - - - 0 - - 51 LFBGA 112 -40 to 110°C N/A 0 No Yes 16-bit x 10-ch, 32-bit x 2-ch 12-bit x 16-ch - 3 - 3.6 Cortex-R4F x 1 3 23.93
    R7S910021CBG#AC0
    circleNRND
    memory
    view_in_ar
    		RZ/T Cortex-R4F 450 32 - 1568 - - - - 0 - - 51 LFBGA 112 -40 to 110°C N/A 0 No Yes 16-bit x 10-ch, 32-bit x 2-ch 12-bit x 16-ch - 3 - 3.6 Cortex-R4F x 1 3
    R7S910020CBG#AC0
    circleNRND
    memory
    view_in_ar
    		RZ/T Cortex-R4F 450 32 - 544 - - - - 0 - - 51 LFBGA 112 -40 to 110°C N/A 0 No Yes 16-bit x 10-ch, 32-bit x 2-ch 12-bit x 16-ch - 3 - 3.6 Cortex-R4F x 1 3 22
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
