Overview
Description

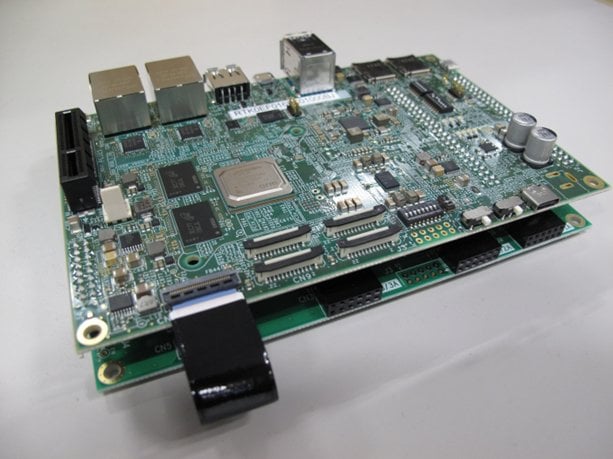

The RZ/V2H AI MPU evaluation kit (RTK0EF0168C04000BJ) is used to evaluate Renesas' RZ/V2H quad-core vision AI MPU. The kit includes a CPU board and an expansion (EXP) board. It supports RZ/V2H standard software packages and enables easy implementation of software development tasks such as low power consumption AI inference and video streaming. Additionally, this evaluation kit supports optional functions like the image signal processor (ISP), 3D graphics engine (GE3D), and Trusted Secure IP.
Features
- RZ/V2H Secure Evaluation Board (CPU Board):
- PMIC: RAA215300
- Clock generator: 5L35023B
- Main memory: LPDDR4X 8GB × 2
- xSPI Flash memory: 64MB
- External memory: Micro SD × 2
- High-speed interface:
- Gigabit Ethernet × 2 ports
- USB 3.2 Gen2 × 2ch (Host only)
- USB 2.0 × 2ch (On-the-Go (OTG) x 1ch, Host x 1ch)
- PCIe® Gen3 × 1ch (4 lanes max)
- MIPI® CSI-2® × 4ch
- MIPI DSI® × 1ch
- GPIO: 86 pins
- RZ/V2H-EVK Expansion Board (EXP Board):
- HDMI® Tx × 1
- Audio AUX connector × 1ch
- Audio MIC connector × 1ch
- Audio HP connector × 1ch
- Pmod™ × 4
- Box Content:
- RZ/V2H Secure Evaluation Board
- RZ/V2H-EVK Expansion Board
- FFC
- Heat sink with fan
- USB cable (type micro B – type A)
Note: AC adapter is not included. A standard USB Power Delivery adapter supporting a 100W power supply should be used with the platform.
Applications
Applications
- Robotics
- Automated Guided Vehicle (AGV)
- Autonomous Mobile Robot (AMR)
- Factory Automation (FA) Machine Vision
- Smart Retail
