Overview
Description

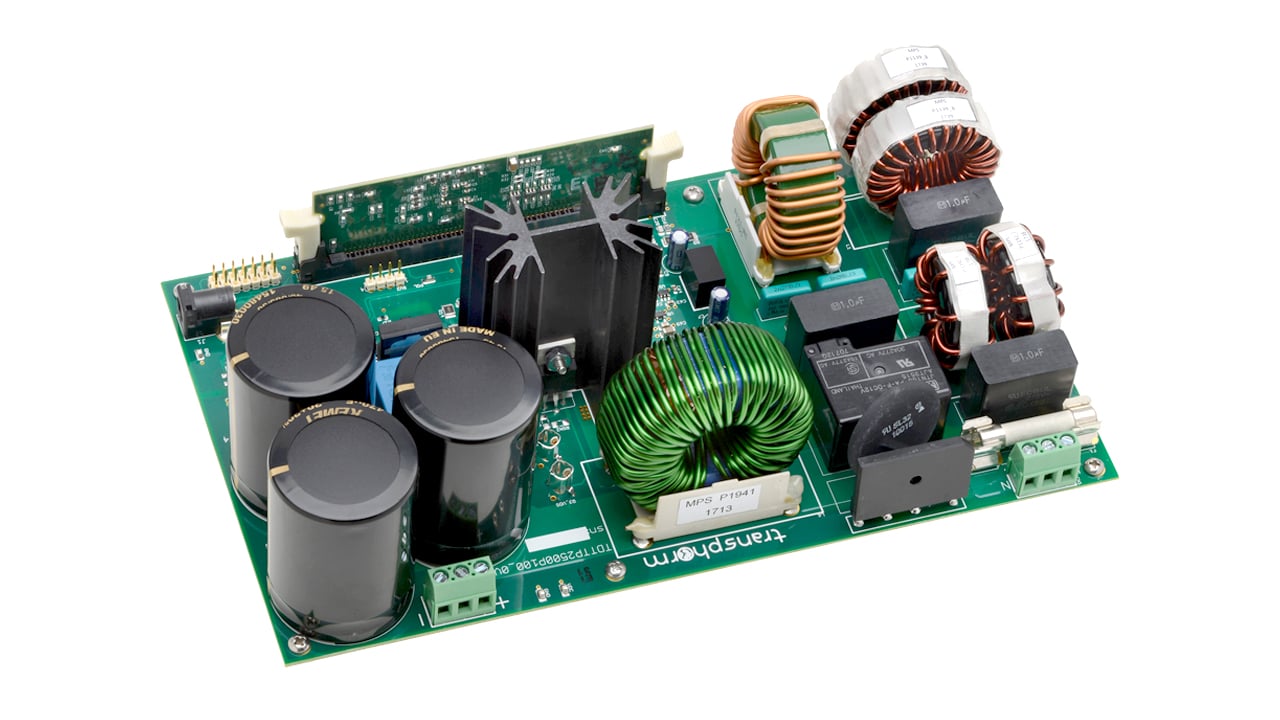

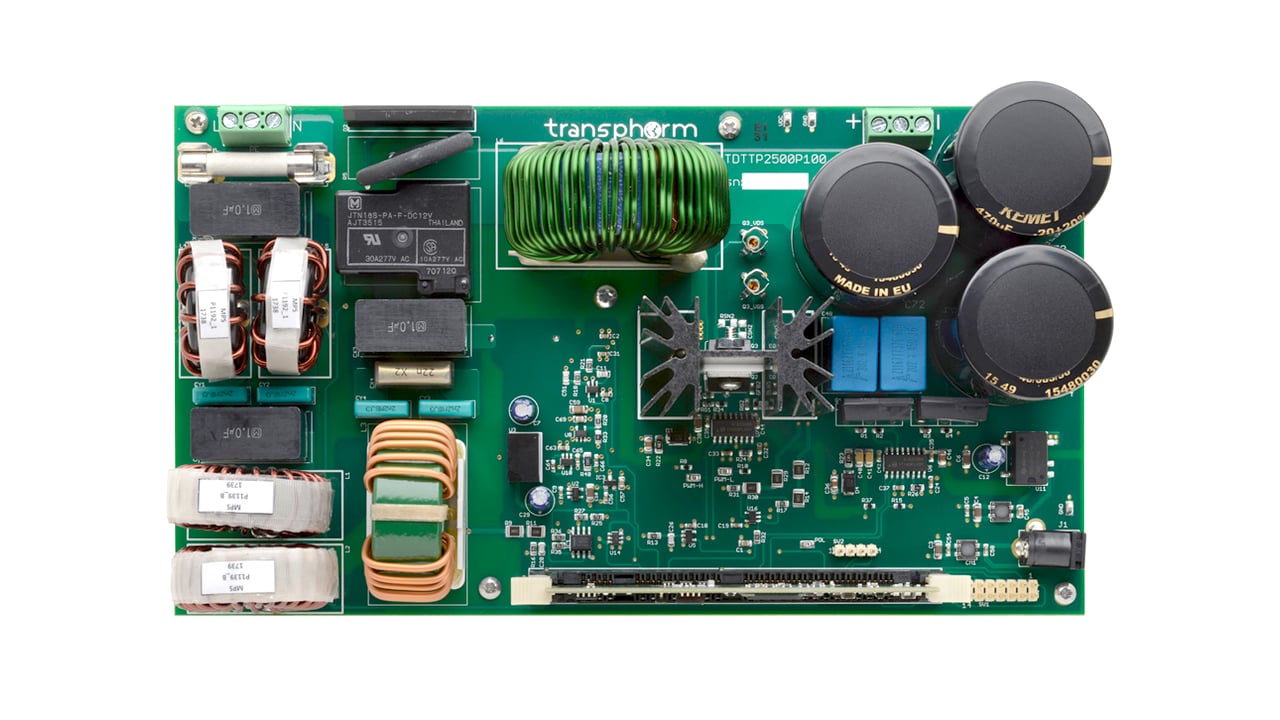

The TDTTP2500P100 2.5kW bridgeless totem-pole power factor correction (PFC) evaluation board achieves very high-efficiency single-phase AC-DC conversion. Using GaN FETs in the fast-switching leg of the circuit and low-resistance MOSFETs in the slow-switching leg of the circuit results in improved performance and efficiency.
Features
- Power: 2500W
- Switching frequency: 100kHz
- Features TPH3212PS
- Easy-to-use platform to investigate GaN
Applications
- Data center power supply
- Broad industrial power supply
Processing table
TDTTP2500P100-KIT Obsolete |
