Dual Output 25W Universal Input Flyback Evaluation Board
The RTKA223882DE0000BU is a dual output 25W universal input flyback evaluation board that features the RAA223882 700V regulator. The board demonstrates a low-cost,...
Featured Documents:
Overview
Description

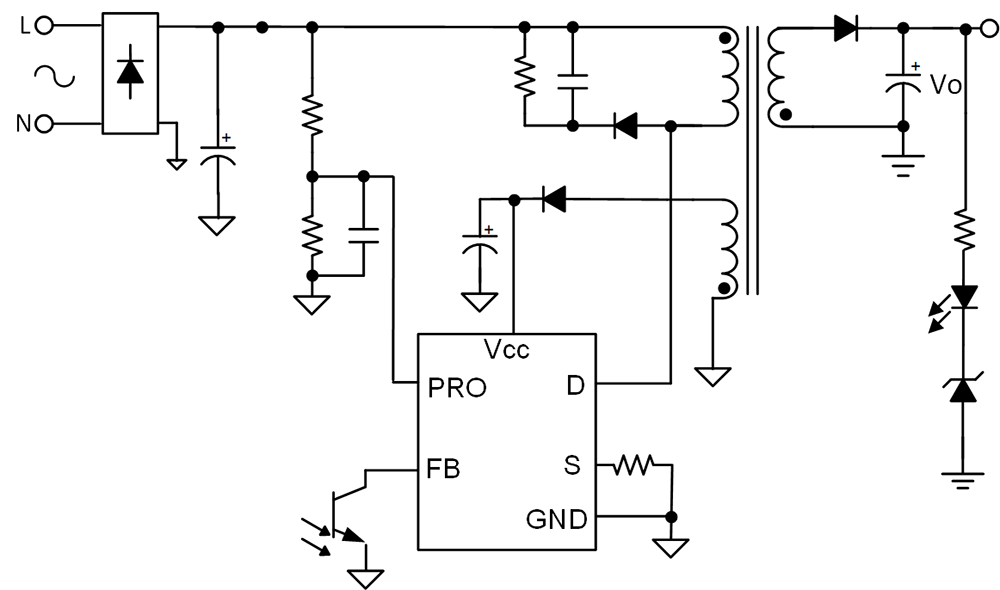

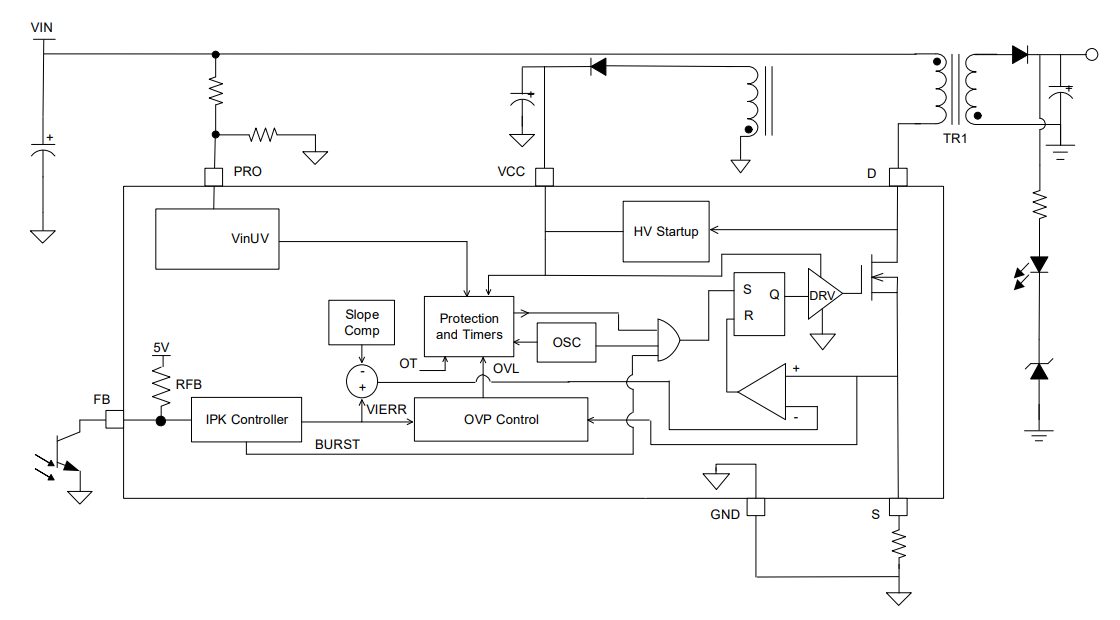

The RAA223882, an off-line flyback regulator with an integrated 700V power MOSFET, provides a cost-effective solution for high-input voltage applications such as appliances, air conditioners, and general-purpose isolated power supplies with 30W output. The flyback regulator operates with a constant switching frequency of 65kHz and employs current mode control. At light loads, it operates in burst mode to reduce power consumption and uses secondary-side feedback to provide excellent output voltage regulation. The RAA223882 features an integrated high-voltage (HV) startup for a low system-component count. It also provides frequency dithering to simplify EMI filter design. The device comes in a 7 Ld PDIP package.
Features
- Integrated with 700V 1.5Ω MOSFET
- Constant frequency PWM operation with current mode control
- Burst mode operation at light load
- Protections:
- Short-circuit protection (SCP)
- Overload protection (OLP)
- Input undervoltage protection (VINUV)
- VCC overvoltage protection (VCCOV)
- Output open-loop protection (OLP)
- Short-winding protection (SWP)
- Over-temperature protection (OTP)
Comparison
Applications
- Large appliances
- Air conditioners
- Industry equipment
- Auxiliary power supply for TV, set-top box, or LCD/LED monitor
