Overview

The ISL94212 Li-ion battery manager IC supervises up to 12 series connected cells. The part provides accurate monitoring, cell balancing and extensive system diagnostics functions. Three cell balancing modes are provided: Manual Balancing mode, Timed Balancing mode and Auto Balance mode. The Auto Balance mode terminates balancing functions when a charge transfer value has been met. The ISL94212 communicates to a host microcontroller via an SPI interface and to other ISL94212 devices using a robust, proprietary, two-wire Daisy Chain system. The ISL94212 is offered in a 64 Ld TQFP package and is specified for an operational temperature range of -40°C to +85°C.

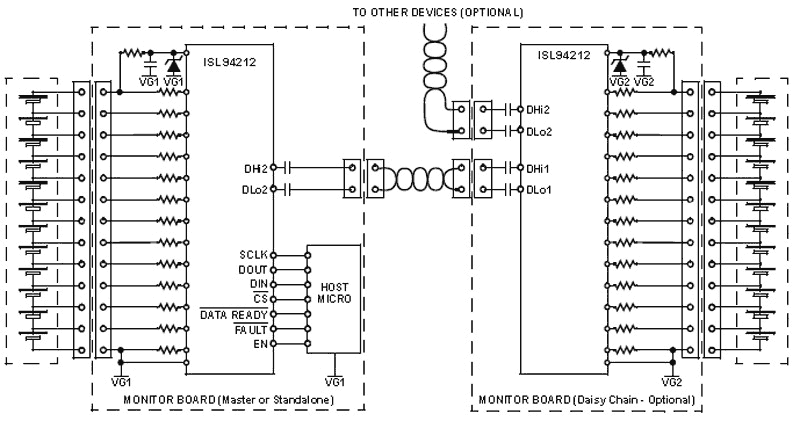

ISL94212 Functional Diagram
ISL94212 Functional Diagram
  • Up to 12-cell voltage monitors, support Li-Ion CoO2, Li-ion Mn2O4, and Li-ion FePO4 chemistries
  • Cell voltage measurement accuracy ±10mV
  • 13-bit cell voltage measurement
  • Pack voltage measurement accuracy ±180mV
  • 14-bit pack voltage and temperature measurements
  • Cell voltage scan rate of 19.5µs per cell (234µs to scan 12 cells)
  • Internal temperature monitoring
  • Up to four external temperature inputs
  • Robust daisy chain communications system
  • Integrated system diagnostics for all key internal functions
  • Hardwired and communications based fault notification
  • Integrated watchdog shuts down device if communication is lost
  • 7µA shutdown current: Enable = VSS
  • 2Mbps SPI

Applications

  • Hybrid, electric vehicle battery packs
  • Battery backup systems
  • E-Moto; E-Bike

Documentation

Design & Development

ISL94212EVKIT1Z Battery Manager Eval Kit

ISL94212EVKIT1Z

Evaluation
Learn More

Multi-Cell Li-Ion Battery Manager Evaluation Kit

The ISL94212EVKIT1Z is an evaluation kit that facilitates the use of the ISL94212 Li-ion battery manager IC. The ISL94212 monitors cell voltage and temperature. It...

Featured Documents:
ISL94212EVKIT1Z User Guide

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    ISL94212INZ
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    Buy Now
    		TQFP Tray 3 6.537 Get Samples,
    ISL94212INZ-T
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 TQFP Reel 3 7.025 Get Samples,
