Overview

The RAA788000 is a low-power, power-line current sensor for contactless AC current measurements in the range of 2A to 5000A. The device consists of an on-chip Rogowski coil, a buffer amplifier, and a signal amplifier.

From an alternating power-line current, the magnetic flux flows through the on-chip coil, generating an electromotive force (EMF) that is amplified and filtered by a signal amplifier.

The amplifier output is typically fed into an analog-to-digital converter with a subsequent signal processor that calculates the current magnitude.

The RAA788000 operates from a single 2.7V to 3.6V supply. The device is available in a small 16 Ld TSSOP package and has an operation specified for the temperature range from -40°C to +105°C.

The RAA788000 is available in a 16 Ld thin shrink small outline package (TSSOP).

RAA788000 Block Diagram
RAA788000 Typical Application

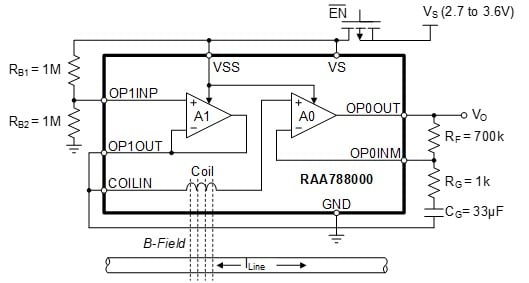

RAA788000 Typical Application with Enable
RAA788000 Pin Assignments
RAA788000 Block Diagram
RAA788000 Typical Application
RAA788000 Typical Application with Enable
RAA788000 Pin Assignments
  • On-chip coil sensor
  • Low noise density: En = 50nV/√Hz at 10Hz
  • Low supply voltage: VS = 2.7V to 3.6V
  • Temperature range: -40°C to +105°C
  • Small 16 Ld TSSOP package

Applications

  • Power-line current measurements
  • Watt meters

Documentation

= Featured Documentation
Type Title Date
Datasheet
RAA788000 Datasheet
PDF 1.36 MB
Product Reliability Report
RAA788000 Reliability Report
PDF 179 KB
2 items

Design & Development

Software & Tools
iSim:PE Offline Simulation Tool
iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
 Simulator Renesas
1 item

Software Downloads
Type Title Date
Software & Tools - Other
RAA788000 Design Tool
Log in to Download XLSX 101 KB
1 item
RTKA788000DE0010BU - Angle

RTKA788000DE0010BU

Evaluation
Learn More

RAA788000 Stacked Sensor Topology Evaluation Board, Two Current Sensor ICs, Current Measurement 80A, 2.7V to 3.6V Vin

The RTKA788000DE0010BU evaluation board allows the measurement of power line currents up to 80A.

The board includes two RAA788000 current sensor ICs in stacked sensor...

Featured Documents:
RTKA788000DE0010BU Evaluation Board Manual
RTKA788000DE0000BU - Angle

RTKA788000DE0000BU

Evaluation
Learn More

RAA788000 Opposite Sensor Topology Evaluation Board, Two Current Sensor IC, 40A Current Measurement, 2.7V to 3.6V Vin

The RTKA788000DE0000BU evaluation board allows for the measurement of power line currents up to 40A.

The board includes two RAA788000 current sensor ICs in an opposite...

Featured Documents:
RTKA788000DE0000BU Evaluation Board Manual
