Overview
Description

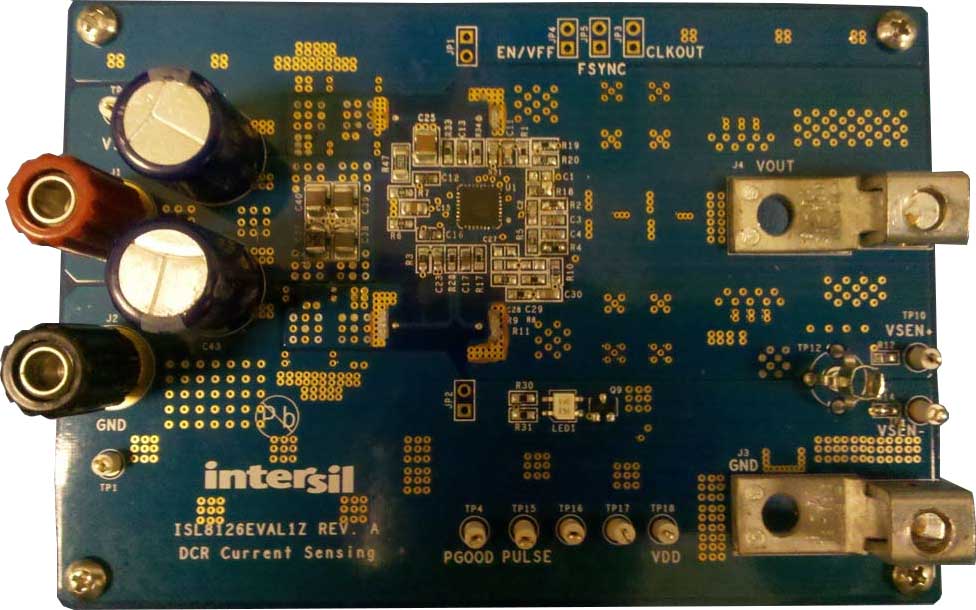

The ISL8126 dual/n-phase buck PWM controller with integrated drivers integrates two voltage-mode synchronous buck PWM controllers. It can be used either for dual independent outputs or a 2-phase single-output regulator. The ISL8126EVAL1Z evaluation board is used for a performance demo of the 2-phase single-output application.
Features
- Input voltage (VIN): 10V to 16V
- Output voltage (VOUT): 1.18V to 1.22V
- Rated current: 50A
- Switching frequency: 350kHz
- VOUT peak-to-peak ripple: 16mVP-P
Applications
- Power supply for datacom/telecom and POL
- Paralleling power module
- Wide and narrow input voltage range buck regulators
