Overview

The ISL8502A is a synchronous buck controller with internal MOSFETs packaged in a small 4mmx4mm QFN package. The ISL8502A can support a continuous load of 2A and has a very wide input voltage range. With the switching MOSFETs integrated into the IC, the complete regulator footprint can be very small and provide a much more efficient solution than a linear regulator. The ISL8502A is capable of stand-alone operation or it can be used in a master slave combination for multiple outputs that are derived from the same input rail. Multiple slave channels (up to six) can be synchronized. This method minimizes the EMI and beat frequencies effect with multi-channel operation. The switching PWM controller drives two internal N-Channel MOSFETs in a synchronous-rectified buck converter topology. The synchronous buck converter uses voltage-mode control with fast transient response. The switching regulator provides a maximum static regulation tolerance of ±1% over line, load, and temperature ranges. The output is user-adjustable by means of external resistors down to 0. 6V. The output is monitored for undervoltage events. The switching regulator also has overcurrent protection. Thermal shutdown is integrated. The ISL8502A features a bi-directional Enable pin that allows the part to pull the enable pin low during fault detection. PGOOD delay for ISL8502A has been decreased to 1ms typical (at 500kHz switching frequency) compared to 250ms (at 500kHz) for ISL8502.

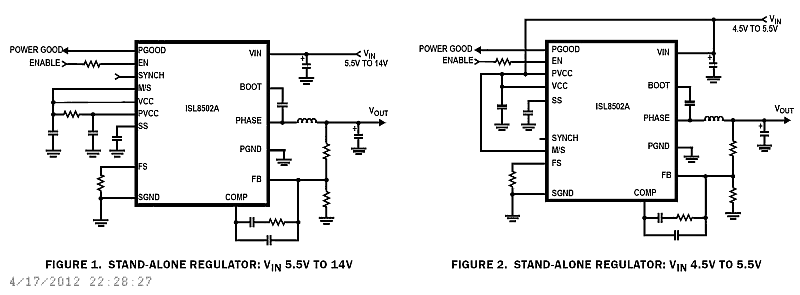

ISL8502A Functional Diagram
ISL8502A Functional Diagram
  • Up to 2A Continuous Output Current
  • Integrated MOSFETs for Small Regulator Footprint
  • Adjustable Switching Frequency, 500kHz to 1.2MHz
  • Tight Output Voltage Regulation, ±1% Over-temperature
  • Wide Input Voltage Range, 5V ±10% or 5.5V to 14V
  • Wide Output Voltage Range, from 0.6V
  • Simple Single-Loop Voltage-Mode PWM Control Design
  • Input Voltage Feed-Forward for Constant Modulator Gain
  • Fast PWM Converter Transient Response
  • Lossless rDS(ON) High Side and Low Side Overcurrent Protections
  • Undervoltage Detection
  • Integrated Thermal Shutdown Protection
  • Power-Good Indication
  • Adjustable Soft-Start
  • Start-Up with Pre-Bias Output
  • Pb-free (RoHS Compliant)

Applications

  • Point of Load Applications
  • Graphics Cards - GPU and Memory Supplies
  • ASIC Power Supplies
  • Embedded Processor and I/O Supplies
  • DSP Supplies

Documentation

= Featured Documentation
Type Title Date
Datasheet
ISL8502A Datasheet
PDF 1.06 MB
End Of Life Notice
PLC21060 - End of Life Notice
PDF 603 KB
Application Note
AN9208: High Frequency Power Converters
PDF 592 KB
Product Change Notice
PCN15046 - Wafer Fabrication Site Change for Listed Intersil Products - Global Foundry P6 Process transfer to Palm Bay - Phase II
PDF 398 KB
Application Note
AN1681: Grounding Techniques
PDF 509 KB
Application Note
AN1684: Nonideality of Ground
PDF 397 KB
Application Note
AN9210: A New Pspice Subcircuit For The Power MOSFET Featuring Global Temperature Options
PDF 650 KB
Application Note
AN9209: A Spice-2 Subcircuit Representation For Power MOSFETs Using Empirical Methods
PDF 387 KB
Application Note
AN7244: Understanding Power MOSFETs
PDF 349 KB
9 items

Design & Development

Software & Tools
iSim:PE Offline Simulation Tool
iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
Downloads
ISL8502A iSim:PE Model
 Simulator Renesas
1 item

ISL8502AEVAL1Z

Evaluation
Learn More

2A Synchronous Buck Regulator with Integrated MOSFETs Evaluation Board

The ISL8502AEVAL1Z evaluation board is used to evaluate the ISL8502A synchronous buck controller with internal MOSFETs.

The ISL8502A is a synchronous buck controller...

Featured Documents:
ISL8502AEVAL1Z User Guide

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    Buy / Sample
    Part Number
    ISL8502AIRZ
    circleObsolete
    memory
    spa
    view_in_ar
    		QFN Tube 750
    ISL8502AIRZ-T
    circleObsolete
    memory
    spa
    view_in_ar
    		QFN Reel 6000
