Overview

The RTKA211320DE0030BU board evaluates the RAA211320, a DC/DC synchronous step-down regulator with current mode Constant On Time (COT) control. The RAA211320 supports a wide input voltage range (from 4.5V to 30V) and adjustable output voltage. It delivers up to continuous 2A output current.

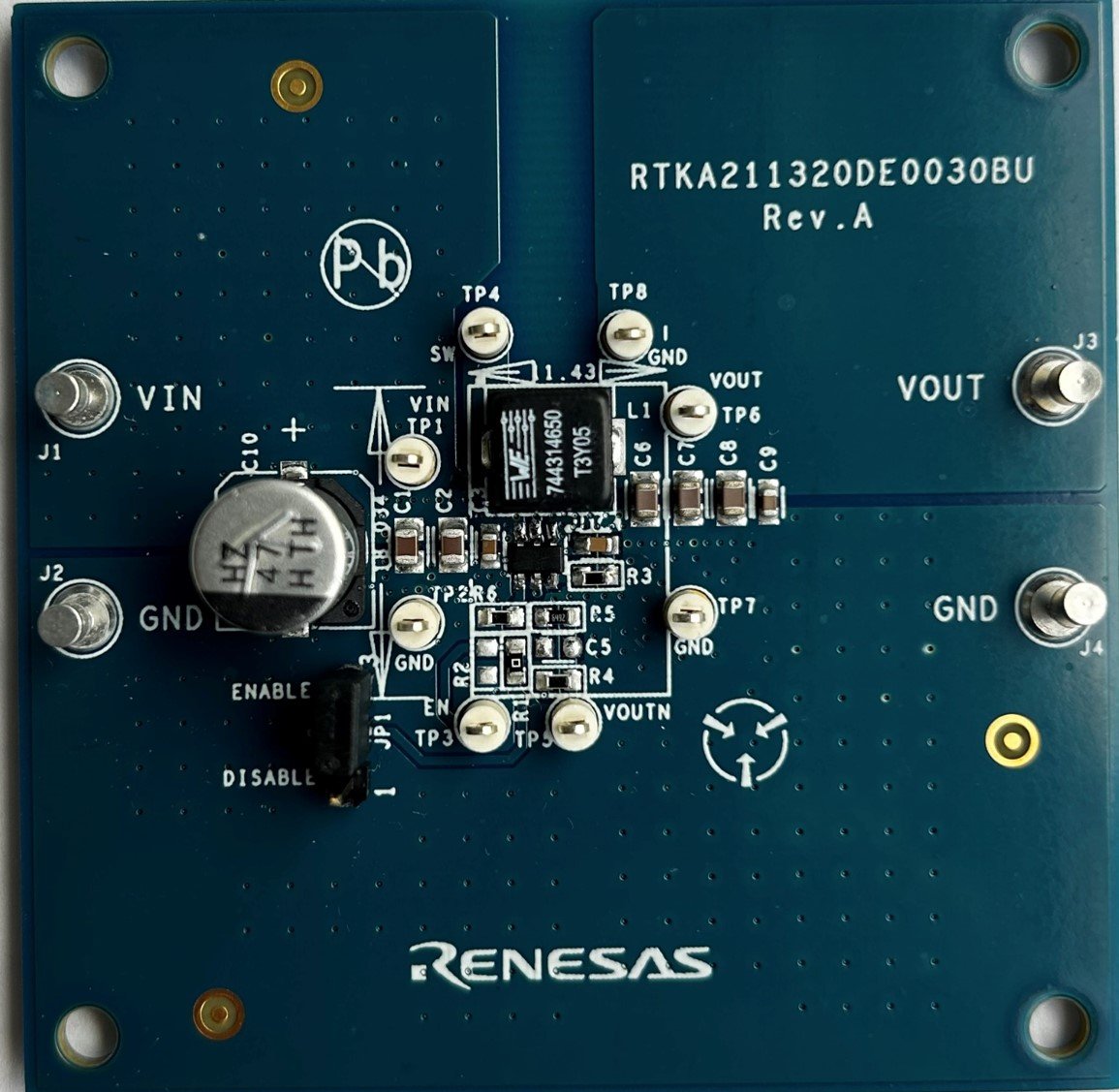

RTKA211320DE0030BU Evaluation Board
RTKA211320DE0030BU Evaluation Board
  • Simple and flexible design
  • Input voltage range: 4.5V to 30V
  • Output voltage: 3.3V
  • Up to 2A output current capability
  • Operating temperature range: -40°C to +125°C

Applications

  • General purpose POL
  • Industrial power supplies
  • Embedded systems and I/O supplies

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
RTKA211320DE0030BU Evaluation Board Manual
PDF 1.41 MB
Other
RAA211320 Design Spreadsheet
XLSX 142 KB
