Overview

The RAA211320 is an integrated 30V, 2A synchronous buck regulator with current mode constant on-time (COT) control. The RAA211320 features comprehensive protection including input undervoltage lockout (UVLO), overcurrent protection (OCP), output undervoltage protection (OUVP), and over-temperature protection (OTP).

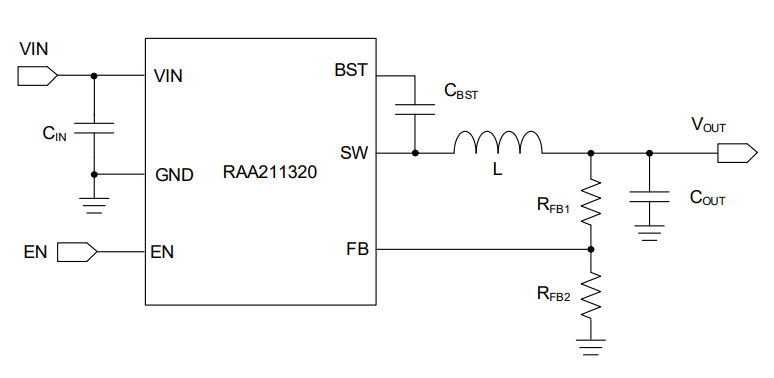

RAA211320 Typical Application Circuit Diagram
RAA211320 Diagram with VIN UVLO Programming by ENABLE
RAA211320 Typical Application Circuit Diagram
RAA211320 Diagram with VIN UVLO Programming by ENABLE
  • 4.5V to 30V input supply range
  • Up to 2A output current
  • Integrated high-side (125mΩ) and low-side (75mΩ) MOSFETs
  • 400μA quiescent current
  • Minimum on-time of 70ns & Minimum off-time of 225ns
  • 0.765V reference voltage with 2% accuracy
  • PFM mode under light load condition
  • Current mode Constant On-Time (COT) control with internal compensation
  • Internal 0.8ms soft start time
  • Protection: Low-Side Overcurrent (LSOC) limit, input Undervoltage Lockout (UVLO), Over-Temperature Protection (OTP), Output Undervoltage Protection (OUVP) with Hiccup Mode
  • Accurate EN threshold
  • 6 LD TSOT23 package

Applications

  • General purpose
  • Industrial power supplies
  • Embedded systems and I/O supplies

Documentation

= Featured Documentation
Type Title Date
Datasheet
RAA211320 Datasheet
PDF 5.23 MB
Other
RAA211320 Design Spreadsheet
XLSX 142 KB
2 items

Design & Development

Software & Tools
iSim:PE Offline Simulation Tool
iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
Downloads
RAA211320 Startup iSim:PE ModelRAA211320 AC Analysis iSim:PE Model
 Simulator Renesas
1 item
RTKA211320DE0030BU Evaluation Board

RTKA211320DE0030BU

Evaluation
Learn More

RAA211320 Synchronous Buck Evaluation Board with 4.5V to 30V Input Range, 3.3V 2A Output

The RTKA211320DE0030BU board evaluates the RAA211320, a DC/DC synchronous step-down regulator with current mode Constant On Time (COT) control. The RAA211320 supports a...

Featured Documents:
RTKA211320DE0030BU Evaluation Board Manual

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    PLP
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    RAA2113204GP3#JA0
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    Buy Now
    		2033 Dec TSOT Reel 1 0.7868 Get Samples,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Videos & Training

    Compact Buck Regulators with COT Control

    Renesas’ RAA211230/320 family of synchronous buck regulators are integrated with current mode constant on-time (COT) control which enables fast transient response while shrinking the output filter size. Visit renesas.com/cot-regulators to learn more about how these high performance, compact and pin-compatible COT regulators will make designing your power supply easy!

    Video List
    Compact Buck Regulators with COT Control
