Overview
Description

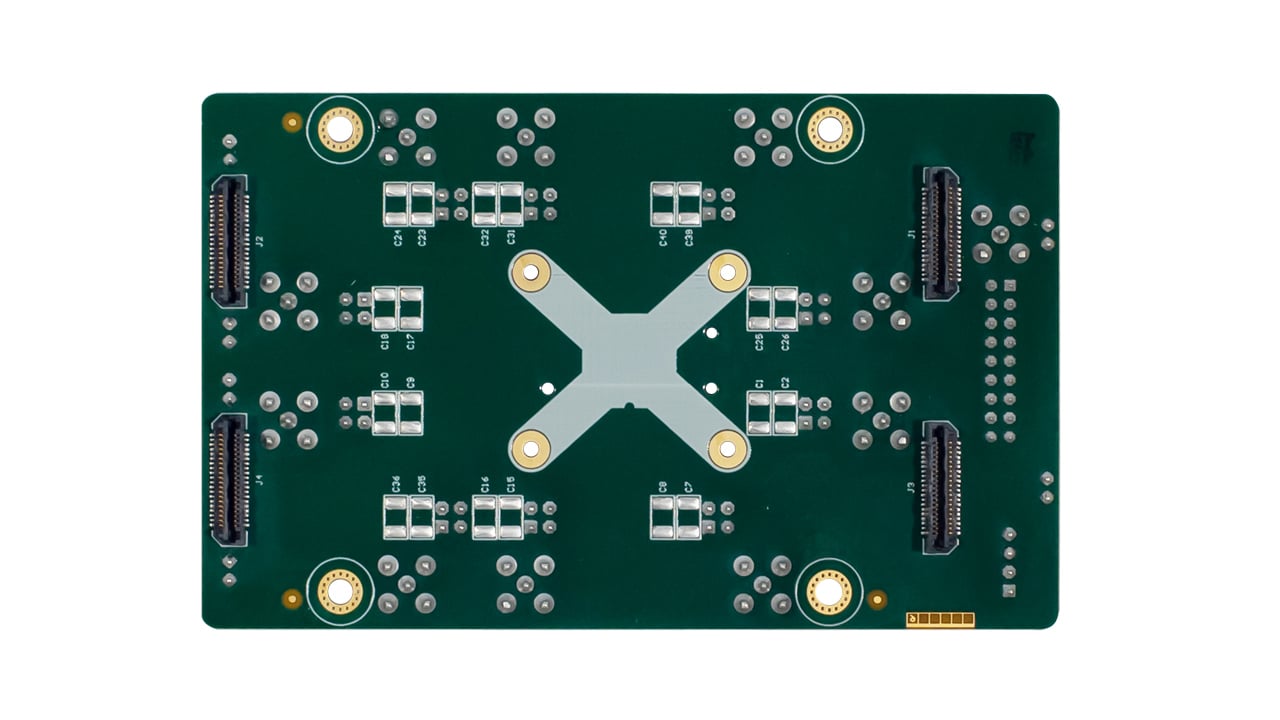

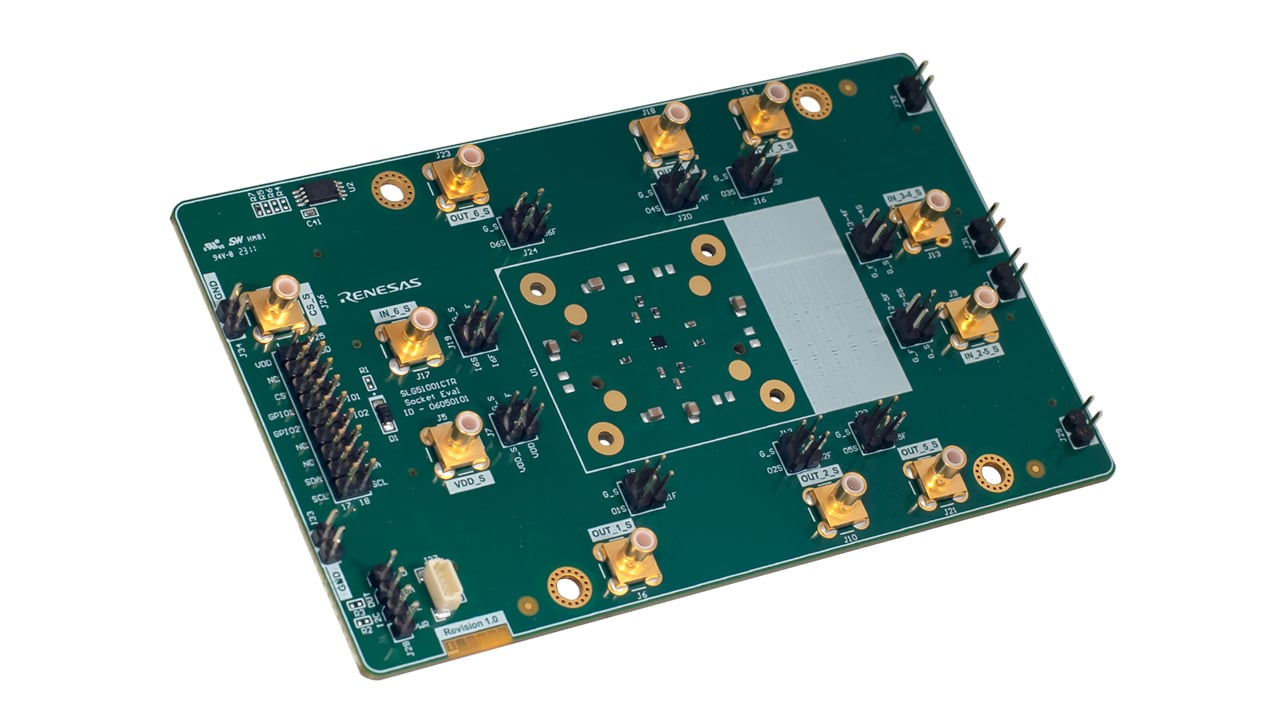

The SLG51001C evaluation board (EVB) provides programming, emulation, and testing functions for the SLG51001C high PSRR, low noise multi-output LDO IC. Working in pair with the Go Configure™ Software Hub it can be used as:
- A standalone board
- With the GreenPAK Serial Debugger
- With the Power GreenPAK Development Motherboard
Features
- LDO input and output connectors with Kelvin sense
- RF connectors for each LDO input and output channel
- GPIO connector
- GreenPAK Serial Debugger connector for quick debugging
- Power GreenPAK Development Motherboard connector for advanced prototyping
Applications
