Overview
Description

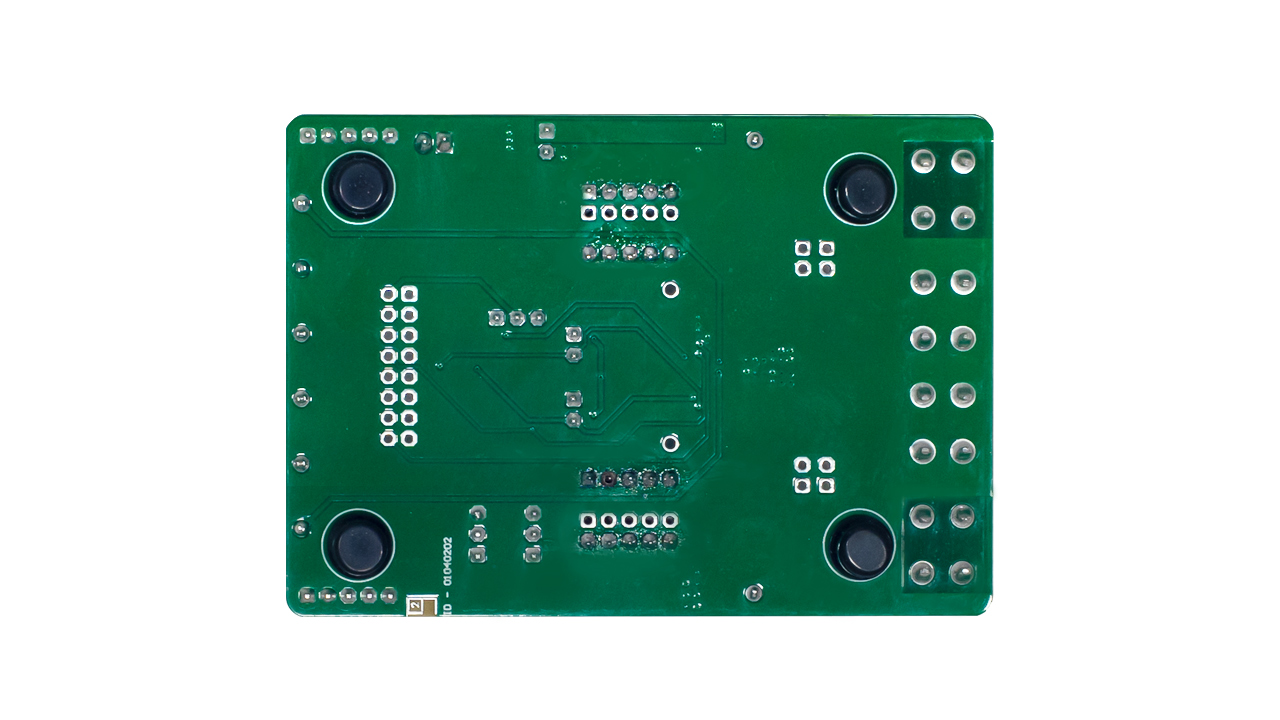

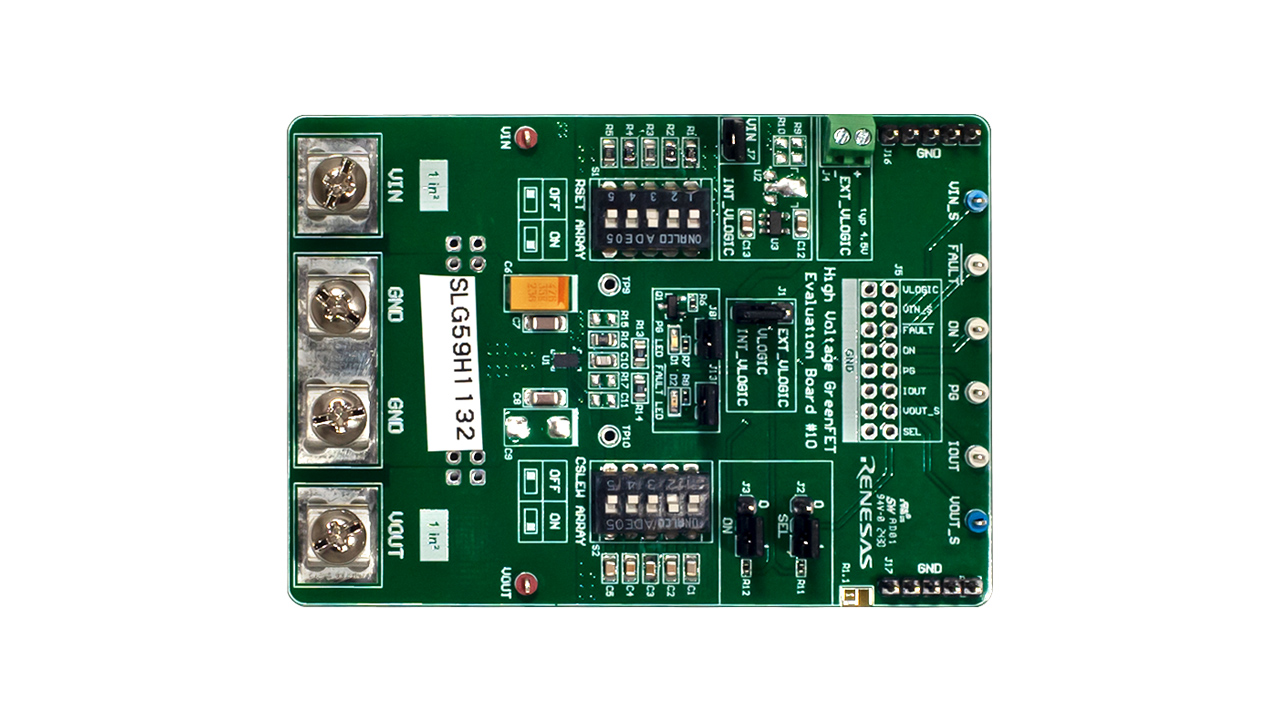

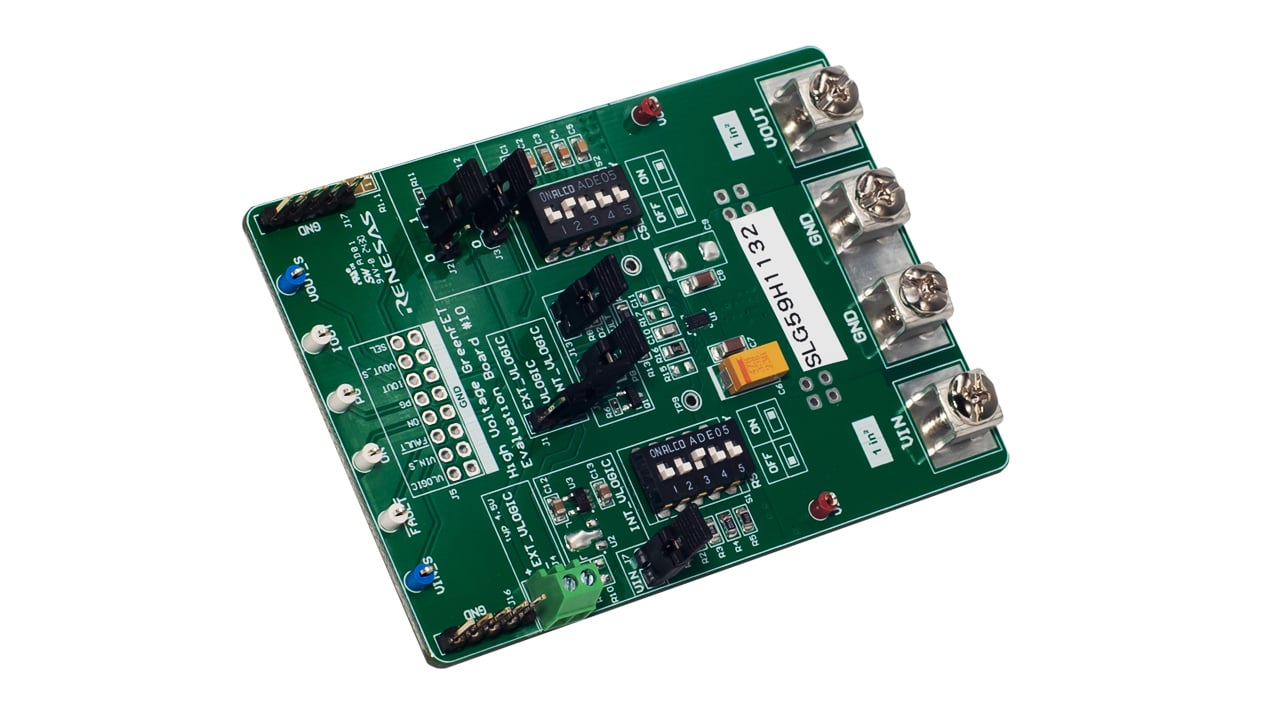

This evaluation board provides a full range of features for evaluating the SLG59H1132V load switch. It operates under the following conditions:
- VIN Voltage: 4.5V to 22V
- Load Current: up to 6A
Features
- Screw Terminals for VIN, VOUT, GND
- Internal VLOGIC regulator
- External VLOGIC terminal
- 6 hooks + pin header for probe connection
- DIP switches for RSET and CSLEW arrays
- 2-pos pin headers for ON/SEL configuration
- LEDs for PG and FAULT indication
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 1.84 MB | |
1 item
|
||
Processing table
SLG59H1132V-EVB Active |
