SLG59M1603V Evaluation Board
The SLG59M1603V-EVB board evaluates the SLG59M1603V GreenFET, Dual N-Channel Load Switch.
Overview
Description

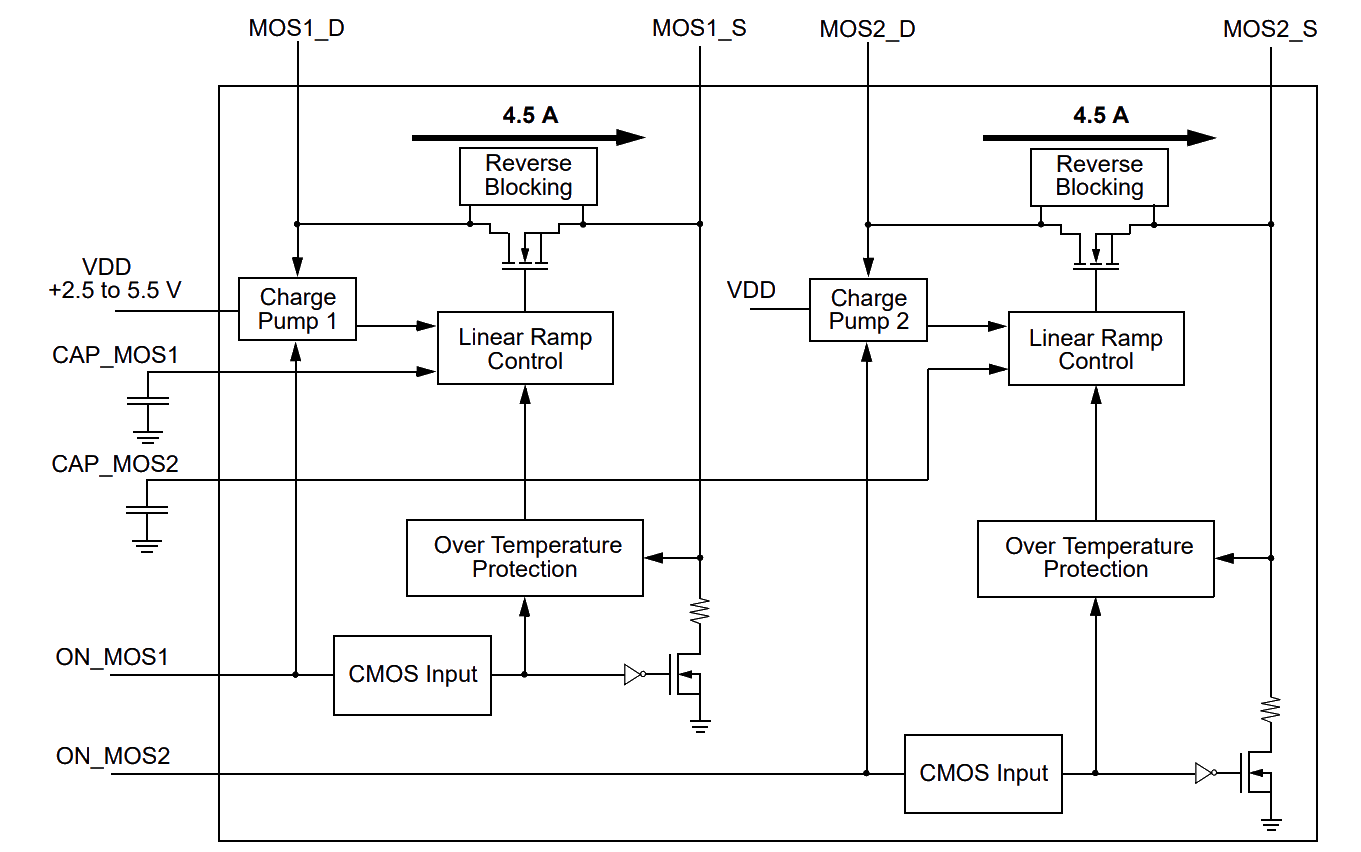

The SLG59M1603V dual N-channel load switch is designed for power switching applications. The part comes with two 4.5A-rated MOSFETs switched on by two ON control pins. The turn-on time for each MOSFET is independently adjusted by an external capacitor.
Features
- Optimized for high-current point-of-load applications
- Power supply: 2.5V ≤ VDD ≤ 5.5V
- Input voltage range: 0.85V ≤ VD ≤ VDD
- 16mΩ RDSON while supporting 4.5A
- Output voltage slew-rate control by an external capacitor
- Over-temperature protection
- Output discharge circuitry
Comparison
Applications
Applications
- Ideal for switching ON and OFF S0 +5.0 and 3.3V power rails with associated support circuitry discharges
- Ideal for switching ON and OFF power rails 5.5V or less
- Can use either channel up to 4.5A with a combined maximum current of 8.5A
- Maximum load capacitance of 1000μF for each Channel Source terminal
