Overview

The SLG47001V-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The SLG47001V-SKT kit includes the SLG4SA20AL-20x30 socket adapter and 50 SLG47001V GreenPAK programmable mixed-signal matrix IC samples.

Used with SLG46xxxV-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.

The SLG47001V GreenPAK programmable mixed-signal matrix provides a small, low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG47001V. This highly versatile device allows the design of a wide variety of mixed-signal functions within a single compact, low-power integrated circuit.

SLG47001V-SKT Socket Adapter
SLG47001V-SKT Socket Adapter - Top
SLG47001V-SKT Socket Adapter - Bottom

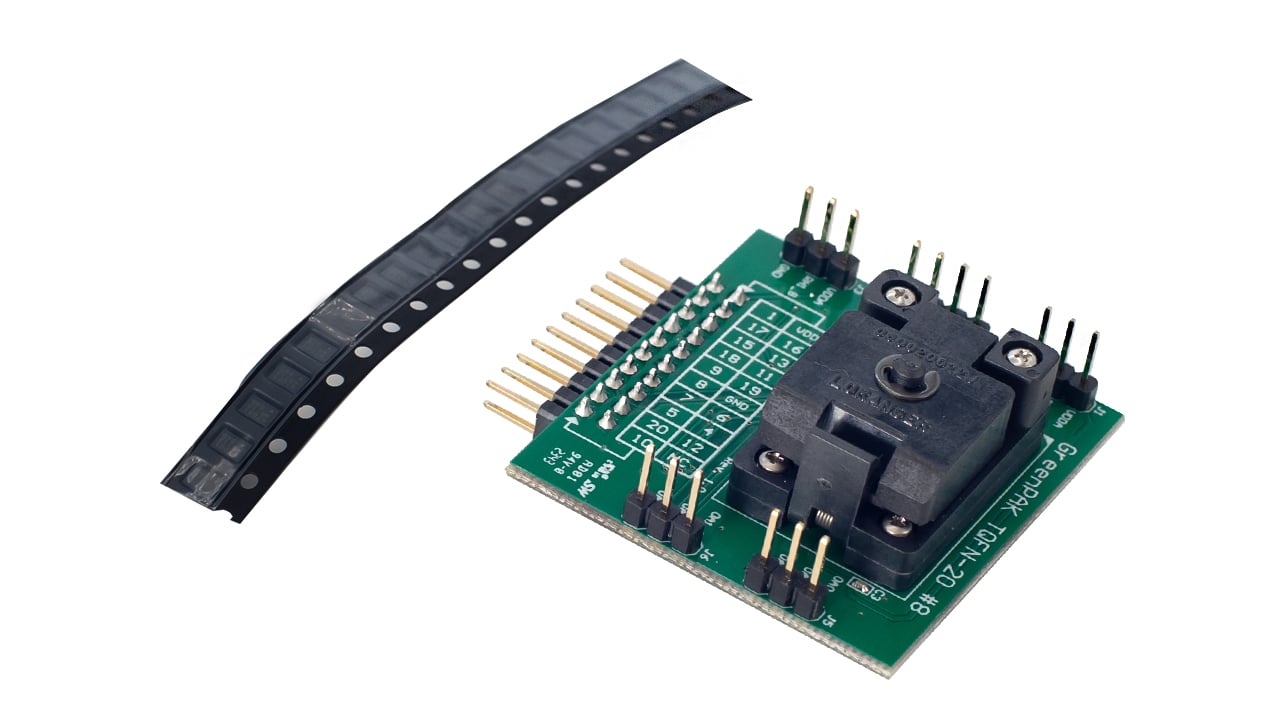

SLG47001V-SKT Socket Adapter Kit
SLG47001V-SKT Socket Adapter
SLG47001V-SKT Socket Adapter - Top
SLG47001V-SKT Socket Adapter - Bottom
SLG47001V-SKT Socket Adapter Kit
  • SLG4SA20AL-20x30 socket adapter
  • 50 SLG47001V samples
