Overview

The SLG47003V-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The SLG47003V-SKT kit includes the SLG4SA24AL-30x30 socket adapter and 50 SLG47003V GreenPAK programmable mixed-signal matrix IC samples.

Used with SLG46xxxV-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.

The SLG47003V GreenPAK programmable mixed-signal matrix provides a small, low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG47003V. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.

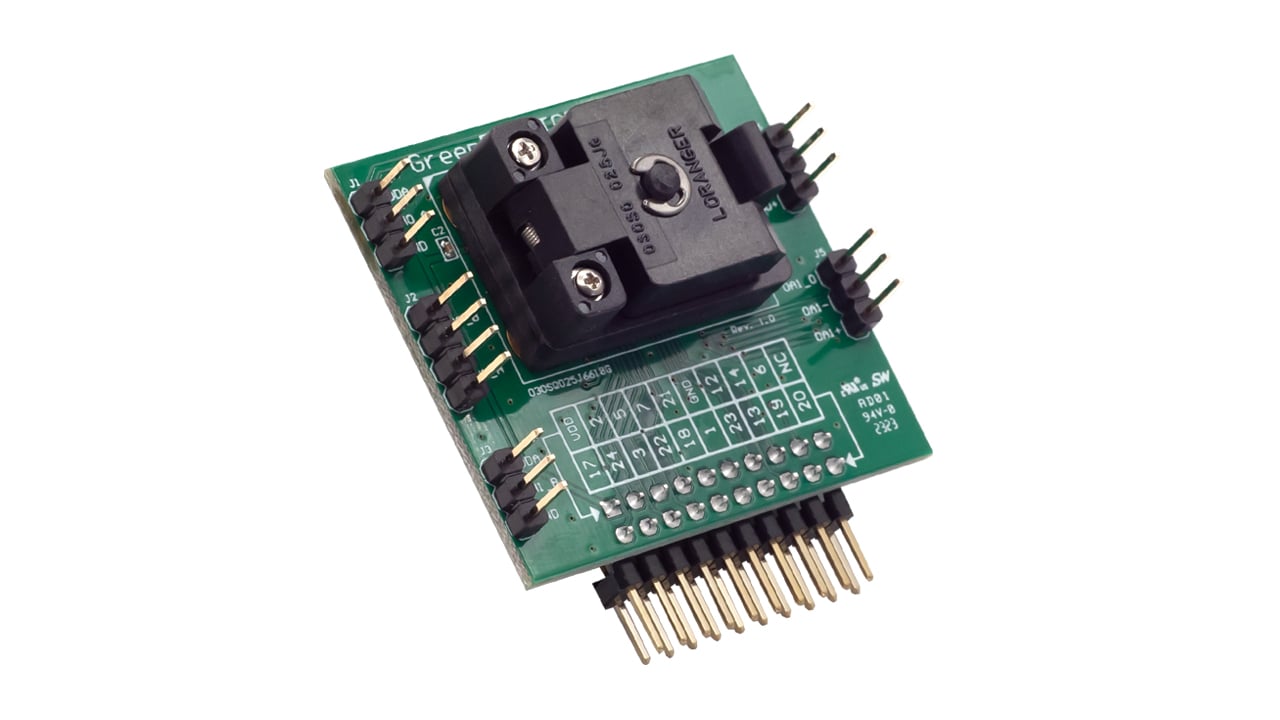

SLG47003V-SKT Socket Adapter

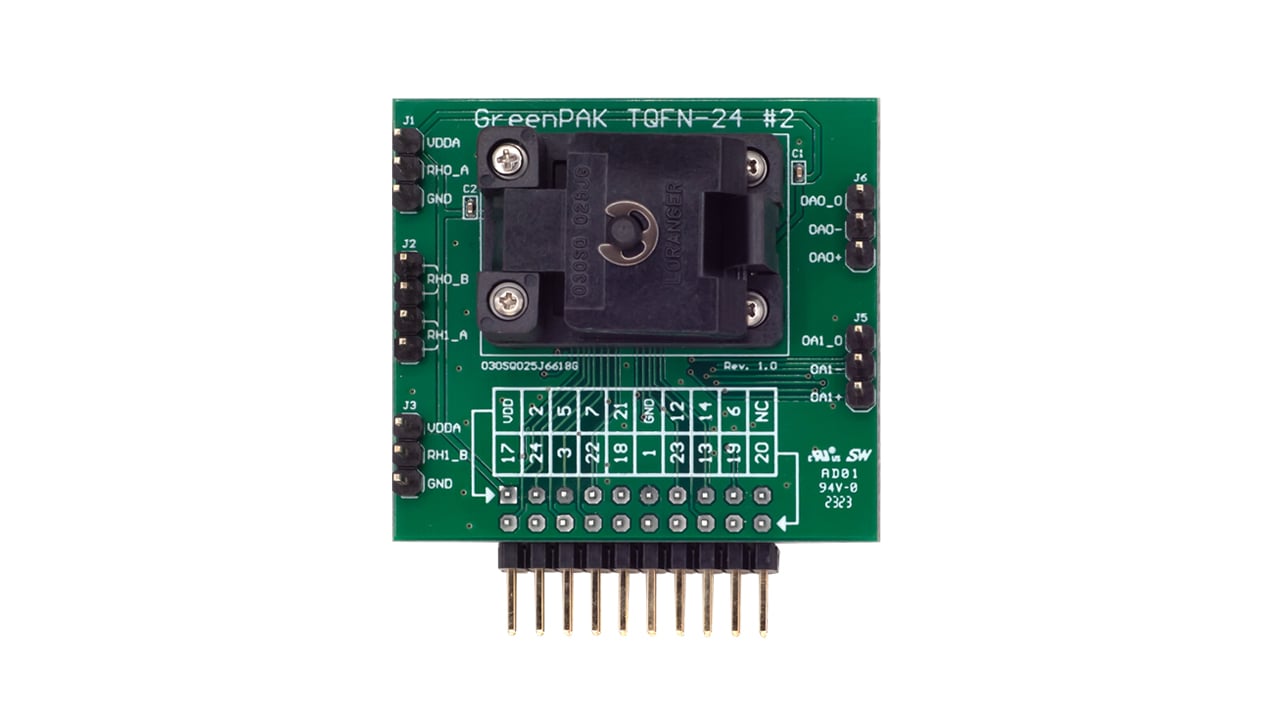

SLG47003V-SKT Socket Adapter - Top
SLG47003V-SKT Socket Adapter - Bottom
SLG47003V-SKT Socket Adapter Kit
SLG47003V-SKT Socket Adapter
SLG47003V-SKT Socket Adapter - Top
SLG47003V-SKT Socket Adapter - Bottom
SLG47003V-SKT Socket Adapter Kit
  • SLG4SA24AL-30x30 socket adapter
  • 50 SLG47003V samples

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
GreenPAK Advanced Development Platform User Guide
PDF 2.35 MB
Manual - Hardware
GreenPAK Socket Adapter TQFN-24 #2 User Manual
PDF 485 KB
Quick Start Guide
GreenPAK Lite Development Kit Quick Start Guide
PDF 197 KB
Manual - Development Tools
GreenPAK Lite Development Board Manual
PDF 1.32 MB
4 items

Design & Development

Software & Tools
Go Configure™ Software Hub
Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
Software Package Renesas
1 item
