Overview

The SLG46857AP-SKT is a socket adapter kit for use with the GreenPAK Advanced Development Board or GreenPAK Lite Development Board. The SLG46857AP-SKT kit includes the SLG4SA14-30x31 socket adapter and 50 SLG46857-A GreenPAK programmable mixed-signal matrix IC samples.

Used with SLG46xxxX-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.

The SLG46857-A provides a small, low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time programmable (OTP) Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins, and the macrocells of the SLG46857-A. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.

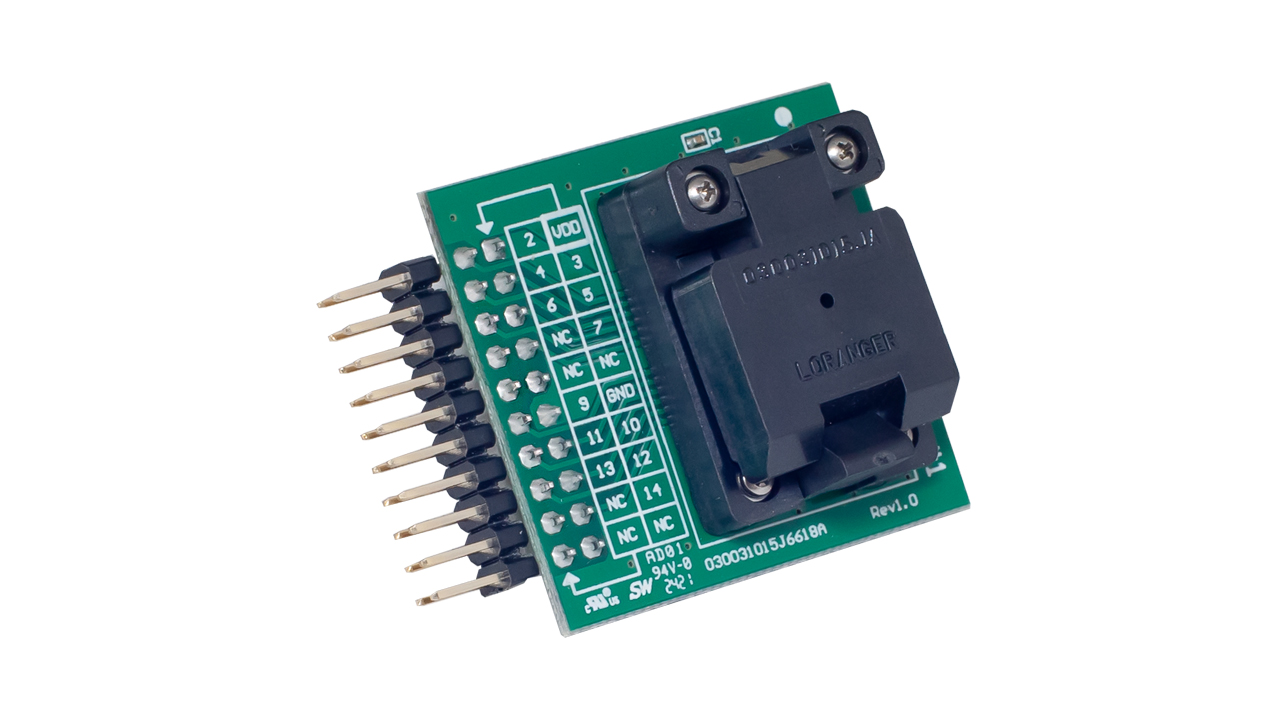

SLG46857AP-SKT Socket Adapter

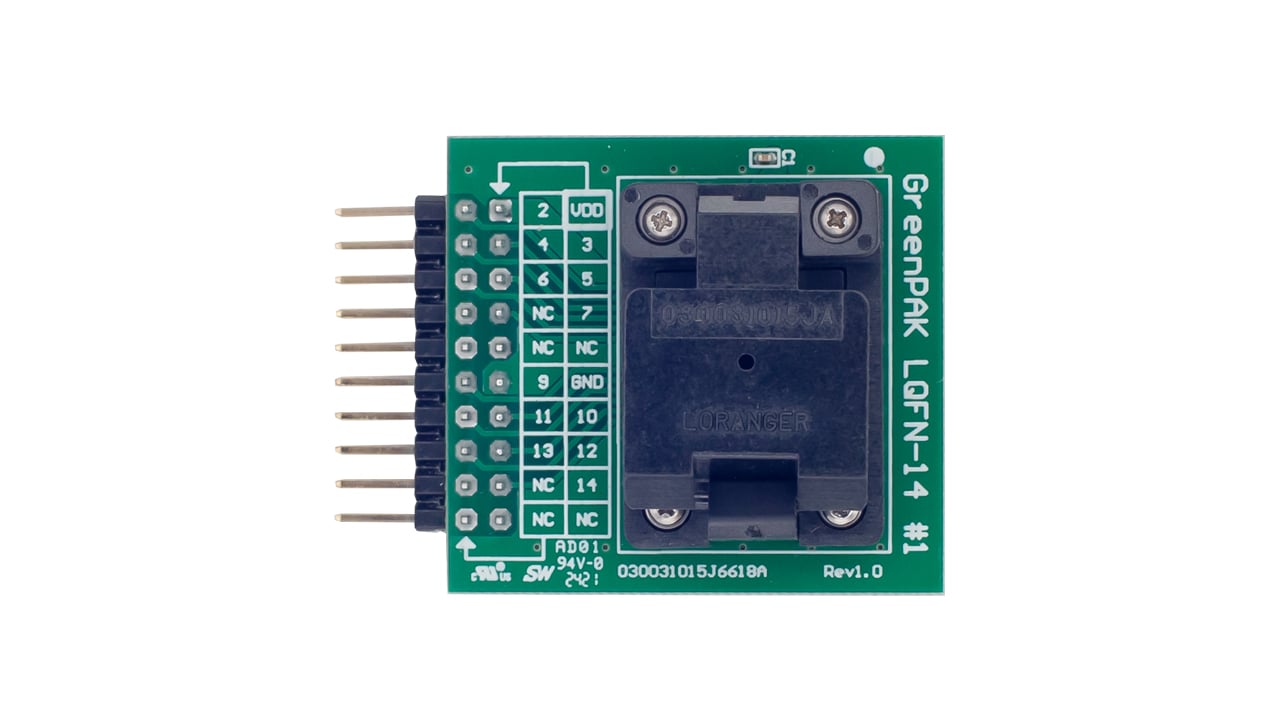

SLG46857AP-SKT Socket Adapter - Top
SLG46857AP-SKT Socket Adapter - Bottom
SLG46857AP-SKT Socket Adapter Kit
SLG46857AP-SKT Socket Adapter
SLG46857AP-SKT Socket Adapter - Top
SLG46857AP-SKT Socket Adapter - Bottom
SLG46857AP-SKT Socket Adapter Kit

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
GreenPAK Advanced Development Platform User Guide
PDF 2.35 MB
Quick Start Guide
GreenPAK Lite Development Kit Quick Start Guide
PDF 197 KB
Manual - Development Tools
GreenPAK Lite Development Board Manual
PDF 1.32 MB
3 items

Design & Development

Software & Tools
Go Configure™ Software Hub
Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
Software Package Renesas
1 item

Boards & Kits

SLG4DVKADV

SLG4DVKADV

Development
Learn More

GreenPAK Advanced Development Board

The GreenPAK Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK devices - for use with SLG46xxxX-SKT /...

Featured Documents:
GreenPAK Advanced Development Platform User Guide
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Launch Lab on the Cloud
GreenPAK Lite Development Board

SLG4DVKLITE

Development
Learn More

GreenPAK Lite Development Board

The GreenPAK Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in a pair with the Go Configure™ Software...

Featured Documents:
GreenPAK Lite Development Kit Quick Start Guide
GreenPAK Lite Development Board Manual
