GreenPAK™ SLG46855-EV Development Kit with Socket Adapter
The SLG46855EV-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK™ Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The...
Overview
Description
The SLG46855-EV provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG46855-EV. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

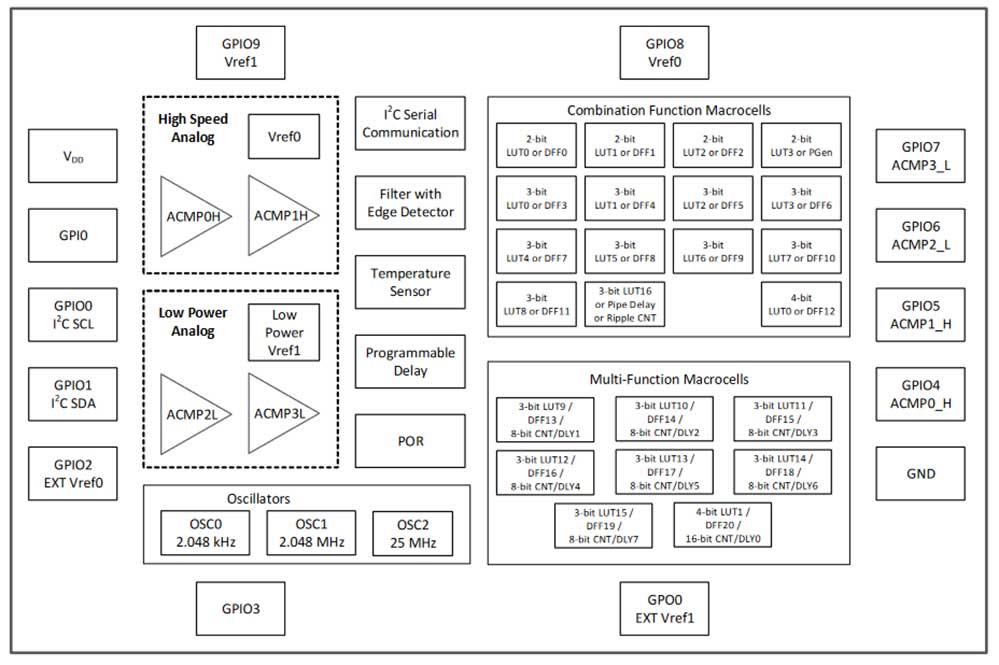

Features
- 2 high-speed general-purpose analog comparators (ACMPxH)
- 2 low power general-purpose analog comparators (ACMPxL)
- 2 voltage references (Vref)
- 2 Vref outputs
- 15 combination function macrocells
- 3 selectable DFF/LATCH or 2-bit LUTs
- 1 selectable programmable pattern generator or 2-bit LUT
- 9 selectable DFF/LATCH or 3-bit LUTs
- 1 selectable DFF/LATCH or 4-bit LUTs
- 8 multi-function macrocells
- 7 selectable DFF/LATCH or 3-bit LUTs + 8-bit delay/counters
- 1 selectable DFF/LATCH or 4-bit LUT + 16-bit delay/counter
- Serial communications
- I2C protocol interface
- Programmable delay with edge detector output
- Deglitch filter or edge detector
- 3 oscillators (OSC)
- 2.048kHz oscillator
- 2.048MHz oscillator
- 25MHz oscillator
- Analog temperature sensor
- Power-On Reset (POR)
- Read back protection (read lock)
- Power supply
- 2.5V (±8%) to 5.0V (±10%)
- Ambient operating temperature range: -40 °C to +105 °C
- RoHS compliant/Halogen-free
- Available package: 14-pin STQFN: 1.6mm x 2.0mm x 0.55mm, 0.4mm pitch
Comparison
Applications
Applications
- Outdoors electronics
- Factory automation
- E-bikes
- Power electronics
- EV charging stations
