GreenPAK SLG46855 Development Kit with Socket Adapter
The SLG46855V-SKT includes the SLG4SA14-16x20 socket adapter and 50 SLG46855V samples.
Overview
Description
The SLG46855 provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time programmable (OTP) Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins and the macrocells of the SLG46855. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.
Features
- Read Back Protection (Read Lock)
- Power Supply: 2.5 V (±8 %) to 5 V (±10 %)
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant / Halogen-Free

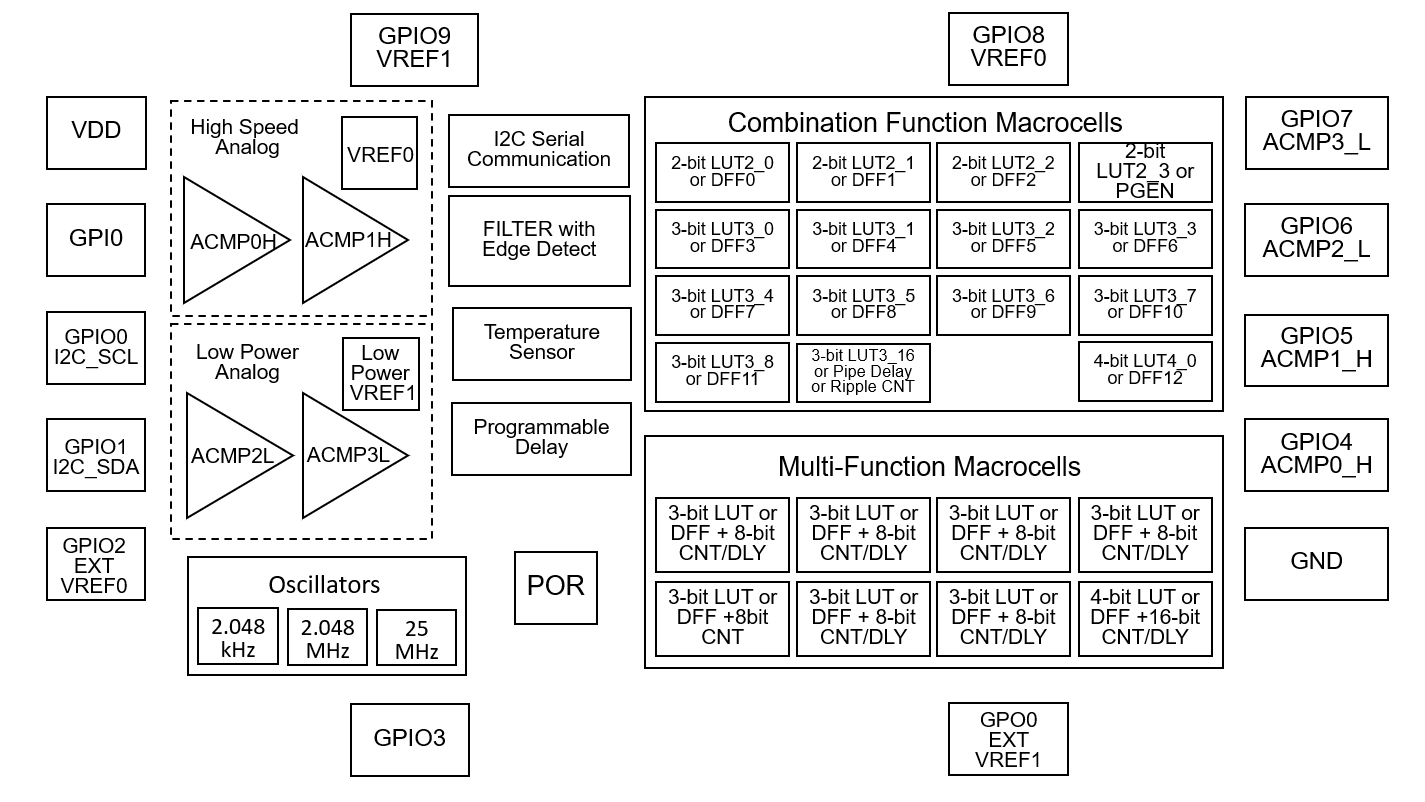

Macrocells Overview
- Two High Speed General Purpose Analog Comparators (ACMPxH);
- Two Low Power General Purpose Analog Comparators (ACMPxL);
- Two Voltage References (Vref):
- Two Vref Outputs;
- Fifteen Combination Function Macrocells:
- Three Selectable DFF/Latch or 2-bit LUTs;
- One Selectable Programmable Pattern Generator or 2-bit LUT;
- Nine Selectable DFF/Latch or 3-bit LUTs;
- One Selectable Pipe Delay or Ripple Counter or 3-bit LUT;
- One Selectable DFF/Latch or 4-bit LUTs;
- Eight Multi-Function Macrocells:
- Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters;
- One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter;
- Serial Communications:
- I2C Protocol Interface;
- Programmable Delay with Edge Detector Output;
- Deglitch Filter or Edge Detector;
- Three Oscillators (OSC):
- 2.048 kHz Oscillator;
- 2.048 MHz Oscillator;
- 25 MHz Oscillator;
- Analog Temperature Sensor;
- Power-On Reset (POR).
