Overview

Description

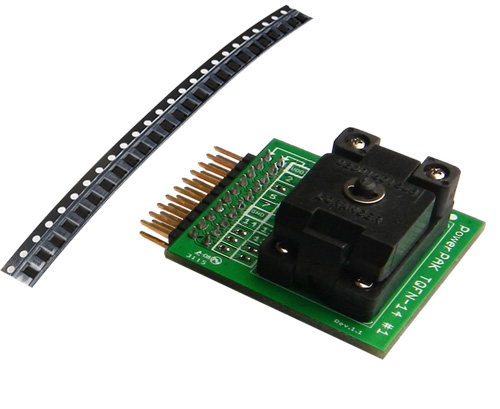

The SLG46117V-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The SLG46117V-SKT kit includes the SLG4SA14-16x25 socket adapter and 50 SLG46117V GreenPAK programmable mixed-signal matrix IC samples.

Used with SLG46xxxV-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.

The SLG46117 combines the functionality and versatility of a programmable mixed-signal matrix with the capabilities of Renesas' CuFET technology. Capable of integrating a number of common discrete ICs and passive components into a single device, the SLG46117 enables high power switching with a soft-start 1.25A P-Channel MOSFET with slew rate control and integrated discharge resistor.

Features

  • SLG4SA14-16x25 socket adapter
  • 50 SLG46117V IC samples

Applications

Documentation

Type Title Date
Manual - Development Tools PDF 2.35 MB
Quick Start Guide PDF 197 KB
Manual - Development Tools PDF 1.32 MB
3 items

Design & Development

Software & Tools

Software & Tools

Software title
Software type
Company
Go Configure Software Hub
Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
Software Package Renesas
