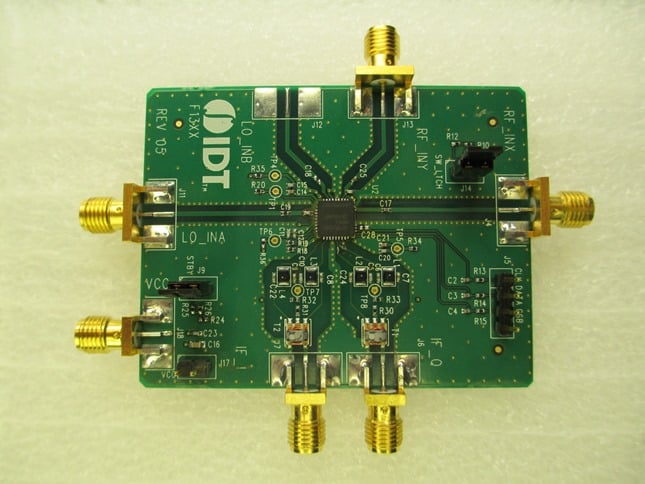

The F1358EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1358 DPD Demodulator. RF input, standby mode, and attenuator setting may be set using the F1358’s serial port input. The board also allows one to control the Standby mode using a separate STBY input. The board provides access to the part’s SW_LATCH input, which allows one to disable serial control writes to ENb (Standby) and RF SW bits (A0, A2).
Features
- SMA connectors for RF inputs, LO input, and I and Q outputs
- Power supply connected either through SMA connector or header pins
- RF input, standby mode, and attenuator setting controlled with serial port interface (SPI)
- Standby mode settable using STBY signal routed to header pin
