Overview

The F6921 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An external bias current provides gain control, standby mode, and temperature compensation.

The F6921 includes two independent gain/phase matched LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50Ω matched for ease of integration onto phased array antenna panels.

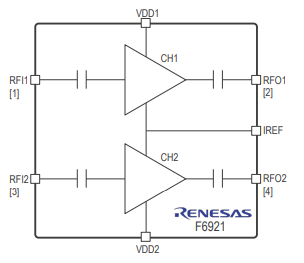

F6921 - Block Diagram
F6921 - Block Diagram
  • Frequency: 10.7GHz – 12.75GHz
  • Gain: 19.5dB
  • Noise Figure: 1.4dB
  • Output P1dB: -7dBm
  • Power Consumption: 12.5mW/ch
  • Channel Isolation: 37dB minimum
  • Supply Voltage: 0.9V – 1.0V
  • Common bias control input
  • Compact size for planar integration on λ/2 grid
  • 2.7mm × 2.7mm × 0.9mm, 23-pin BGA
  • -40 °C to +85 °C ambient operating temperature range

Documentation

= Featured Documentation
Type Title Date
Datasheet
F6921 Datasheet
PDF 1.12 MB
Product Change Notice
PCN# : 240009 Change in solder ball materials and substrate manufacturing location
PDF 1.47 MB
Guide
F6921 Additional Measurement Plots based on Iref
PDF 220 KB
Manual - Hardware
F69xx Evaluation Board Manual
Log in to Download PDF 481 KB
Guide
RF Product Selection Guide
PDF 2.24 MB
Product Brief
RF Amplifiers with Zero-Distortion Technology
PDF 983 KB
Product Brief
Beamforming Ics for Satcom and Radar Active Antennas
PDF 1.08 MB
Product Brief
Complete Line-up of mmWave Beamforming ICs
PDF 728 KB
8 items

Design & Development

Software Downloads
Type Title Date
Software & Tools - Other
F69xx EVB De-Embed Files
Log in to Download ZIP 947 KB
Software & Tools - Other
F69xx EVB Gerber Files
Log in to Download ZIP 201 KB
2 items
F6921 - Evaluation Board

F6921EVB

Evaluation
Learn More

Evaluation Board for F6921

The Renesas F6921EVB Evaluation Board is designed to reduce the learning cycle, build system-level confidence and enable a rapid time to market with the F6921 IC. The...

Featured Documents:
F69xx Evaluation Board Manual

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Temp. Range
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    F6921AVRI
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		FCCSP 23 I -40 to 85°C Tray 3 8.206 Get Samples,
    F6921AVRI8
    circleActive
    memory
    view_in_ar
    		FCCSP 23 I -40 to 85°C Reel 3
