F2932

Overview

The F2932 is a high-reliability, low-insertion loss, 50Ω single-pole double-throw (SP2T) absorptive RF switch designed for a wide range of markets and applications. This device covers a broad frequency range from 50MHz to 8000MHz, has an operating temperature range of -40 °C to +105 °C, and a wide supply voltage range of 2.7V to 5.5V. Designed for high-power handling, the F2932 has a P1 dB as high as 36.5dBm, supporting a peak operating power of 34dBm in the through path and a hot switching power of 27dBm into the terminated RF port. In addition to providing low-insertion loss, the F2932 also delivers high isolation and low distortion performance while providing a 50Ω termination to the unused RF ports.

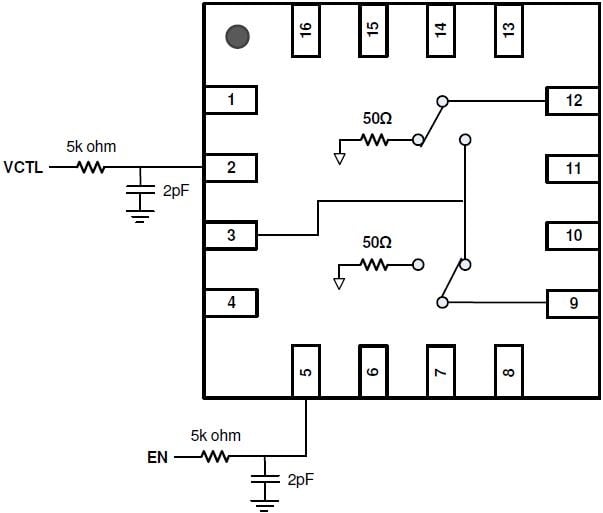

The F2932 uses a single positive supply voltage supporting three logic control pins using either 3.3V or 1.8V control logic. The ENABLE feature puts the part in all paths off state and disables the control of VCTL, when used.

Dual symmetric broadband, absorptive RF ports
High-performance RF at 2GHz
- RFC-RFX Isolation of 67dB
- Insertion Loss of 0.79dB
High continuous RF CW power handling
- Selected RF path: 34dBm
- Terminated RF path: 27dBm
High linearity:
- IIP2 of 111dBm
- IIP3 of 64dBm
3.3V and 1.8V compatible control logic
Operating temperature of -40 °C to +105 °C
Enable feature puts the part in all paths off state and disables the control of VCTL

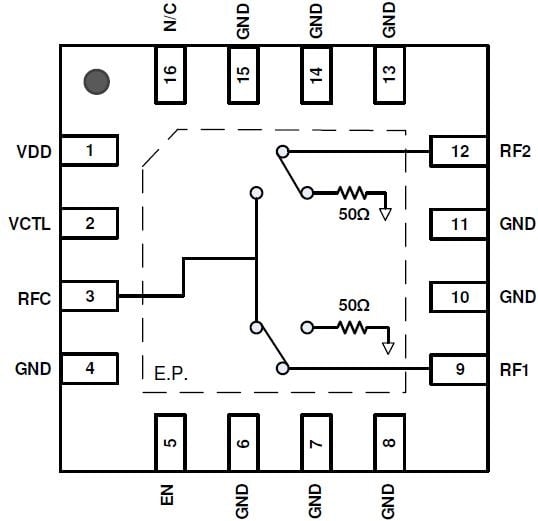

4mm x 4mm 16-pin QFN package

Documentation


Type	Title	Date
Datasheet	F2932 Datasheet REV1 PDF 4.75 MB	May 12, 2016
Product Change Notice	PCN# : 240016 Add JCET, China as an alternate assembly location on select VFQFPN packages PDF 764 KB	Oct 7, 2024
Guide	RF Product Selection Guide PDF 2.24 MB	Sep 27, 2023
Product Change Notice	PCN# : 220019 Add Alternate Assembly Locations on VFQFPN and FCLGA Packages PDF 771 KB	Jul 22, 2022
Product Brief	RF Switches Family PDF 438 KB	Jun 20, 2020
Product Change Notice	PCN#: TB1902-01 Add Alternate Test Location on Select Devices PDF 359 KB	Feb 8, 2019
Product Change Notice	PCN# : A1803-02 Correcting MSL level for Select Devices PDF 170 KB	Apr 8, 2018
7 items

Design & Development

F2932EVBI

Evaluation

Learn More

Evaluation Board for High Reliability SPDT Absorptive RF Switch

The F2932EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2932 RF switch.

“Thru” calibration connectors are conveniently...

Featured Documents:

F2932 Datasheet REV1

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

Processing table

	Pkg. Type	Lead Count (#)	Temp. Grade	Pb (Lead) Free	Function	Carrier Type	Moisture Sensitivity Level (MSL)	Price (USD) \| 1ku	Buy / Sample
(2) Active (0) Obsolete / NRND / LTB	VFQFPN	Maximum Minimum	P	Yes	Switch	Reel Tray	1	Maximum Price estimate for 1,000 units; pricing is subject to change. Minimum Price estimate for 1,000 units; pricing is subject to change.	Buy / Quote Get Samples
Part Number	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator
F2932NBGP circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available Buy Now	VFQFPN	16	P	Yes	Switch	Tray	1	2.14	Get Samples, Buy / Quote
F2932NBGP8 circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	VFQFPN	16	P	Yes	Switch	Reel	1	2.335	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Videos & Training

F2932 / F2933 High-isolation SPDT RF Switches

Operating at 50 to 8000 MHz, the F2932 and F2933 are silicon-based, low-distortion 50-ohm single-pole, double-throw (SPDT) RF switches. The devices offer one of the industry’s highest isolation values combined with low distortion and low insertion loss.

With industry-standard 4x4mm 16-pin QFN packages and drop-in compatible footprints and control, their rich combination of specs make the devices ideal for communications and public safety systems, radar and general purpose switching.

F2932 and F2933 offer similar RF performance, pin out and control, with the F2932 having an additional Enable/Disable feature allowing all RF paths to be put into an off state and disabling the VCTL feature.

For more information about IDT's leading RF portfolio, visit www.idt.com/go/RF.
